SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) U-Handle(Sr/Nr 36003113 and before) Parts Diagram

String Trimmer

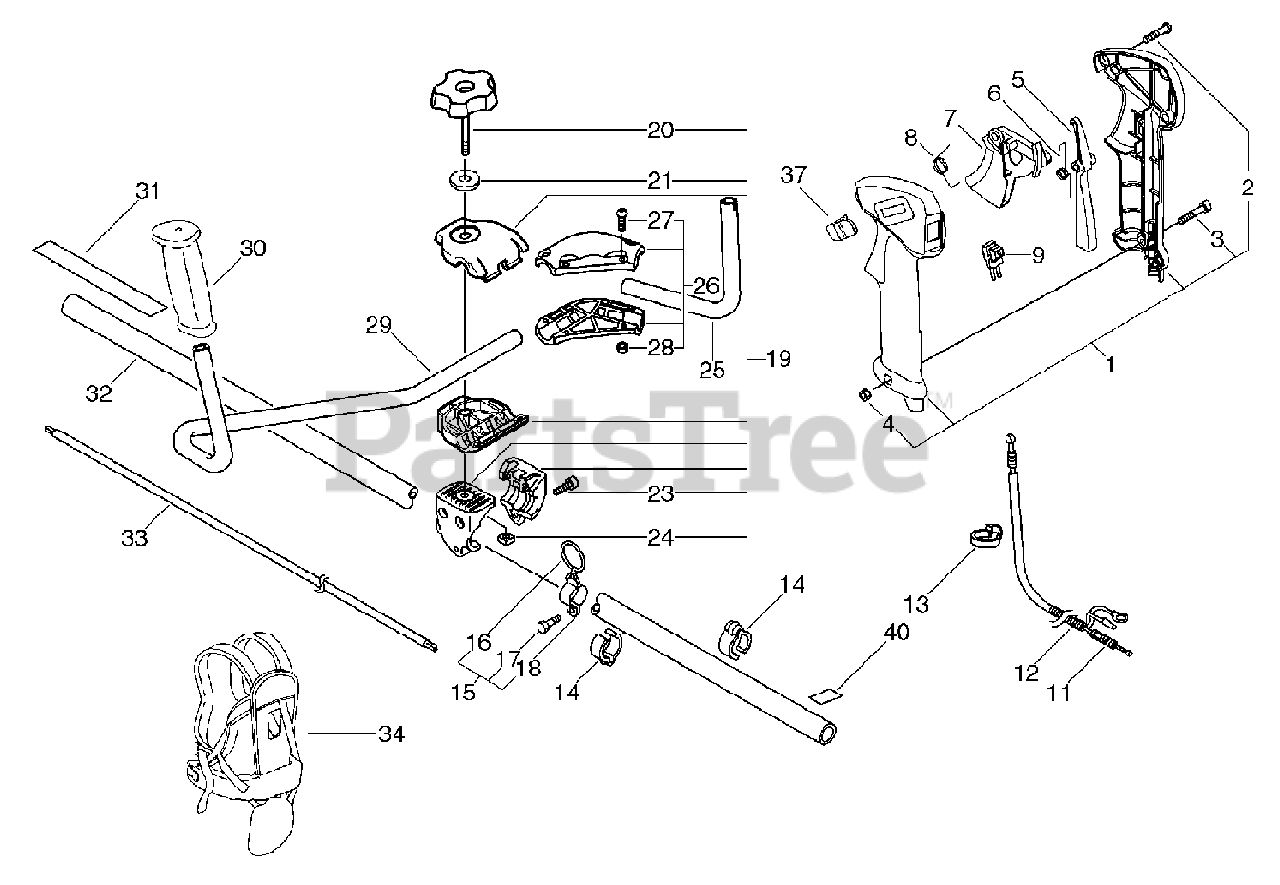

U-Handle(Sr/Nr 36003113 and before) Parts Diagram

  • Title

1

Echo 351102-47530

CONTROL HANDLE KIT

Note: Sr/Nr 003680 and before

$41.99

$

In Stock, only 2 left!

0

1

Echo 351102-47530

CONTROL HANDLE KIT

Note: Sr/Nr 003680 and before

$41.99

$

In Stock, only 2 left!

0

1

Echo P021002610

CONTROL HANDLE ASSY
(Superseded to P021002612)

Note: Sus. by P021-002612

$40.99

$

In Stock, only 2 left!

0

1

Echo P021002610

CONTROL HANDLE ASSY
(Superseded to P021002612)

Note: Sus. by P021-002612

$40.99

$

In Stock, only 2 left!

0

1

Echo P021002611

FRONT HANDLE GRIP ASSY
(Superseded to P021002612)

Note: Sus. by P021-002612

$40.99

$

In Stock, only 2 left!

0

1

Echo P021002611

FRONT HANDLE GRIP ASSY
(Superseded to P021002612)

Note: Sus. by P021-002612

$40.99

$

In Stock, only 2 left!

0

1

Echo P021002612

GRIP ASSY, THROTTLE

Note: Sr/Nr 003681 and after

$40.99

$

In Stock, only 2 left!

0

1

Echo P021002612

GRIP ASSY, THROTTLE

Note: Sr/Nr 003681 and after

$40.99

$

In Stock, only 2 left!

0

2

Echo 900246-03025

SCREW 3×25

Note: Sr/Nr 003680 and before

$0.99

$

Usually ships in 2-4 days

0

2

Echo 900246-03025

SCREW 3×25

Note: Sr/Nr 003680 and before

$0.99

$

Usually ships in 2-4 days

0

2

Echo 90024604016

SCREW 4×16

Note: Sus. by 900253-04016

$0.99

$

Usually ships in 2-4 days

0

2

Echo 90024604016

SCREW 4×16

Note: Sus. by 900253-04016

$0.99

$

Usually ships in 2-4 days

0

2

Echo 90025304016

SCREW 4×16

Note: Sr/Nr 003681 and after

$0.99

$

In Stock, Qty 10

0

2

Echo 90025304016

SCREW 4×16

Note: Sr/Nr 003681 and after

$0.99

$

In Stock, Qty 10

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 178012-05960

LOCKOUT, THROTTLE

Note: Sr/Nr 003680 and before

$6.99

$

In Stock, only 2 left!

0

5

Echo 178012-05960

LOCKOUT, THROTTLE

Note: Sr/Nr 003680 and before

$6.99

$

In Stock, only 2 left!

0

5

Echo C460000010

LOCKOUT, THROTTLE
(Superseded to C460000011)

Note: Sus. by C460-000011

$5.99

$

In Stock, only 2 left!

0

5

Echo C460000010

LOCKOUT, THROTTLE
(Superseded to C460000011)

Note: Sus. by C460-000011

$5.99

$

In Stock, only 2 left!

0

5

Echo C460000011

LOCKOUT, THROTTLE

Note: Sr/Nr 003681 and after

$5.99

$

In Stock, only 2 left!

0

5

Echo C460000011

LOCKOUT, THROTTLE

Note: Sr/Nr 003681 and after

$5.99

$

In Stock, only 2 left!

0

6

Echo 178013-35631

SPRING, TORSION

Note: Sr/Nr 003680 and before

$2.99

$

In Stock, Qty 5

0

6

Echo 178013-35631

SPRING, TORSION

Note: Sr/Nr 003680 and before

$2.99

$

In Stock, Qty 5

0

6

Echo V452000050

SPRING, TORSION

Note: Sr/Nr 003681 and after

$1.99

$

In Stock, Qty 5

0

6

Echo V452000050

SPRING, TORSION

Note: Sr/Nr 003681 and after

$1.99

$

In Stock, Qty 5

0

7

Echo 178010-05960

TRIGGER, THROTTLE

Note: Sr/Nr 003680 and before

$6.49

$

In Stock, only 2 left!

0

7

Echo 178010-05960

TRIGGER, THROTTLE

Note: Sr/Nr 003680 and before

$6.49

$

In Stock, only 2 left!

0

7

Echo C450000020

TRIGGER, THROTTLE
(Superseded to C450000021)

Note: Sus. by C450-000022

$13.99

$

In Stock, only 2 left!

0

7

Echo C450000020

TRIGGER, THROTTLE
(Superseded to C450000021)

Note: Sus. by C450-000022

$13.99

$

In Stock, only 2 left!

0

7

Echo C450000022

TRIGGER, THROTTLE

Note: Sr/Nr 003681 and after

$13.99

$

In Stock, only 2 left!

0

7

Echo C450000022

TRIGGER, THROTTLE

Note: Sr/Nr 003681 and after

$13.99

$

In Stock, only 2 left!

0

8

Echo V452000060

SPRING, TORSION

Note: Sr/Nr 003681 and after

$1.99

$

In Stock, Qty 5

0

8

Echo V452000060

SPRING, TORSION

Note: Sr/Nr 003681 and after

$1.99

$

In Stock, Qty 5

0

9

Echo 16340050330

IGNITION SWITCH ASSY

$

$

Currently unavailable

9

Echo 16340050330

IGNITION SWITCH ASSY

$

$

Currently unavailable

11

Echo 17800127230

CABLE, THROTTLE

Note: Sr/Nr 003680 and before

$22.99

$

Usually ships in 2-4 days

0

11

Echo 17800127230

CABLE, THROTTLE

Note: Sr/Nr 003680 and before

$22.99

$

Usually ships in 2-4 days

0

11

Echo V430000380

CABLE, THROTTLE

Note: Sus. by V430-000381

$

$

Currently unavailable

11

Echo V430000380

CABLE, THROTTLE

Note: Sus. by V430-000381

$

$

Currently unavailable

11

Echo V430000381

CABLE, THROTTLE
(Superseded to Discontinued)

Note: Sr/Nr 003681 and after

$

$

Not available

11

Echo V430000381

CABLE, THROTTLE
(Superseded to Discontinued)

Note: Sr/Nr 003681 and after

$

$

Not available

12

Echo 16211027230

PIPE

Note: Sus. by V475-003740

$2.99

$

Usually ships in 2-4 days

0

12

Echo 16211027230

PIPE

Note: Sus. by V475-003740

$2.99

$

Usually ships in 2-4 days

0

12

Echo V475003740

TUBE

$

$

Currently unavailable

12

Echo V475003740

TUBE

$

$

Currently unavailable

13

Echo 15911209960

CLIP
(Superseded to 15911209961)

Note: Sus. by 159112-09961

$4.99

$

Usually ships in 2-4 days

0

13

Echo 15911209960

CLIP
(Superseded to 15911209961)

Note: Sus. by 159112-09961

$4.99

$

Usually ships in 2-4 days

0

13

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

13

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

14

Echo 22492452930

CLIP 28 MM

$10.99

$

Usually ships in 2-4 days

0

14

Echo 22492452930

CLIP 28 MM

$10.99

$

Usually ships in 2-4 days

0

15

Echo 30120005230

HANGER KIT
(Superseded to P021012660)

Note: Sus. by P021-012660

$6.99

$

In Stock, only 3 left!

0

15

Echo 30120005230

HANGER KIT
(Superseded to P021012660)

Note: Sus. by P021-012660

$6.99

$

In Stock, only 3 left!

0

16

Echo 30101505330

RING, HARNESS

$4.99

$

Usually ships in 2-4 days

0

16

Echo 30101505330

RING, HARNESS

$4.99

$

Usually ships in 2-4 days

0

17

Echo 90010505012

BOLT 5×12

Note: Sus. by 91119-05012

$1.49

$

In Stock, only 3 left!

0

17

Echo 90010505012

BOLT 5×12

Note: Sus. by 91119-05012

$1.49

$

In Stock, only 3 left!

0

18

Echo 30121004630

HANGER, HARNESS
(Superseded to 30121004631)

$5.49

$

Usually ships in 2-4 days

0

18

Echo 30121004630

HANGER, HARNESS
(Superseded to 30121004631)

$5.49

$

Usually ships in 2-4 days

0

19

Echo 35130152930

HANDLE BRACKET KIT
(Superseded to P021012830)

Note: Drive Shaft Sr/Nr 003679 and before

$103.99

$

Usually ships in 2-4 days

0

19

Echo 35130152930

HANDLE BRACKET KIT
(Superseded to P021012830)

Note: Drive Shaft Sr/Nr 003679 and before

$103.99

$

Usually ships in 2-4 days

0

19

Echo P021002760

BRACKET ASSY, HANDLE

Note: Sus. by P021-002761

$

$

Currently unavailable

19

Echo P021002760

BRACKET ASSY, HANDLE

Note: Sus. by P021-002761

$

$

Currently unavailable

19

Echo P021002761

BRACKET ASSY, HANDLE
(Superseded to P021012740)

Note: Drive Shaft Sr/Nr 003680 and after Sus. by P021-012740

$110.99

$

In Stock, only 2 left!

0

19

Echo P021002761

BRACKET ASSY, HANDLE
(Superseded to P021012740)

Note: Drive Shaft Sr/Nr 003680 and after Sus. by P021-012740

$110.99

$

In Stock, only 2 left!

0

20

Echo 35142152130

BOLT 8×55

Note: Drive Shaft Sr/Nr 003679 and before

$3.49

$

Usually ships in 2-4 days

0

20

Echo 35142152130

BOLT 8×55

Note: Drive Shaft Sr/Nr 003679 and before

$3.49

$

Usually ships in 2-4 days

0

20

Echo V299000110

KNOB, SCREW M8

Note: Drive Shaft Sr/Nr 003680 and after

$15.99

$

Usually ships in 2-4 days

0

20

Echo V299000110

KNOB, SCREW M8

Note: Drive Shaft Sr/Nr 003680 and after

$15.99

$

Usually ships in 2-4 days

0

21

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

21

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

22

Echo 90016205020

BOLT 5×20

Note: Drive Shaft Sr/Nr 003679 and before

$1.49

$

In Stock, Qty 20+

0

22

Echo 90016205020

BOLT 5×20

Note: Drive Shaft Sr/Nr 003679 and before

$1.49

$

In Stock, Qty 20+

0

23

Echo 90016205030

BOLT 5×30

Note: Sus. by 91118-05030

$1.49

$

In Stock, only 2 left!

0

23

Echo 90016205030

BOLT 5×30

Note: Sus. by 91118-05030

$1.49

$

In Stock, only 2 left!

0

24

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

24

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

25

Echo 35121452931

HANDLEBAR, RIGHT

$50.99

$

Usually ships in 2-4 days

0

25

Echo 35121452931

HANDLEBAR, RIGHT

$50.99

$

Usually ships in 2-4 days

0

26

Echo 35120251430

BRACKET ASSY, HANDLE
(Superseded to P021012780)

Note: Sus. by P021-012780

$43.99

$

Usually ships in 2-4 days

0

26

Echo 35120251430

BRACKET ASSY, HANDLE
(Superseded to P021012780)

Note: Sus. by P021-012780

$43.99

$

Usually ships in 2-4 days

0

26

Echo P021012780

BRACKET ASSY, HANDLE
(Superseded to P021012781)

Note: Sus. by P021-012781

$43.99

$

Usually ships in 2-4 days

0

26

Echo P021012780

BRACKET ASSY, HANDLE
(Superseded to P021012781)

Note: Sus. by P021-012781

$43.99

$

Usually ships in 2-4 days

0

27

Echo 90016205020

BOLT 5×20

Note: Sus. by 91118-05020

$1.49

$

In Stock, Qty 20+

0

27

Echo 90016205020

BOLT 5×20

Note: Sus. by 91118-05020

$1.49

$

In Stock, Qty 20+

0

27

Echo 9111805020

BOLT 5×20

Note: Sus. by 91118-05022

$1.49

$

Usually ships in 2-4 days

0

27

Echo 9111805020

BOLT 5×20

Note: Sus. by 91118-05022

$1.49

$

Usually ships in 2-4 days

0

28

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

28

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

29

Echo 35101052931

HANDLEBAR, LEFT

$75.99

$

In Stock, only 2 left!

0

29

Echo 35101052931

HANDLEBAR, LEFT

$75.99

$

In Stock, only 2 left!

0

30

Echo 35131122430

GRIP, HANDLE
(Superseded to 35131122431)

Note: Drive Shaft Sr/Nr 003679 and before

$6.49

$

In Stock, only 3 left!

0

30

Echo 35131122430

GRIP, HANDLE
(Superseded to 35131122431)

Note: Drive Shaft Sr/Nr 003679 and before

$6.49

$

In Stock, only 3 left!

0

30

Echo C403000030

GRIP, HANDLE
(Superseded to C403000031)

Note: Sus. by C403-000031

$11.99

$

Usually ships in 2-4 days

0

30

Echo C403000030

GRIP, HANDLE
(Superseded to C403000031)

Note: Sus. by C403-000031

$11.99

$

Usually ships in 2-4 days

0

30

Echo C403000031

GRIP, HANDLE

Note: Drive Shaft Sr/Nr 003680 and after

$11.99

$

Usually ships in 2-4 days

0

30

Echo C403000031

GRIP, HANDLE

Note: Drive Shaft Sr/Nr 003680 and after

$11.99

$

Usually ships in 2-4 days

0

31

Echo 89061746830

LABEL - CAUTION
(Superseded to 89061743130)

Note: Sus. by 890617-43130

$27.99

$

Usually ships in 2-4 days

0

31

Echo 89061746830

LABEL - CAUTION
(Superseded to 89061743130)

Note: Sus. by 890617-43130

$27.99

$

Usually ships in 2-4 days

0

31

Echo 890617-43130

LABEL, CAUTION - ISO

$27.99

$

Usually ships in 2-4 days

0

31

Echo 890617-43130

LABEL, CAUTION - ISO

$27.99

$

Usually ships in 2-4 days

0

32

Echo 61020656930

MAIN PIPE ASSY

$250.99

$

Usually ships in 2-4 days

0

32

Echo 61020656930

MAIN PIPE ASSY

$250.99

$

Usually ships in 2-4 days

0

33

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

33

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

34

Echo 30100156831

HARNESS ASSY, SHOULDER
(Superseded to C062000184)

Note: Sus. by C062-000181

$68.99

$

Usually ships in 2-4 days

0

34

Echo 30100156831

HARNESS ASSY, SHOULDER
(Superseded to C062000184)

Note: Sus. by C062-000181

$68.99

$

Usually ships in 2-4 days

0

34

Echo C062000180

HARNESS, SHOULDER
(Superseded to C062000181)

Note: Sus. by C062-000181

$68.99

$

Usually ships in 2-4 days

0

34

Echo C062000180

HARNESS, SHOULDER
(Superseded to C062000181)

Note: Sus. by C062-000181

$68.99

$

Usually ships in 2-4 days

0

34

Echo C062000181

HARNESS, SHOULDER
(Superseded to C062000182)

Note: Sus. by C062-000182

$68.99

$

Usually ships in 2-4 days

0

34

Echo C062000181

HARNESS, SHOULDER
(Superseded to C062000182)

Note: Sus. by C062-000182

$68.99

$

Usually ships in 2-4 days

0

35

Echo 890157-39130

LABEL, STOP

Note: Sr/Nr 003680 and before

$

$

Not available

35

Echo 890157-39130

LABEL, STOP

Note: Sr/Nr 003680 and before

$

$

Not available

40

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

40

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0
