SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) U-Handle(Sr/Nr 36003114 and after) Parts Diagram

String Trimmer

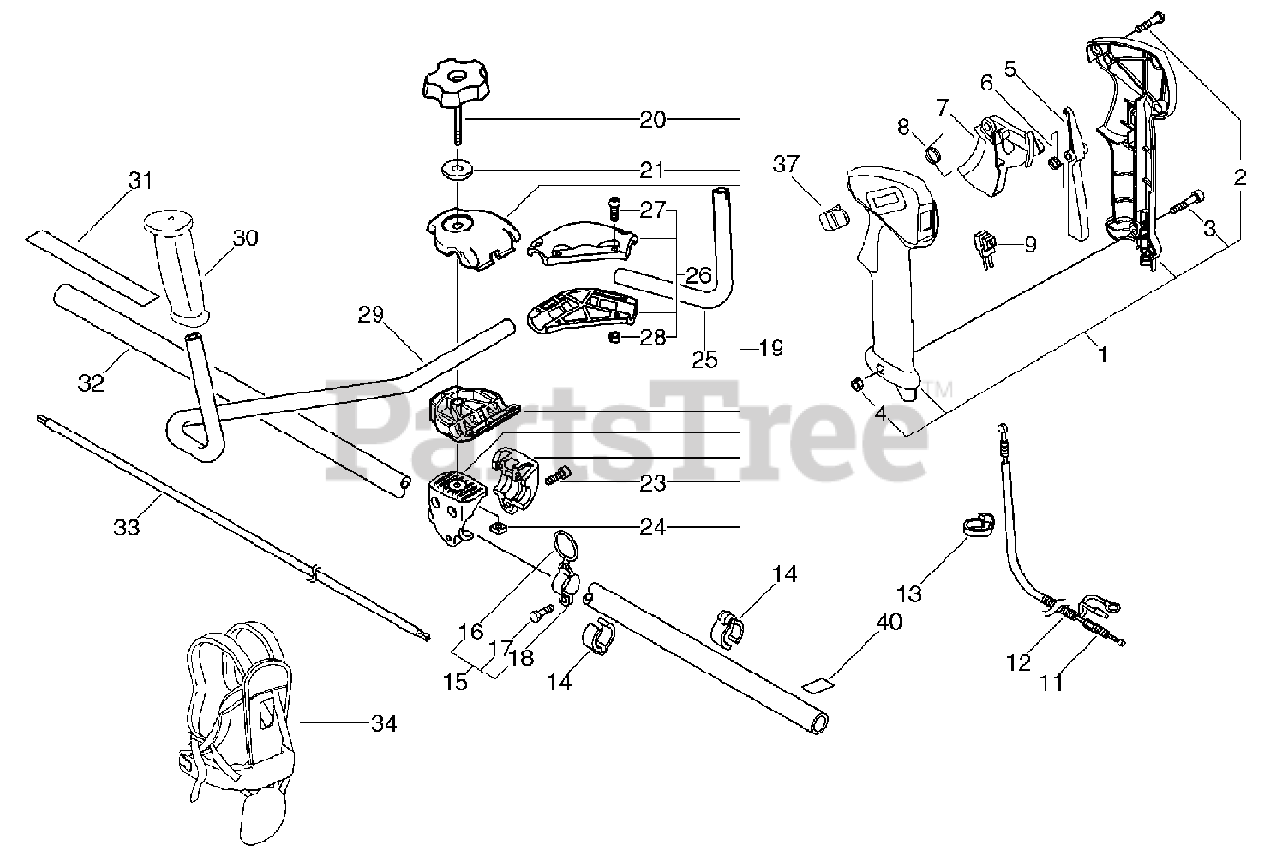

U-Handle(Sr/Nr 36003114 and after) Parts Diagram

  • Title

1

Echo P021002612

GRIP ASSY, THROTTLE

$40.99

$

In Stock, only 2 left!

0

1

Echo P021002612

GRIP ASSY, THROTTLE

$40.99

$

In Stock, only 2 left!

0

2

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 10

0

2

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 10

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo C460000011

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 2 left!

0

5

Echo C460000011

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 2 left!

0

6

Echo V452000130

SPRING, TORSION

$3.49

$

Usually ships in 2-4 days

0

6

Echo V452000130

SPRING, TORSION

$3.49

$

Usually ships in 2-4 days

0

7

Echo C450000022

TRIGGER, THROTTLE

$13.99

$

In Stock, only 2 left!

0

7

Echo C450000022

TRIGGER, THROTTLE

$13.99

$

In Stock, only 2 left!

0

8

Echo V452000060

SPRING, TORSION

$1.99

$

In Stock, Qty 5

0

8

Echo V452000060

SPRING, TORSION

$1.99

$

In Stock, Qty 5

0

9

Echo 16340050330

IGNITION SWITCH ASSY

$

$

Currently unavailable

9

Echo 16340050330

IGNITION SWITCH ASSY

$

$

Currently unavailable

11

Echo V430000381

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo V430000381

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

12

Echo V475003740

TUBE

$

$

Currently unavailable

12

Echo V475003740

TUBE

$

$

Currently unavailable

13

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

13

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

14

Echo 22492452930

CLIP 28 MM

$10.99

$

Usually ships in 2-4 days

0

14

Echo 22492452930

CLIP 28 MM

$10.99

$

Usually ships in 2-4 days

0

15

Echo P021012660

HANGER ASSY, HARNESS
(Superseded to P021012661)

$6.99

$

In Stock, only 3 left!

0

15

Echo P021012660

HANGER ASSY, HARNESS
(Superseded to P021012661)

$6.99

$

In Stock, only 3 left!

0

16

Echo 30101505330

RING, HARNESS

$4.99

$

Usually ships in 2-4 days

0

16

Echo 30101505330

RING, HARNESS

$4.99

$

Usually ships in 2-4 days

0

17

Echo 9111905012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

17

Echo 9111905012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

18

Echo 30121004630

HANGER, HARNESS
(Superseded to 30121004631)

$5.49

$

Usually ships in 2-4 days

0

18

Echo 30121004630

HANGER, HARNESS
(Superseded to 30121004631)

$5.49

$

Usually ships in 2-4 days

0

19

Echo P021012740

BRACKET ASSY, HANDLE
(Superseded to P021012741)

$110.99

$

In Stock, only 2 left!

0

19

Echo P021012740

BRACKET ASSY, HANDLE
(Superseded to P021012741)

$110.99

$

In Stock, only 2 left!

0

20

Echo V299000110

KNOB, SCREW M8

$15.99

$

Usually ships in 2-4 days

0

20

Echo V299000110

KNOB, SCREW M8

$15.99

$

Usually ships in 2-4 days

0

21

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

21

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

23

Echo 9111805030

BOLT 5×30

$1.49

$

Usually ships in 2-4 days

0

23

Echo 9111805030

BOLT 5×30

$1.49

$

Usually ships in 2-4 days

0

24

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

24

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

25

Echo 35121452931

HANDLEBAR, RIGHT

$50.99

$

Usually ships in 2-4 days

0

25

Echo 35121452931

HANDLEBAR, RIGHT

$50.99

$

Usually ships in 2-4 days

0

26

Echo P021012780

BRACKET ASSY, HANDLE
(Superseded to P021012781)

$43.99

$

Usually ships in 2-4 days

0

26

Echo P021012780

BRACKET ASSY, HANDLE
(Superseded to P021012781)

$43.99

$

Usually ships in 2-4 days

0

27

Echo 9111805020

BOLT 5×20

$1.49

$

Usually ships in 2-4 days

0

27

Echo 9111805020

BOLT 5×20

$1.49

$

Usually ships in 2-4 days

0

28

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

28

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

29

Echo 35101052931

HANDLEBAR, LEFT

$75.99

$

In Stock, only 2 left!

0

29

Echo 35101052931

HANDLEBAR, LEFT

$75.99

$

In Stock, only 2 left!

0

30

Echo C403000031

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

0

30

Echo C403000031

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

0

31

Echo 890617-43130

LABEL, CAUTION - ISO

$27.99

$

Usually ships in 2-4 days

0

31

Echo 890617-43130

LABEL, CAUTION - ISO

$27.99

$

Usually ships in 2-4 days

0

32

Echo 61020656930

MAIN PIPE ASSY

$250.99

$

Usually ships in 2-4 days

0

32

Echo 61020656930

MAIN PIPE ASSY

$250.99

$

Usually ships in 2-4 days

0

33

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

33

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

34

Echo C062000181

HARNESS, SHOULDER
(Superseded to C062000182)

Note: Sus. by C062-000182

$68.99

$

Usually ships in 2-4 days

0

34

Echo C062000181

HARNESS, SHOULDER
(Superseded to C062000182)

Note: Sus. by C062-000182

$68.99

$

Usually ships in 2-4 days

0

34

Echo C062000182

HARNESS, SHOULDER
(Superseded to C062000183)

$68.99

$

Usually ships in 2-4 days

0

34

Echo C062000182

HARNESS, SHOULDER
(Superseded to C062000183)

$68.99

$

Usually ships in 2-4 days

0

37

Echo C463000000

LATCH, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

37

Echo C463000000

LATCH, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

40

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

40

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0
