SRS-2100 - Echo Pole Saw Extension Parts Diagram

Pole Saw

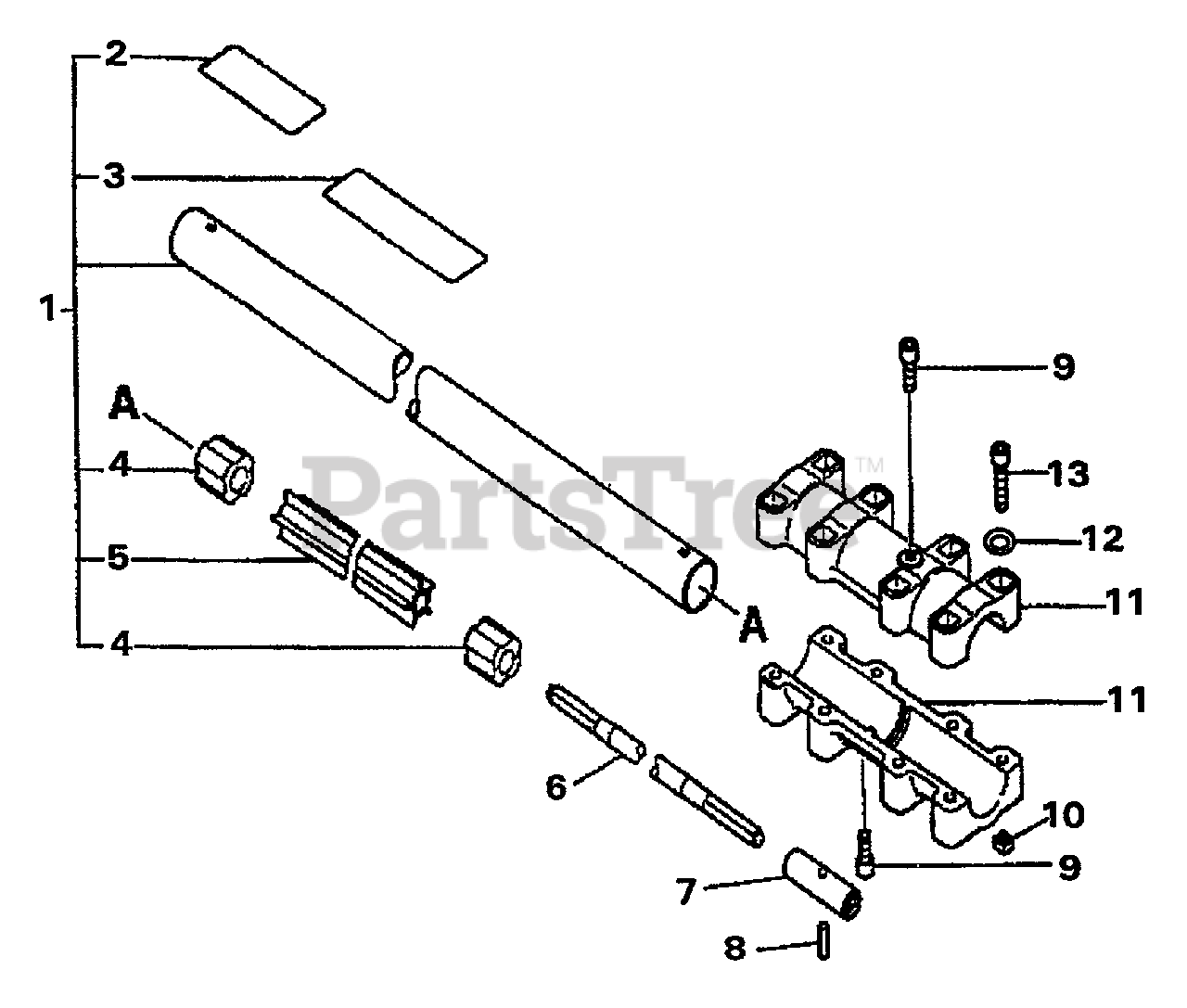

Extension Parts Diagram

  • Title

Echo 99945200030

2-1/2 FOOT EXTENSION

$

$

Not available

1

Echo 61020452130

MAIN PIPE ASSY

Note: INCLUDES ITEMS 2 - 5

$42.99

$

In Stock, only 2 left!

0

2

Echo 89017854331

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

3

Echo 89016055330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

4

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

5

Echo 61021752130

LINER - FLEXIBLE

$10.99

$

Usually ships in 2-4 days

0

6

Echo 61001352130

DRIVESHAFT - FLEXIBLE

$12.99

$

Usually ships in 2-4 days

0

7

Echo 61001252130

CONNECTOR, SHAFT
(Superseded to Discontinued)

$

$

Not available

8

Echo 90034030012

PIN - SPRING - 1/8 X 1/2

$0.99

$

Usually ships in 2-4 days

0

9

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

10

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 61061152130

HOLDER
(Superseded to Discontinued)

$

$

Not available

12

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 2 left!

0

13

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, only 3 left!

0
