SSZ-16BV - Scag Super Z Zero-Turn Mower, 16hp Vanguard (SN: 30000 - 39999) CUTTER DECK SMZ-48 Parts Diagram

Super Z Zero-Turn Mower, 16hp Vanguard

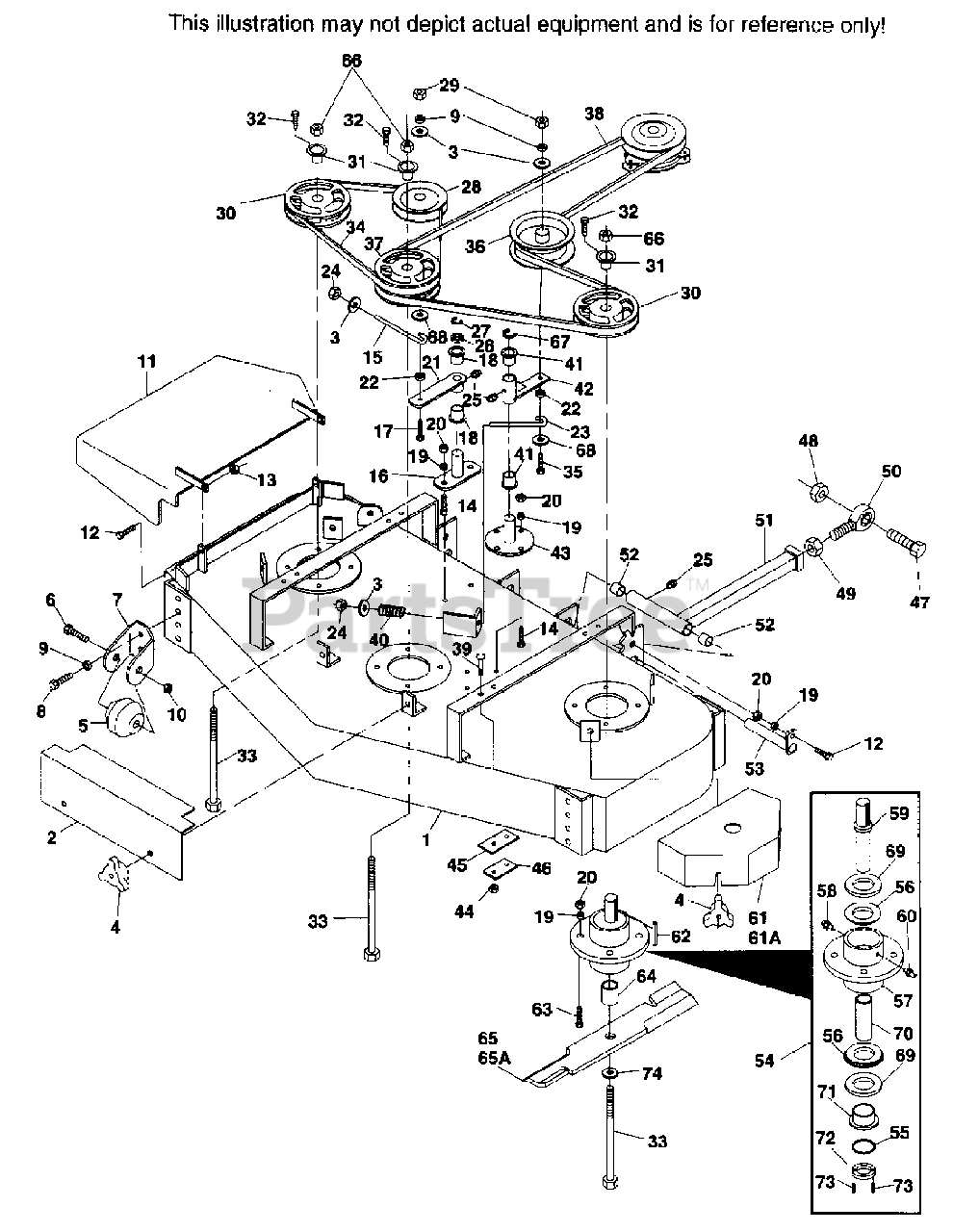

CUTTER DECK SMZ-48 Parts Diagram

  • Title

1

Scag 46478

CUTTER DECK(INCLUDES DECALS)

$2255.99

$

Usually ships in 2-12 days

0

2

Scag 421058

BELT COVER, FRONT

$47.99

$

Usually ships in 2-12 days

0

3

FLATWASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

5

Scag 48584

ANTI-SCALP WHEEL

$13.99

$

Usually ships in 2-12 days

0

6

HEX HEAD BOLT, 5/8-11 X 4-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 42882

ANTI-SCALP WHEEL BRACKET
(Superseded to 461086)

$67.99

$

Usually ships in 2-12 days

0

8

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

LOCKWASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

HEX NUT, 5/8-11 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

Scag 45331

DISCHARGE CHUTE
(Superseded to 461293)

$84.99

$

Usually ships in 2-12 days

0

12

HEX HEAD BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

Scag 44078

"J" ROD

$6.99

$

In Stock, only 2 left!

0

16

Scag 45037

IDLER PIVOT BASE

$31.99

$

Usually ships in 2-12 days

0

17

HEX HEAD BOLT, 3/8-16 X 2-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

Scag 48100-05

BUSHING

$0.99

$

In Stock, Qty 18

0

19

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

21

Scag 46081

IDLER ARM,(INCLUDES BUSHINGS & GREASE

$47.99

$

Usually ships in 2-12 days

0

22

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

23

Scag 43028

"J" ROD

$4.99

$

In Stock, only 2 left!

0

24

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

25

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

26

Scag 04041-08S

FLATWASHER, 3/4" SPECIAL

$0.99

$

In Stock, Qty 20+

0

27

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 10

0

28

Scag 48181

PULLEY, IDLER

$26.99

$

In Stock, Qty 16

0

29

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

Scag 48127

PULLEY(INCLUDES ITEMS 31 & 32)
(Superseded to 482744)

$

$

Not available

31

Scag 48141

TAPERED HUB

$30.99

$

In Stock, Qty 6

0

32

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

33

Scag 04001-41

HEX HEAD BOLT, 5/8-11 X 9-1/2"

$15.99

$

In Stock, Qty 20+

0

34

Scag 48087

BELT, RH BLADE DRIVE

$44.99

$

In Stock, only 1 left!

0

35

HEX HEAD BOLT, 3/8-16 X 4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

36

Scag 48550

PULLEY, IDLER - CUTTER ENGAGEMENT
(Superseded to 483210)

$56.99

$

In Stock, Qty 18

0

37

Scag 48412

PULLEY, DOUBLE(INCLUDES 31)
(Superseded to 48923)

$113.99

$

In Stock, only 1 left!

0

38

Scag 48799

BELT, BLADE DRIVE

$89.99

$

Usually ships in 2-12 days

0

39

CARRIAGE HEAD BOLT, 1/4-20 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

40

Scag 48807

SPRING, IDLER TENSION

$32.99

$

In Stock, only 1 left!

0

41

Scag 48100-02

BUSHING

$3.99

$

Usually ships in 2-12 days

0

42

Scag 46479

IDLER ARM(INCLUDES BUSHINGS & GREASE
(Superseded to 46749)

$139.99

$

Usually ships in 2-12 days

0

43

Scag 45329

IDLER PIVOT BASE

$40.99

$

Usually ships in 2-12 days

0

44

ELASTIC STOP NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

Scag 48817

RUBBER PAD

$7.99

$

Usually ships in 2-12 days

0

46

Scag 421232

BACK-UP PLATE

$14.99

$

Usually ships in 2-12 days

0

47

HEX HEAD BOLT, 5/8-11 X 3"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

48

ELASTIC STOP NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

HEX NUT, 5/8-18 UNF

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

50

Scag 48763

ROD END

$59.99

$

In Stock, Qty 10

0

51

Scag 46460

PUSH ARM(INCLUDES 25,49,50 & 52)
(Superseded to 461516)

$216.99

$

In Stock, only 4 left!

0

52

Scag 48100-06

BUSHING

$1.49

$

In Stock, Qty 9

0

53

Scag 45332

PUSH ARM SHAFT
(Superseded to 451240)

$53.99

$

In Stock, Qty 11

0

54

Scag 46400

CUTTER SPINDLE ASSEMBLY(COMPLETE,

$

$

Not available

55

Scag 04050-04

RETAINING RING, 1" EXTERNAL, INVERTED

$1.99

$

In Stock, Qty 7

0

56

Scag 48668

BEARING & CUP, TAPERED SPINDLE

$24.99

$

In Stock, Qty 20+

0

57

Scag 41008

SPINDLE HOUSING, TAPERED SPINDLE
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

58

Scag 48114-02

GREASE FITTING

$1.99

$

In Stock, only 3 left!

0

59

Scag 45391

SPINDLE SHAFT, TAPERED SPINDLE
(Superseded to 43275)

$68.99

$

Usually ships in 2-12 days

0

60

Scag 48667

RELIEF FITTING, TAPERED SPINDLE

$

$

Not available

61

Scag 421219

BELT COVER - RH

$124.99

$

Usually ships in 2-12 days

0

61A

Scag 421218

BELT COVER - LH

$124.99

$

Usually ships in 2-12 days

0

62

Scag 04063-08

KEY, 1/4 X 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

63

HEX HEAD BOLT, 5/16-18 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

64

Scag 43235

SPACER-TAPERED SPINDLE
(Superseded to 43591)

$11.99

$

Usually ships in 2-12 days

0

65

Scag 48110

CUTTER BLADE, 16-1/2" STANDARD
(Superseded to 481706)

$21.99

$

In Stock, Qty 20+

0

65A

Scag 48184

CUTTER BLADE, 16-1/2" HIGH LIFT
(Superseded to 481710)

$41.99

$

Usually ships in 2-12 days

0

66

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

67

Scag 04050-05

RETAINING RING 1-1/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

68

Scag 04041-12

FLATWASHER, 3/8"(3/8 X 1.5 X .06)

$0.99

$

In Stock, Qty 11

0

69

Scag 48681

SEAL, TAPERED CUTTER SPINDLE
(Superseded to 481024)

$4.99

$

In Stock, Qty 20+

0

70

Scag 43218

SPACER, TAPERED SPINDLE

$8.99

$

Usually ships in 2-12 days

0

71

Scag 43217

BUSHING, TAPERED SPINDLE

$15.99

$

Usually ships in 2-12 days

0

72

Scag 43201

1/4" BLADE SPACER, TAPERED SPINDLE

$20.99

$

Usually ships in 2-12 days

0

73

ROLL PIN, 1/8 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

74

Scag 04040-10

FLATWASHER, 5/8"(.688 X 1.75 X .134)

$0.99

$

In Stock, Qty 20+

0
