ST-5000 - Echo Snow Thrower (SN: 0001001 - 0001470) Discharge Chute, Chute Worm, Chute Control Parts Diagram

Snow Thrower

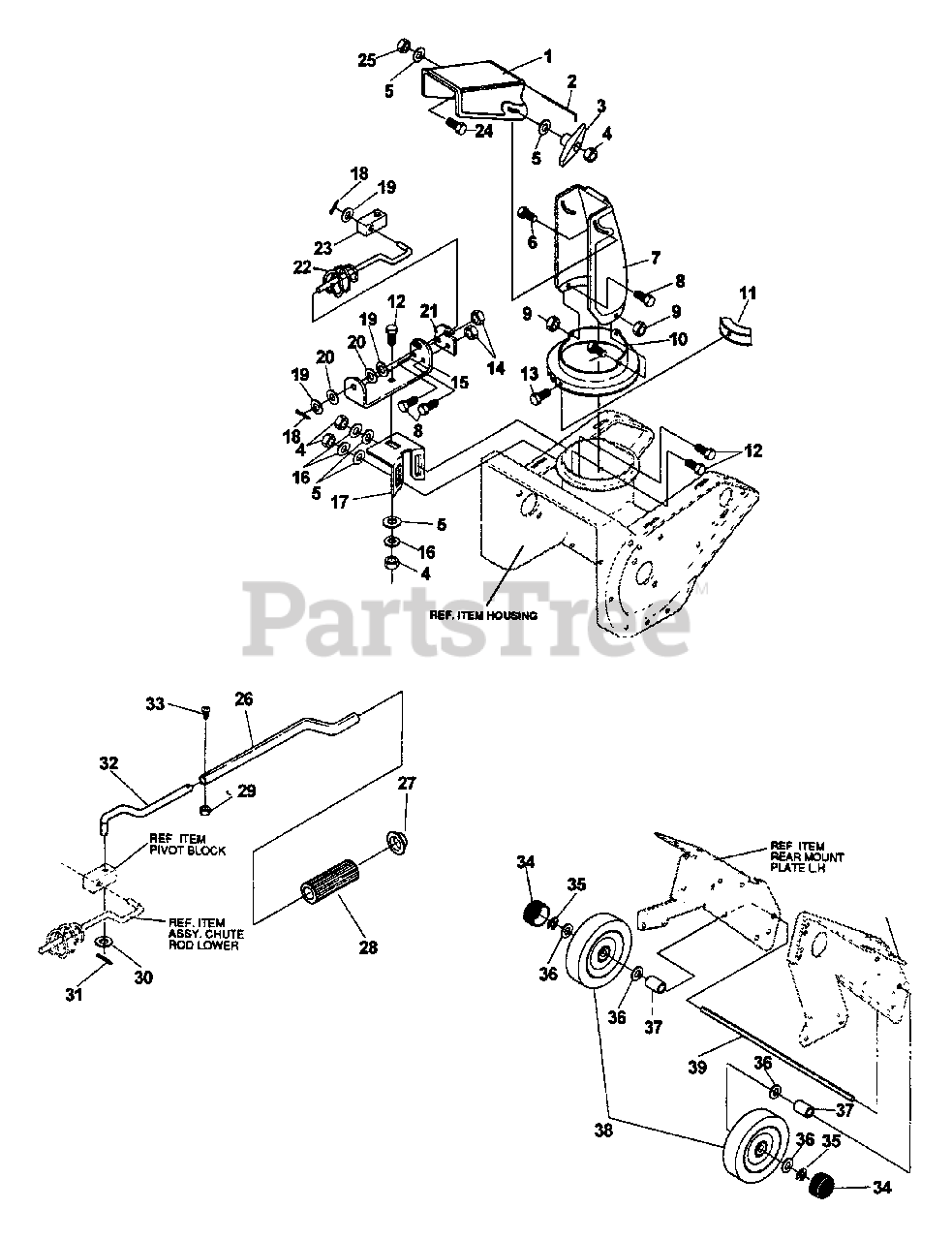

Discharge Chute, Chute Worm, Chute Control Parts Diagram

  • Title

1

Echo 14325847

CHUTE ASSY - UPPER

$5.99

$

Usually ships in 2-4 days

0

2

Echo 14308931

WIRE, HINGE 6.65 LONG SR
(Superseded to Discontinued)

$

$

Not available

3

Echo 14013527

KNOB, T 2 BLADE W/5/16-18 NUT

$2.99

$

In Stock, only 1 left!

0

4

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

5

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

6

Echo 14302842

BOLT - 5/16-18 X 1.25"
(Superseded to Discontinued)

$

$

Not available

7

Echo 14334234

CHUTE - LOWER
(Superseded to Discontinued)

$

$

Not available

8

Echo 14180016

SCREW - 1/4-20 X .50"

$0.99

$

Usually ships in 2-4 days

0

9

Echo 14046931

LOCKNUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

10

Echo 14302500

RING, LOWER CHUTE
(Superseded to 14307842)

$

$

Not available

11

Echo 14300790

CLIP, CHUTE RING PLASTIC
(Superseded to Discontinued)

$

$

Not available

12

Echo 14070993

BOLT - 5/16-18 X 3/4"
(Superseded to Discontinued)

$

$

Not available

13

Echo 14056962

SCREW - 1/4-14 X 5/8"

$1.49

$

In Stock, only 1 left!

0

14

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

15

Echo 14300728

BRACKET, CHUTE ROD
(Superseded to Discontinued)

$

$

Not available

16

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

17

Echo 14302505

BRACKET, WORM ADJUST
(Superseded to Discontinued)

$

$

Not available

18

Echo 14121222

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

19

Echo 14012452

WASHER - .40 X .75 X .025"
(Superseded to Discontinued)

$

$

Not available

20

Echo 14313431

WASHER - WAVE
(Superseded to Discontinued)

$

$

Not available

21

Echo 14307741

PLATE, CHUTE ROD
(Superseded to Discontinued)

$

$

Not available

22

Echo 14307742

CHUTE CONTROL ROD ASSY - LOWER
(Superseded to Discontinued)

$

$

Not available

23

Echo 14051564

BLOCK, PIVOT PLASTIC
(Superseded to Discontinued)

$

$

Not available

24

Echo 14578088

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

25

Echo 14001498

NUT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

26

Echo 14309449

ROD, UPPER CHUTE CONTROL

$18.99

$

Usually ships in 2-4 days

0

27

Echo 14331532

NUT - PUSH -- 3/8

Note: FITS 3/8

$0.99

$

Usually ships in 2-4 days

0

28

Echo 14307755

KNOB, CHUTE, CRANK

$3.99

$

Usually ships in 2-4 days

0

29

Echo 14314159

LOCKNUT - 10-32
(Superseded to Discontinued)

$

$

Not available

30

Echo 14012452

WASHER - .40 X .75 X .025"
(Superseded to Discontinued)

$

$

Not available

31

Echo 14121222

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

32

Echo 14307756

ROD, CHUTE CONTROL MIDDLE
(Superseded to Discontinued)

$

$

Not available

33

Echo 14314158

SCREW - 10-32 X 7/8"
(Superseded to Discontinued)

$

$

Not available

34

Echo 14577037

HUB CAP 3/20
(Superseded to Discontinued)

$

$

Not available

35

Echo 14577598

RING, RETAINING

$0.99

$

In Stock, only 1 left!

0

36

Echo 14120394

WASHER
(Superseded to Discontinued)

$

$

Not available

37

Echo 14309656

SPACER, SLEV .407X.63X.440

$4.49

$

Usually ships in 2-4 days

0

38

Echo 14325016

WHEEL ASSY

$15.99

$

Usually ships in 2-4 days

0

39

Echo 14307719

SHAFT, AXLE 5/21
(Superseded to Discontinued)

$

$

Not available
