ST 522 H - Husqvarna 22" Snow Blower (1998-01) Auger Housing Assembly Parts Diagram

22" Snow Blower

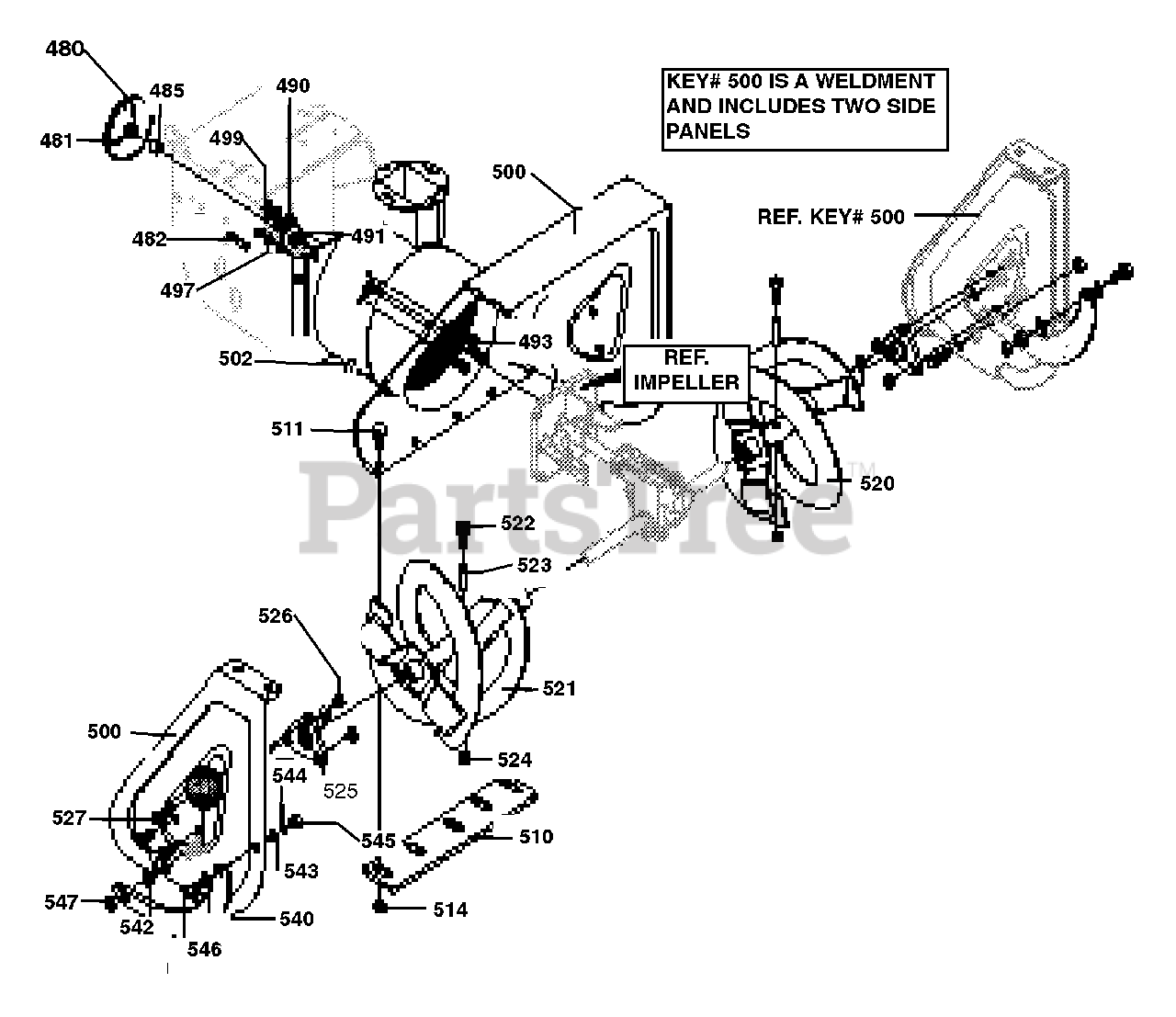

Auger Housing Assembly Parts Diagram

  • Title

480

Husqvarna 601002114

Pulley, V4L

$

$

Not available

481

Husqvarna 601002116

Screw, 5/16-18 x .50

$

$

Not available

482

Husqvarna 601001507

Key, Square

$

$

Not available

485

Husqvarna 601001610

Spacer, Slve .676 x 1.00 x .53

$

$

Not available

490

Husqvarna 601001509

Retainer, Ball Bearing

$

$

Not available

491

Husqvarna 601000539

Bearing, Ball
(Superseded to 601000565)

$

$

Not available

493

Husqvarna 601000073

Screw, 5/16-18 x .75

$

$

Not available

497

Husqvarna 601000023

Washer, .328 x .60 x .09

$

$

Not available

499

Husqvarna 601000012

Nut, 5/16-18

$

$

Not available

500

Husqvarna 601002340

Housing, Assy

$

$

Not available

502

Husqvarna 601001004

Ratchet Fastener

$

$

Not available

510

Husqvarna 601002118

Blade, Scraper 22"

$

$

Not available

511

Husqvarna 601002341

Carr. Bolt, 1/4-20 x .75
(Superseded to 601002119)

$

$

Not available

514

Husqvarna 601002342

Nut, 1/4-20 Whiz-loc

$

$

Not available

520

Husqvarna 601002343

Auger, Assy LH

$

$

Not available

521

Husqvarna 601002344

Auger, Assy RH

$

$

Not available

522

Husqvarna 601000897

Screw, 1/4-20 x 1.75

$

$

Not available

523

Husqvarna 601001517

Spacer, Slve .250 x .47 x .20

$5.99

$

In Stock, Qty 6

0

524

Husqvarna 601002318

Nut, 1/4-20

$7.99

$

In Stock, only 2 left!

0

525

Husqvarna 601002122

Bearing, Flange

$

$

Not available

526

Husqvarna 601002123

Nut, 5/16-18

$

$

Not available

527

Husqvarna 601002124

Screw, 5/16-18 x .75

$

$

Not available

540

Husqvarna 601002125

Skid

$

$

Not available

541

Husqvarna 601001411

Bolt, 5/16-18 x .75

$

$

Not available

542

Husqvarna 601000669

Washer, Flat

$

$

Not available

543

Husqvarna 601000019

Washer, Flat

$3.49

$

In Stock, only 1 left!

0

544

Husqvarna 601000023

Washer, Splitlock

$

$

Not available

545

Husqvarna 601000012

Nut, 5/16-18

$

$

Not available

546

Husqvarna 601000073

Screw, 5/16-18 x .75

$

$

Not available

547

UNKNOWN

$

$

Not available

647

Husqvarna 601002123

Nut, 5/16-18, HXWDFLLK

$

$

Not available
