SV600-0009 - Kohler Courage Single Engine, Made for MTD, 20hp, 14.9kW Ignition/Electrical 5-20-6 Parts Diagram

Courage Single Engine, Made for MTD, 20hp, 14.9kW

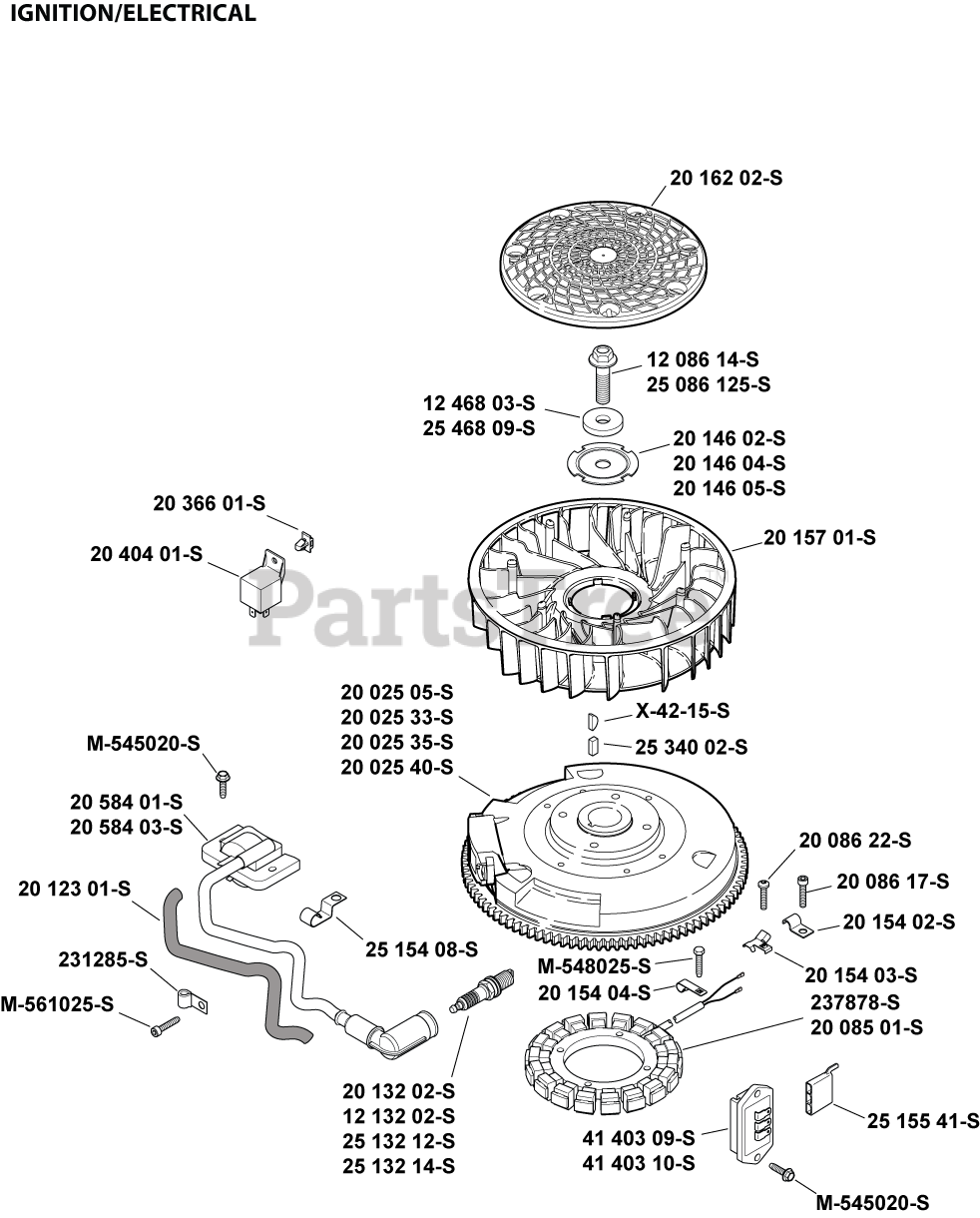

Ignition/Electrical 5-20-6 Parts Diagram

  • Title

2016202-S

Kohler 20 162 02-S

SCREEN, GRASS

$7.99

$

In Stock, only 2 left!

0

1208614-S

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

1246803-S

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

2014602-S

Kohler 20 146 02-S

PLATE, FAN MOUNTING-USE 20 146 05-S
(Superseded to 20 146 05-S)

$2.99

$

In Stock, only 2 left!

0

2015701-S

Kohler 20 157 01-S

FAN

$24.99

$

In Stock, only 2 left!

0

X-42-15-S

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

2002505-S

Kohler 20 025 05-S

FLYWHEEL ASSY - USE 20 025 40-S
(Superseded to 20 025 44-S)

$251.99

$

In Stock, only 1 left!

0

237878-S

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (INCLUDES 25 452 01-S)

$149.99

$

In Stock, Qty 11

0

236602-S

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, only 2 left!

0

M-545020-S

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

4140309-S

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$126.99

$

Usually ships in 2-5 days

0

2015402-S

Kohler 20 154 02-S

CLIP, WIRE

$2.49

$

Usually ships in 2-5 days

0

2008617-S

Kohler 20 086 17-S

SCREW - USE M-548025-S
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 2 left!

0

1213202-S

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

231285-S

Kohler 231285-S

CLIP, CABLE

$7.49

$

Usually ships in 2-5 days

0

2058401-S

Kohler 20 584 01-S

MODULE, IGNITION-USE 20 584 03-S
(Superseded to 20 584 03-S)

$35.99

$

In Stock, Qty 7

0

M-561025-S

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

In Stock, only 3 left!

0

2017602-S

Kohler 20 176 02-S

HARNESS, WIRING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
