SV720-0013 - Kohler Courage Twin Engine, Made for Troy-Bilt, 23hp, 17.2kW Ignition/Charging Group 5-32-12 Parts Diagram

Courage Twin Engine, Made for Troy-Bilt, 23hp, 17.2kW

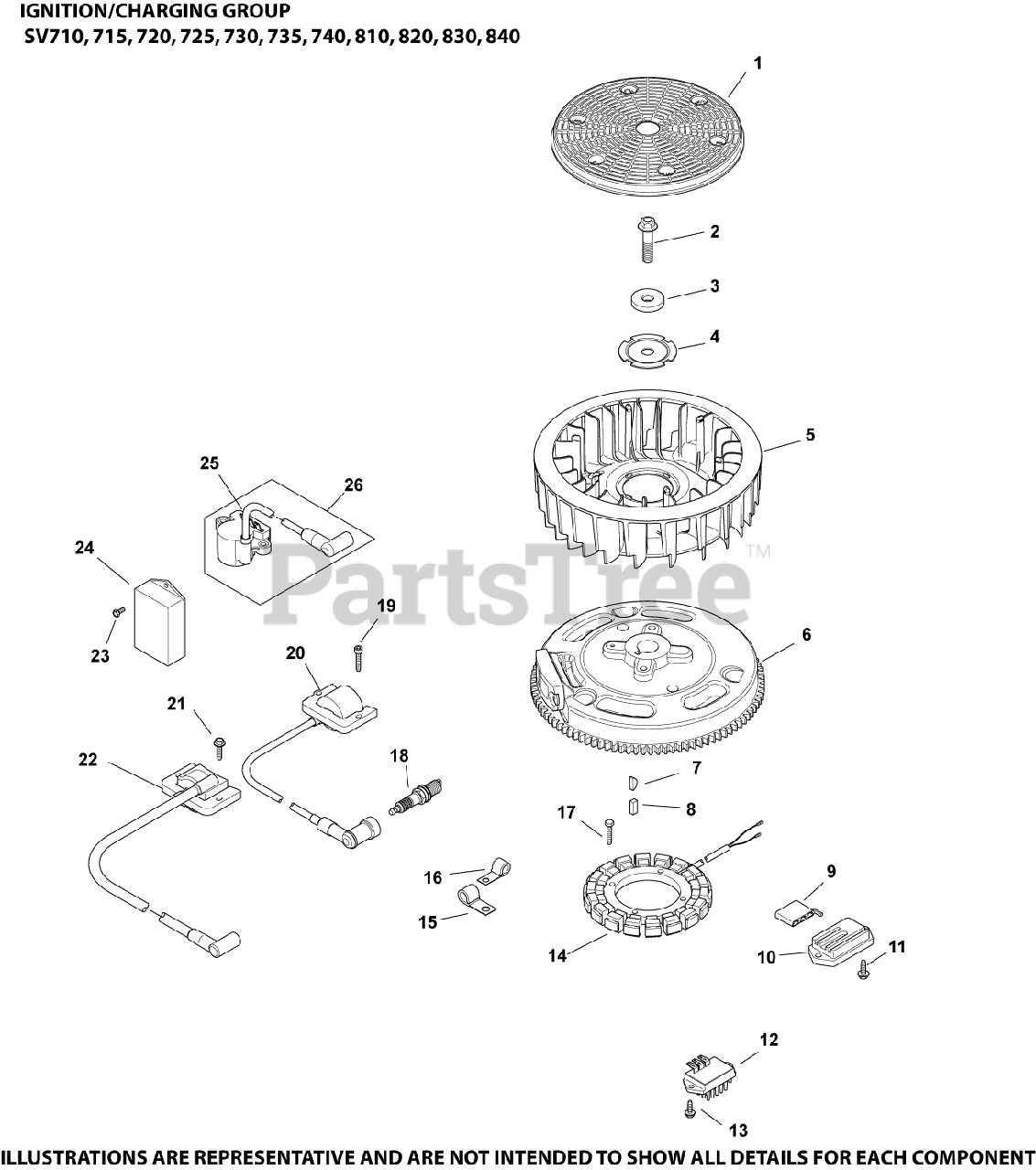

Ignition/Charging Group 5-32-12 Parts Diagram

  • Title

1

Kohler 32 162 03-S

SCREEN, GRASS

$4.99

$

In Stock, Qty 5

0

2

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 4 left!

0

3

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

Usually ships in 2-5 days

0

4

Kohler 20 146 05-S

PLATE, FAN MOUNTING

$2.99

$

In Stock, only 2 left!

0

5

Kohler 32 157 01-S

FAN

$

$

Not available

6

Kohler 32 025 16-S

FLYWHEEL ASSEMBLY - USE 32 025 22-S
(Superseded to 32 025 22-S)

$346.99

$

In Stock, only 2 left!

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 5

0

9

Kohler 25 155 41-S

CONNECTOR

$7.99

$

In Stock, only 3 left!

0

10

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$105.99

$

In Stock, Qty 6

0

11

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 12

0

14

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 6

0

17

Kohler 20 086 22-S

SCREW - USE M-548025-S
(Superseded to M-548025-S)

$2.49

$

In Stock, only 4 left!

0

18

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

21

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, only 3 left!

0

22

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

3217614-S

Kohler 32 176 14-S

KIT, WIRE HARNESS - DISCONTINUED

Note: NOT ILLUSTRATED (After S/N 3626800003)

$

$

Not available

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0
