SV740-0040 - Kohler Courage Twin Engine, Made for Husqvarna, 27hp, 20.1kW Lubrication Group 3-32-7 Parts Diagram

Courage Twin Engine, Made for Husqvarna, 27hp, 20.1kW

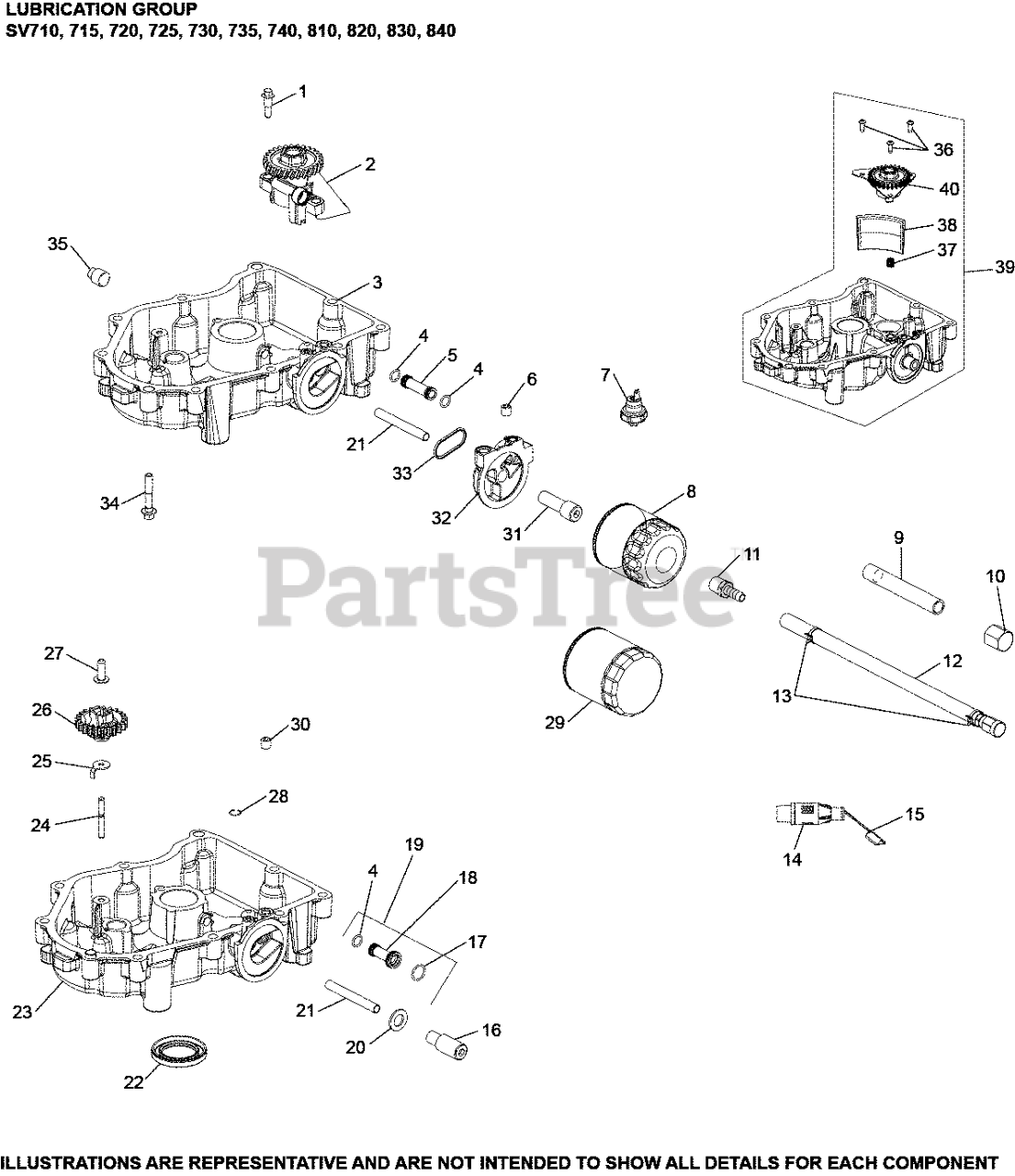

Lubrication Group 3-32-7 Parts Diagram

  • Title

1

Kohler 32 086 01-S

SCREW, SHD THD FRM M6X.0X6.5

$2.99

$

In Stock, only 1 left!

0

2

Kohler 32 393 10-S

PUMP ASSEMBLY, OIL - DISCONTINUED

$

$

Not available

3

Kohler 32 199 04-S

OIL PAN ASSEMBLY-USE 32 199 14-S
(Superseded to 32 199 20-S)

$

$

Not available

4

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 3 left!

0

5

Kohler 32 123 03-S

TUBE, OIL FEED

$2.99

$

Usually ships in 2-5 days

0

6

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

21

Kohler 32 123 01-S

TUBE, OIL FEED - FILTER TO PAN

$

$

Not available

22

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

24

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 6

0

25

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 1 left!

0

26

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, only 1 left!

0

27

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 13

0

29

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

31

Kohler 32 136 03-S

NIPPLE, OIL FILTER

$9.49

$

Usually ships in 2-5 days

0

32

Kohler 32 029 07-S

ADAPTER, OIL FILTER -USE 32 029 10-S
(Superseded to 32 029 16-S)

$

$

Not available

33

Kohler 32 153 04-S

O-RING, OIL FILTER ADAPTER

$2.99

$

In Stock, only 4 left!

0

34

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 19

0

35

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, Qty 13

0
