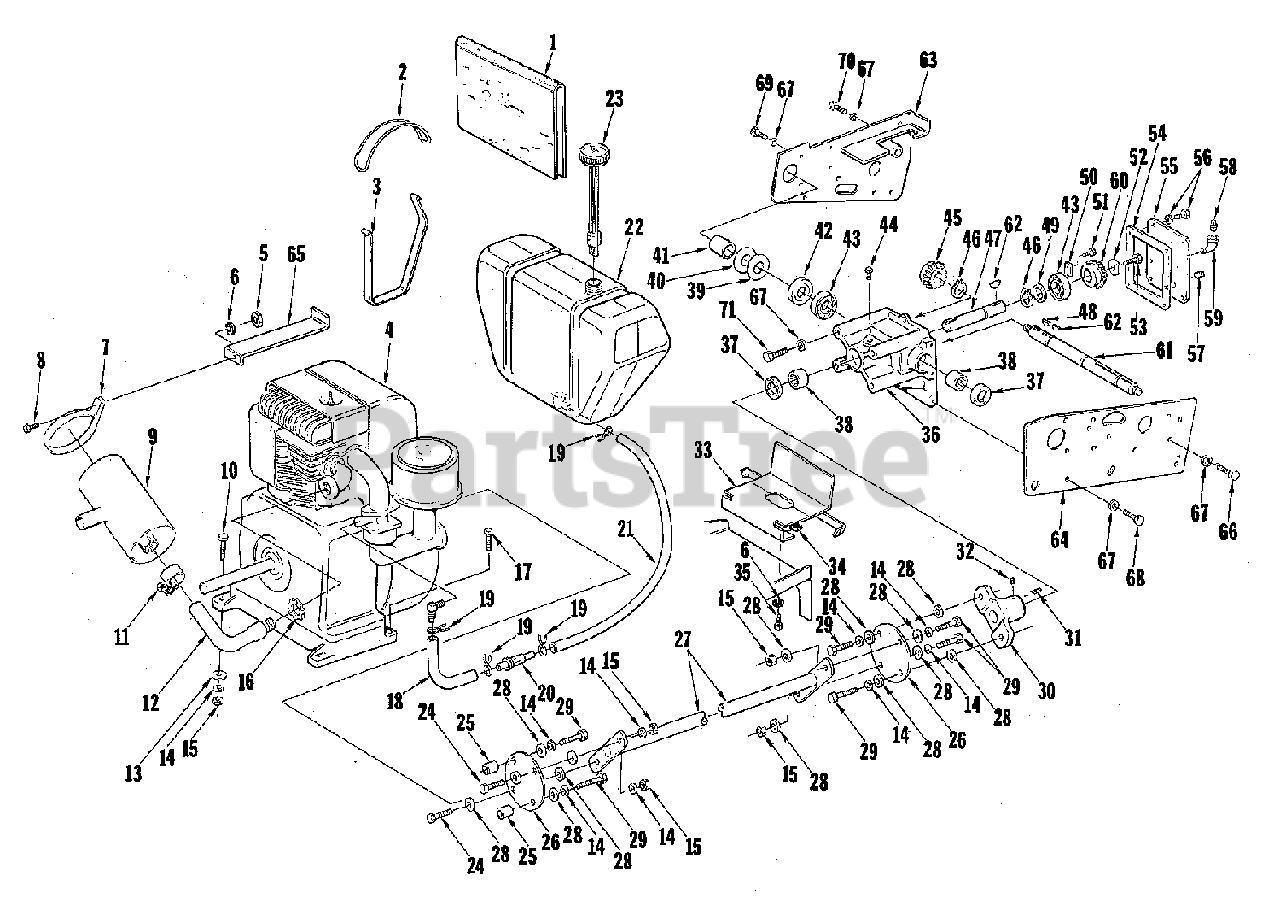

T-15 (1600115) - Homelite Garden Tractor, 15hp Engine, Drive Shaft & Bevel Gear Box Group (3858I10) Parts Diagram

Garden Tractor, 15hp

Engine, Drive Shaft & Bevel Gear Box Group (3858I10) Parts Diagram

  • Title

1

Simplicity LM-01221-43

INSULATION, Fuel Tank

$

$

Not available

2

Simplicity LM-01727-11

STRAP, Fuel Tank

$

$

Not available

3

Simplicity LM-16066-55

STRAP, Fuel Tank

$

$

Not available

4

ENGINE, T-10 HP

$

$

Not available

4

ENGINE, T-12 HP

$

$

Not available

4

ENGINE, T-15 HP

$

$

Not available

5

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

6

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

7

Simplicity LM-01718-80

STRAP, Muffler

$

$

Not available

8

Simplicity LM-09164-31

SCREW, Hex Head Cap, 5/16-18 x 1

$

$

Not available

9

Simplicity LM-16064-12

MUFFLER, Exhaust

$

$

Not available

10

Simplicity LM-09193-60

SCREW, Hex Head Cap, 3/8-16 x 1-1/2

$

$

Not available

11

Simplicity LM-01720-61

CLAMP, Muffler w/Fasteners

$

$

Not available

12

Simplicity LM-01721-95

ELBOW & NIPPLE ASSEMBLY

$

$

Not available

13

Simplicity LM-09173-78

WASHER, 3/8

$

$

Not available

14

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

15

Simplicity LM-09169-50

NUT, Hex Fin, 3/8-16

$

$

Not available

16

Simplicity LM-01543-78

NUT, Lock

$

$

Not available

17

Simplicity LM-01724-55

SCREW, Rectangle Head, 3/8-16 x 1-5/16

$

$

Not available

18

Simplicity LM-16027-27

HOSE, Fuel

$

$

Not available

19

Simplicity LM-01543-72

CLAMP, Hose

$

$

Not available

20

Simplicity LM-01732-06

FILTER, Fuel

$

$

Not available

21

Simplicity LM-16066-82

HOSE, Fuel

$

$

Not available

22

Simplicity LM-16066-53

TANK, Fuel

$

$

Not available

23

Simplicity LM-16027-24

CAP, Fuel Tank w/Guage

$

$

Not available

24

Simplicity LM-09219-69

SCREW, Hex Head Cap, 3/8-16 x 1-1/2

$

$

Not available

25

Simplicity LM-01723-29

SPACER, Drive Shaft

$

$

Not available

26

Simplicity LM-01730-26

COUPLING, Drive Shaft

$

$

Not available

27

Simplicity LM-16070-37

SHAFT ASSEMBLY, Drive

$

$

Not available

28

Simplicity LM-01574-24

WASHER, Special

$

$

Not available

29

Simplicity LM-09204-15

SCREW, Hex Head Cap, 3/8-16 x 1-1/4

$

$

Not available

30

Simplicity LM-01722-64

FLANGE, Drive Shaft

$

$

Not available

31

Simplicity LM-01574-27

KEY, Parallel, Special

$

$

Not available

32

Simplicity LM-16054-96

SETSCREW, Hex Socket, 3/8-24 x 5/16

$

$

Not available

33

Simplicity LM-16070-07

SUPPORT ASSEMBLY, Fuel Tank

$

$

Not available

34

Simplicity LM-16045-24

NUTSERT, Fastener

$

$

Not available

35

Simplicity LM-09173-97

SCREW, Hex Head Cap, 5/16-18 x 3/4

$

$

Not available

36

Simplicity LM-01717-97

HOUSING, Bevel Gear

$

$

Not available

37

Simplicity LM-01181-17

SEAL, Oil

$

$

Not available

38

Simplicity LM-01542-79

BEARING, Needle

$

$

Not available

39

Simplicity LM-01717-91

SHIM

$

$

Not available

40

Simplicity LM-01717-90

SHIM

$

$

Not available

41

Simplicity LM-01722-05

SPACER, (T-10)

$

$

Not available

41

Simplicity LM-01717-92

SPACER, (T-12, T-15)

$

$

Not available

42

Simplicity LM-01717-87

SEAL, Oil

$

$

Not available

43

Simplicity LM-01722-56

BEARING, Ball

$

$

Not available

44

Simplicity LM-01543-26

PLUG, Pipe

$

$

Not available

45

Simplicity LM-01717-96

GEAR, Bevel Driven

$

$

Not available

46

Simplicity LM-01722-06

RING, Retaining

$

$

Not available

47

Simplicity LM-16071-32

SHAFT, Driven (T-10)

$

$

Not available

47

Simplicity LM-01739-66

SHAFT, Driven (T-12, T-15)

$

$

Not available

48

Simplicity LM-09221-39

KEY, Hi-Pro (T-12, T-15)

$

$

Not available

48

Simplicity LM-09051-23

KEY, #9 (T-10)

$

$

Not available

49

Simplicity LM-01727-53

WASHER

$

$

Not available

50

Simplicity LM-01540-40

PLATE, Bearing Clamp

$

$

Not available

51

Simplicity LM-09193-18

SCREW, Cap

$

$

Not available

52

Simplicity LM-01540-26

WASHER

$

$

Not available

53

Simplicity LM-01542-81

SCREW, Hex head Cap, 5/16-18 x 3/4

$

$

Not available

54

Simplicity LM-01542-82

GASKET

$

$

Not available

55

Simplicity LM-01642-49

COVER, Housing

$

$

Not available

56

Simplicity LM-16040-97

SCREW, Cap w/Internal Tooth Washer, 1/4-20 x 5/8

$

$

Not available

57

Simplicity LM-09016-52

PLUG, Pipe, 1/4

$

$

Not available

58

Simplicity LM-09016-53

PLUG, Pipe, 3/8

$

$

Not available

59

Simplicity LM-09017-23

ELBOW, Street, 3/8 x 90 Degrees

$

$

Not available

60

Simplicity LM-01727-52

GEAR, Bevel Driver

$

$

Not available

61

Simplicity LM-01727-50

SHAFT, Driver

$

$

Not available

62

Simplicity LM-09051-23

KEY, Woodruff

$

$

Not available

63

Simplicity LM-16066-09

PLATE, Side, R.H. (T-10)

$

$

Not available

63

Simplicity LM-01660-49

PLATE, Side, R.H. (T-12, T-15)

$

$

Not available

64

Simplicity LM-01740-32

PLATE, Side, L.H. (T-10)

$

$

Not available

64

Simplicity LM-01740-33

PLATE, Side, L.H. (T-12, T-15)

$

$

Not available

65

Simplicity LM-01718-85

BRACKET, Voltage Regulator

$

$

Not available

66

Simplicity LM-09164-32

SCREW, Hex Head Cap, 7/16-14 x 1-1/4 (T-10)

$

$

Not available

67

Simplicity LM-09181-99

WASHER, Lock

$

$

Not available

68

Simplicity LM-09182-12

SCREW, Hex Head Cap (T-10)

$

$

Not available

69

Simplicity LM-09234-91

SCREW, Hex Head Cap, 7/16-14 x 1 (T-10)

$

$

Not available

69

Simplicity LM-09234-91

SCREW, Hex Head Cap (T-12, T-15)

$

$

Not available

70

Simplicity LM-09234-71

SCREW, Hex Head Cap, (T-10)

$

$

Not available

70

Simplicity LM-09234-71

SCREW, Hex Head Cap, (T-12, T-15)

$

$

Not available

71

Simplicity LM-09166-08

SCREW, Hex Head Cap

$

$

Not available

72

Simplicity LM-09182-13

NUT, Hex, 7/16-14 (T-12, T-15)

$

$

Not available
