TS 346 (960410372-00) - Husqvarna 46" Garden Tractor (2014-07) MOWER DECK / CUTTING DECK Parts Diagram

46" Garden Tractor

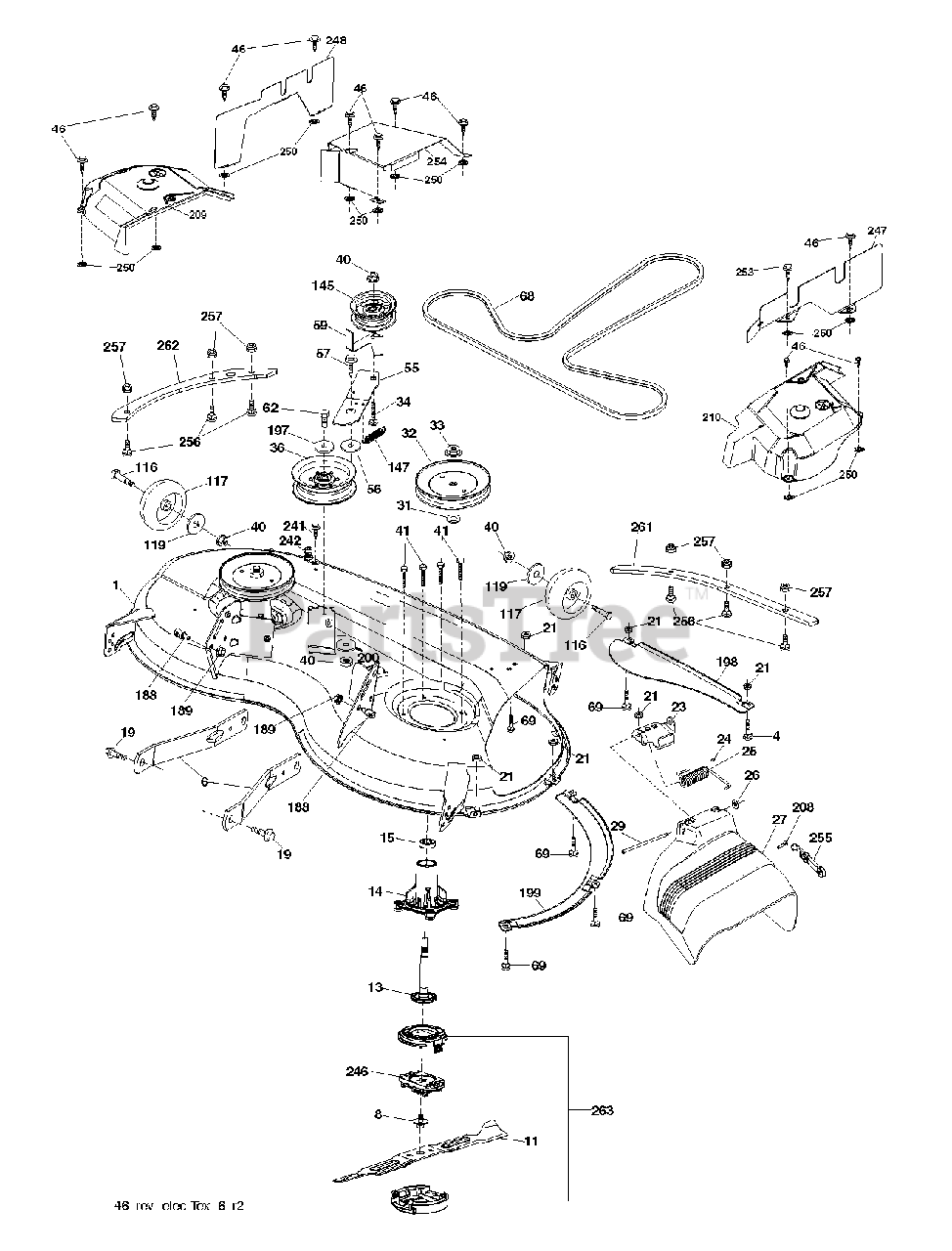

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 583900902

HOUSING 46 WELDMENT TTR X498 G
(Superseded to 532421798)

$375.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581043901

BLADE.REVOLTION.46"BAGER.PT43

$24.99

$

In Stock, Qty 20+

0

13

Husqvarna 580854701

SHAFT ASM.REV.TALL.N/GREASEBL
(Superseded to 587820201)

$37.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580796101

HOUSING.MANDREL.REV.TALL.N/GRS
(Superseded to 587820201)

$37.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532442895

SHIELD SUBASM DEFLECTOR 46 FRE
(Superseded to 583567001)

$51.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$10.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.49

$

In Stock, only 3 left!

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$4.99

$

In Stock, Qty 18

0

62

Husqvarna 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$42.99

$

In Stock, Qty 20+

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

147

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$9.99

$

In Stock, Qty 15

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

197

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532403150

BAFFLE FRONT RH

$11.99

$

Usually ships in 3-10 days

0

200

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD

$

$

Not available

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

209

Husqvarna 532432395

COVER MANDREL LEFT
(Superseded to 583479901)

$17.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532432396

COVER MANDREL RIGHT
(Superseded to 583480001)

$27.99

$

Usually ships in 3-10 days

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 19

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

246

Husqvarna 580954002

HOLDER BLADE REVOLUTION
(Superseded to 580954003)

$194.99

$

In Stock, Qty 15

0

247

Husqvarna 532432398

SHIELD RIGHT
(Superseded to 583480201)

$36.99

$

Usually ships in 3-10 days

0

248

Husqvarna 532432397

SHIELD LEFT
(Superseded to 583480101)

$28.99

$

Usually ships in 3-10 days

0

250

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

253

Husqvarna 532427350

SCREW
(Superseded to 583441001)

$4.99

$

Usually ships in 3-10 days

0

254

Husqvarna 532432399

SHIELD ASSEMBLY 46 TEX REAR DE
(Superseded to 583480301)

$47.99

$

Usually ships in 3-10 days

0

255

Husqvarna 532436087

ELASTIC STRAP KIT
(Superseded to 583508201)

$14.99

$

Usually ships in 3-10 days

0

256

Husqvarna 578296404

SCREW.BUTTONHEAD.1/4-20X1

$

$

Not available

257

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

261

Husqvarna 585317705

PLATE.REINFORCE.46.BOLT.ONX431
(Superseded to 589481805)

$10.99

$

In Stock, Qty 11

0

262

Husqvarna 585317805

PLATE.REINFOR.46.SIDEBOLT.X431

$17.99

$

In Stock, Qty 8

0

263

Husqvarna 586638501

CAP.REVOLUTION ASM

$31.99

$

In Stock, Qty 17

0

--

Husqvarna 580856001

RP MANDREL.ASM.REV.TALL.N/GRS
(Superseded to 587820201)

Note: MANDREL ASSEMBLY (Includes housing (key 14) shaft assembly (key 13) and bearing (key 15) only- ulley /nut /washer and blade bolt /washers not included)

$37.99

$

Usually ships in 3-10 days

0

--

Husqvarna 586264901

DECK.ASM SVC.46"HP.E.5GW.WPTX

$1455.99

$

Usually ships in 3-10 days

0
