WH 3615 (968999237) - Husqvarna 36" Walk-Behind Mower (2005-08) MOWER DECK / CUTTING DECK Parts Diagram

36" Walk-Behind Mower

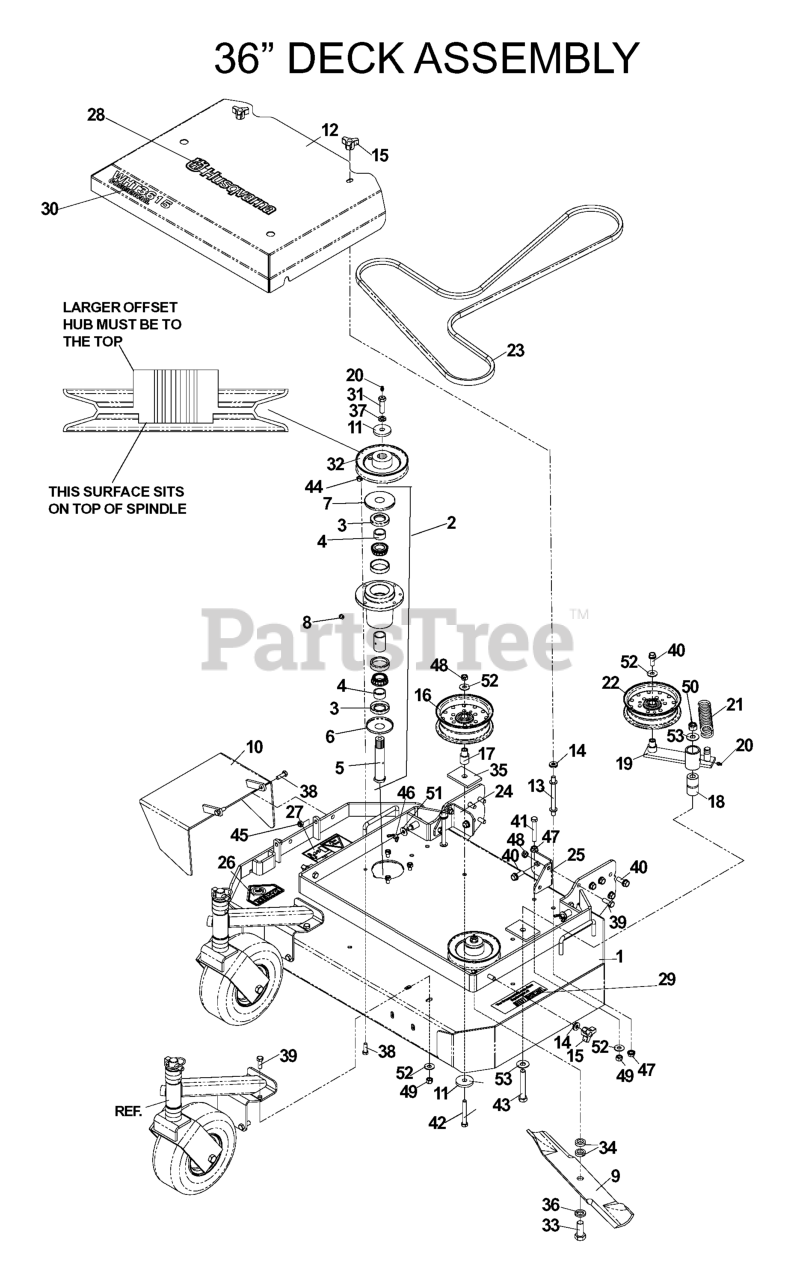

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

5

Husqvarna 539108760

52/61 SPINDLE - SPLINED SHAFT
(Superseded to 539112122)

$

$

Not available

45

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539109049

SHIELD SPACER

$

$

Not available

36

Husqvarna 539990333

LOCKWASHER 5/8

$1.49

$

In Stock, Qty 6

0

21

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

30

Husqvarna 539110510

DECAL, WTH3615

$8.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539109084

IZT BELT

$

$

Not available

4

Husqvarna 539108758

SPACER

$

$

Not available

46

Husqvarna 539100276

WINGNUT, 5/16C NYLOC

$

$

Not available

33

Husqvarna 539109578

HCS 5/8-18X1-1/2 GR5 TPBLT ZD

$4.99

$

In Stock, Qty 7

0

50

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 539103230

IDLER ARM

$

$

Not available

26

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 539107277

PULLEY - 52"
(Superseded to 539112124)

$44.99

$

In Stock, Qty 7

0

48

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

9

Husqvarna 539100341

BLADE OEM 18"

$

$

Not available

24

Husqvarna 539109053

DECK SLIDE, RT

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 7

0

43

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 10

0

52

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 15

0

47

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

53

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

44

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

39

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539109048

BELT SHIELD, 36" ORANGE

$42.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$4.99

$

In Stock, Qty 6

0

18

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, only 4 left!

0

38

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539976436

BLADE SPACERS

$3.99

$

In Stock, Qty 19

0

25

Husqvarna 539109051

DECK SLIDE, LT

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

20

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 539111047

DECAL, HUSQ 12" BLUE

$

$

Not available

31

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104546

DEFLECTOR CHUTE

$169.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

11

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

15

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 13

0

37

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

1

Husqvarna 539110573

DECK W/DECALS 36"WSL

$

$

Not available

35

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

41

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

29

Husqvarna 539105071

DECAL, NASCAR

$

$

Not available

14

Husqvarna 539102056

WASHER, 3/8 SEALING

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539130520

SPINDLE ASM KIT, WHT/KIKW

$

$

Not available
