WH 4817 E (968999238) - Husqvarna 48" Walk-Behind Mower (2005-08) 36 Deck Parts Diagram

48" Walk-Behind Mower

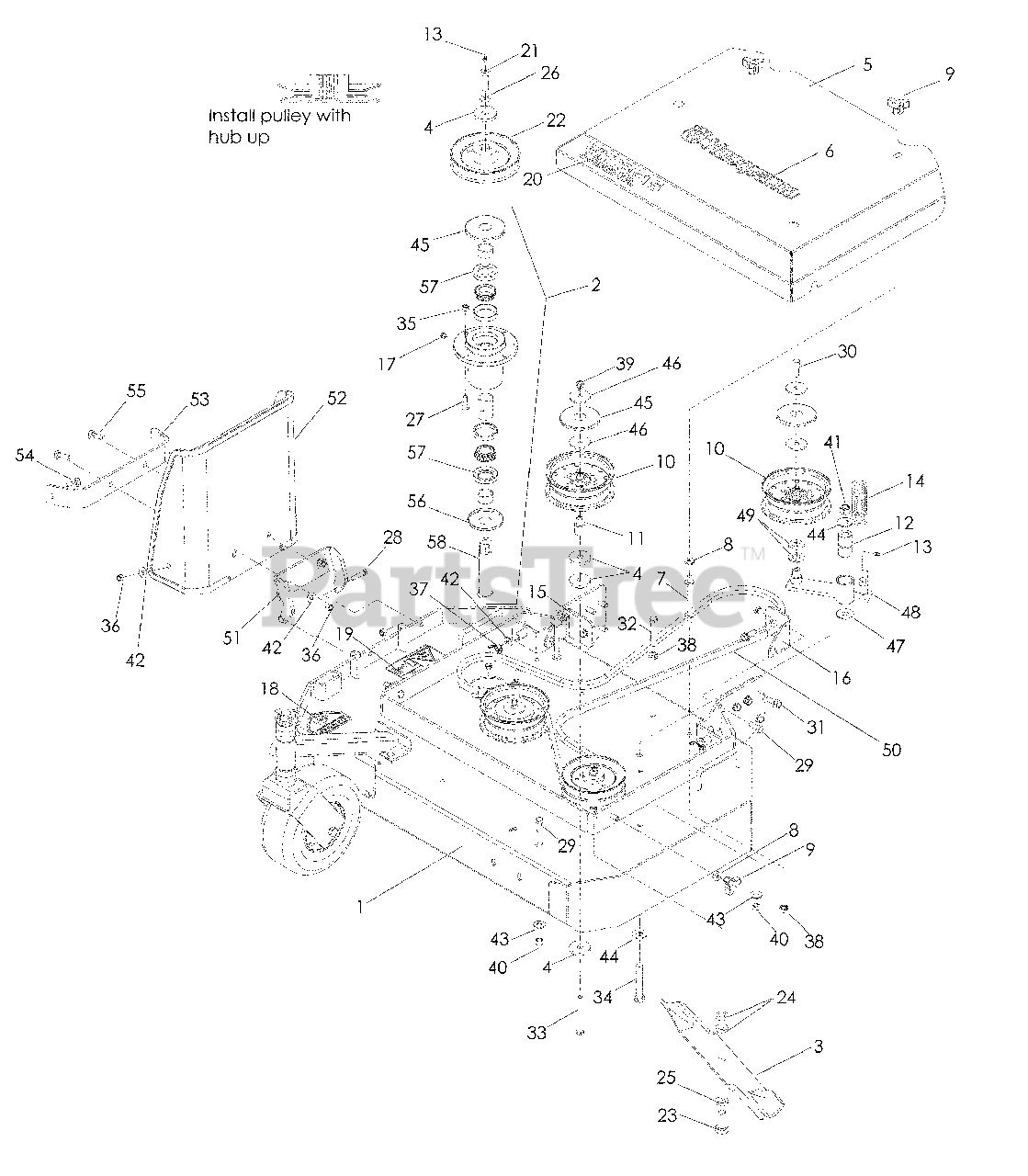

36 Deck Parts Diagram

  • Title

1

Husqvarna 539110573

DECK W/DECALS 36"WSL

$

$

Not available

2

Husqvarna 539130520

SPINDLE ASM KIT, WHT/KIKW

$

$

Not available

3

Husqvarna 539100341

BLADE OEM 18"

$22.99

$

In Stock, only 2 left!

0

4

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

5

Husqvarna 539109048

BELT SHIELD, 36" ORANGE

$

$

Not available

6

Husqvarna 539111046

DECAL, HUSQ 15" BLUE

$

$

Not available

7

Husqvarna 539109049

SHIELD SPACER

$

$

Not available

8

Husqvarna 539102056

WASHER, 3/8 SEALING

$

$

Not available

9

Husqvarna 539102070

KNOB, THREE PRONG

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 539103258

IDLER PULLEY (TALL)

Note: (TALL)

$51.99

$

In Stock, Qty 10

0

11

Husqvarna 539103295

IDLER BUSHING

$17.99

$

In Stock, Qty 18

0

12

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539103256

SPRING

$13.99

$

In Stock, Qty 17

0

15

Husqvarna 539109053

DECK SLIDE, RT

$

$

Not available

16

Husqvarna 539109051

DECK SLIDE, LT

$

$

Not available

17

Husqvarna 539977326

PLUG-VENTED

$11.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 539105746

DECAL, EURO SEVERING

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 539111068

DECAL WH3615

$

$

Not available

21

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 539112124

PULLEY, 52

$56.99

$

In Stock, Qty 8

0

23

Husqvarna 539109578

HCS 5/8-18X1-1/2 GR5 TPBLT ZD

$4.99

$

In Stock, Qty 7

0

24

Husqvarna 539976436

BLADE SPACERS

$3.49

$

In Stock, Qty 16

0

25

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, only 2 left!

0

26

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

27

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

30

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 11

0

32

Husqvarna 539990637

HCS 3/8C X 2 1/2

$4.99

$

In Stock, Qty 18

0

33

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 17

0

35

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

36

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 539100276

WINGNUT, 5/16C NYLOC

$

$

Not available

38

Husqvarna 539990613

NUT 3/8C WHIZ

$

$

Not available

39

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

40

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539990550

WASHER 1/2 FLAT

$

$

Not available

45

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 17

0

46

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

47

Husqvarna 539113104

WASHER 1/2 X 1.44 HRD ZD

$

$

Not available

48

Husqvarna 539130600

IDLER ARM-ANGLED, BLACK

$

$

Not available

49

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539130580

BELT - 97.5", WRAPPED

$102.99

$

In Stock, Qty 6

0

51

Husqvarna 539130916

PIVOT BRACKET - CHUTE

$

$

Not available

52

Husqvarna 539130903

CHUTE, RUBBER DISCHARGE WB

$

$

Not available

53

Husqvarna 539130922

BRKT, REINF-CHUTE WB

$

$

Not available

54

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

In Stock, Qty 16

0

55

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

57

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 17

0

58

Husqvarna 539112122

SPINDLE 52/61

$

$

Not available
