WH 4817 E (968999238) - Husqvarna 48" Walk-Behind Mower (2005-08) 48 Deck Parts Diagram

48" Walk-Behind Mower

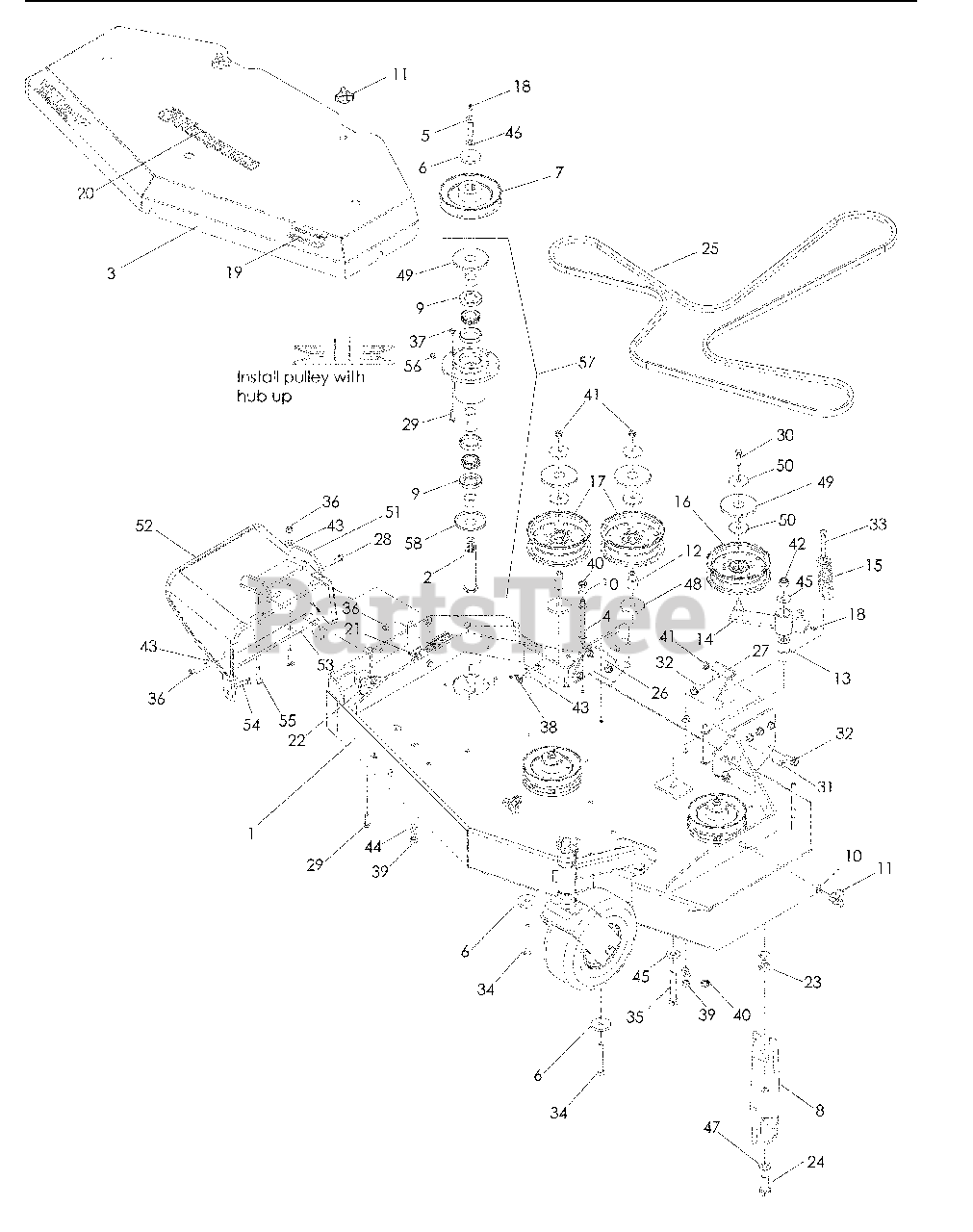

48 Deck Parts Diagram

  • Title

1

Husqvarna 539110575

DECK W/DECALS

$849.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112122

SPINDLE

$

$

Not available

3

Husqvarna 539109081

BELT SHIELD, 48"

$

$

Not available

4

Husqvarna 539109049

SHIELD SPACER

$

$

Not available

5

Husqvarna 539112120

HCS 7/16-20 x 1½ GR8 SPEC

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

7

Husqvarna 539112124

PULLEY

$44.99

$

In Stock, Qty 7

0

8

Husqvarna 539100340

BLADE, 16¼"

$15.99

$

In Stock, Qty 12

0

9

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 539102056

WASHER 3/8" SEALING

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 9

0

12

Husqvarna 539103295

BUSHING, IDLER

$9.99

$

In Stock, Qty 17

0

13

Husqvarna 539103427

BUSHING, PIVOT

$7.49

$

In Stock, only 3 left!

0

14

Husqvarna 539103230

IDLER ARM

$

$

Not available

15

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 19

0

16

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, Qty 9

0

17

Husqvarna 539103258

PULLEY, IDLER

Note: (TALL)

$53.99

$

In Stock, Qty 7

0

18

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 539111067

DECAL, WH4817

$

$

Not available

20

Husqvarna 539111046

DECAL, HUSQ

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 539976436

BLADE SPACER

$3.99

$

In Stock, Qty 19

0

24

Husqvarna 539109578

HCS 5/8-18 x 1½ TPBLT

$4.99

$

In Stock, Qty 7

0

25

Husqvarna 539109244

BELT, DECK

$103.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539109053

DECK SLIDE, RT

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539109051

DECK SLIDE, LT

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, Qty 10

0

29

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 539990563

HCS 3/8-16 x 1

$1.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539990582

HCS 3/8-16 x 1 WHIZLK

$

$

Not available

33

Husqvarna 539990637

HCS 3/8-16 x 2½

$1.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539103433

HCS ½-13 x 3¼

$4.99

$

In Stock, Qty 10

0

36

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539100276

NUT 5/16-18 WING NYLON

$

$

Not available

39

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990546

NUT, 3/8-16 HEX CNTRLK

$

$

Not available

42

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990692

WASHER, 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539990517

WASHER, 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990550

WASHER, ½ STD FLT

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

47

Husqvarna 539990333

WASHER 5/8 SLW

$1.49

$

In Stock, Qty 6

0

48

Husqvarna 539111897

WASHER 3/8 SPECIAL

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 539112670

WASHER, HEAVY

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 539130916

PIVOT BRACKET, DECK

$36.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539130903

CHUTE, RUBBER

$60.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539130922

BRACKET, CHUTE

$

$

Not available

54

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

56

Husqvarna 539977326

GREASE POPPET

$13.99

$

In Stock, only 1 left!

0

57

Husqvarna 539130520

SPINDLE ASSEM

$

$

Not available

58

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0
