WH208-0004 - Kohler Snow PRO Engine, Basic Version, 7hp, 5.2kW Blower Housing Group Parts Diagram

Snow PRO Engine, Basic Version, 7hp, 5.2kW

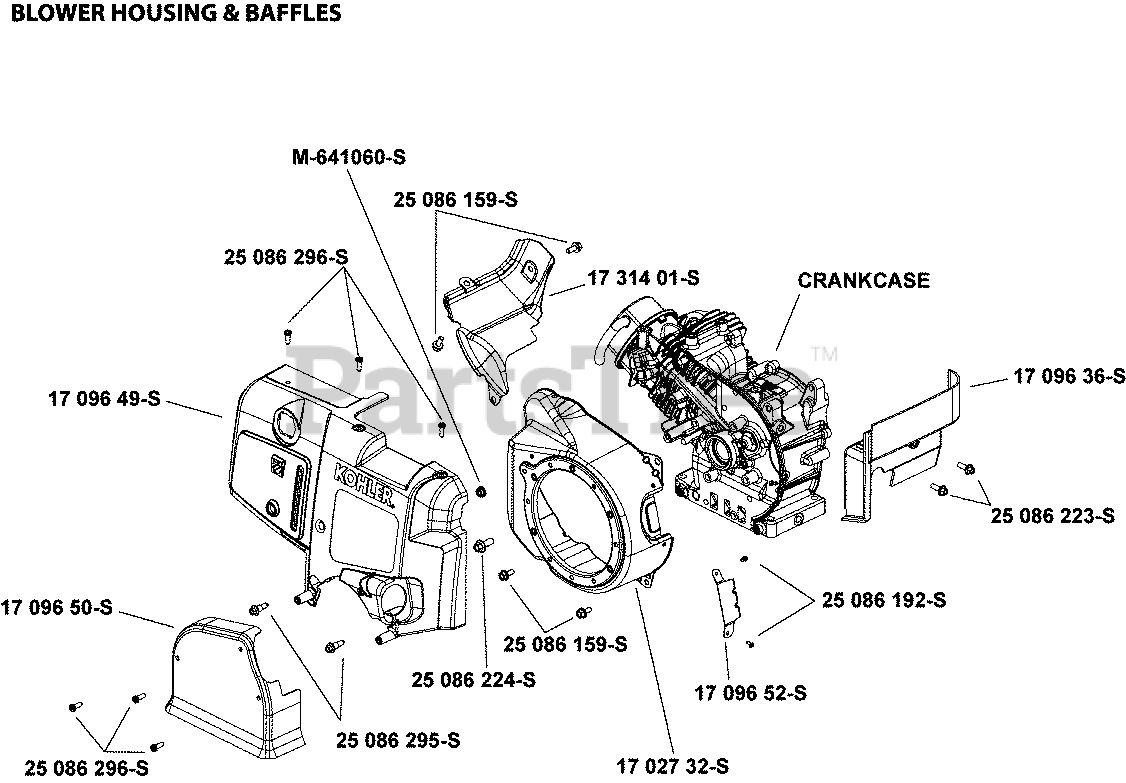

Blower Housing Group Parts Diagram

  • Title

1702732-S

Kohler 17 027 32-S

HOUSING ASSEMBLY, BLOWER-USE 17 027 33-S
(Superseded to 17 027 33-S)

$92.99

$

Usually ships in 2-5 days

0

1709652-S

Kohler 17 096 52-S

COVER, STARTER CUTOUT

$6.49

$

Usually ships in 2-5 days

0

1709650-S

Kohler 17 096 50-S

COVER, RECOIL STARTER

$9.49

$

Usually ships in 2-5 days

0

25086296-S

Kohler 25 086 296-S

SCREW,#25 6-LOBE PAN HD (HI-LOW)

$

$

Not available

1731401-S

Kohler 17 314 01-S

SHIELD, CYLINDER HEAD - USE 17 314 92-S
(Superseded to 17 314 92-S)

$14.99

$

Usually ships in 2-5 days

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 12

0

25086159-S

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

1709649-S

Kohler 17 096 49-S

COVER, ENGINE

$35.99

$

Usually ships in 2-5 days

0

25086296-S

Kohler 25 086 296-S

SCREW,#25 6-LOBE PAN HD (HI-LOW)

$

$

Not available

25086295-S

Kohler 25 086 295-S

SHOULDER, SCREW (M6)

$2.49

$

Usually ships in 2-5 days

0

1709636-S

Kohler 17 096 36-S

COVER, ENGINE EXTENSION USE 17 096 71-S
(Superseded to 17 096 71-S)

$14.99

$

Usually ships in 2-5 days

0

25086223-S

Kohler 25 086 223-S

SCREW, M6 X18

$3.49

$

In Stock, only 4 left!

0

25086192-S

Kohler 25 086 192-S

SCREW, CROSS RECESS PAN HEAD

$2.49

$

Usually ships in 2-5 days

0

25086224-S

Kohler 25 086 224-S

SCREW, M8 X 20

$3.49

$

Usually ships in 2-5 days

0
