WHT 4817 (968999238) - Husqvarna 48" Walk-Behind Mower (2004-09) Deck Assembly 48" Parts Diagram

48" Walk-Behind Mower

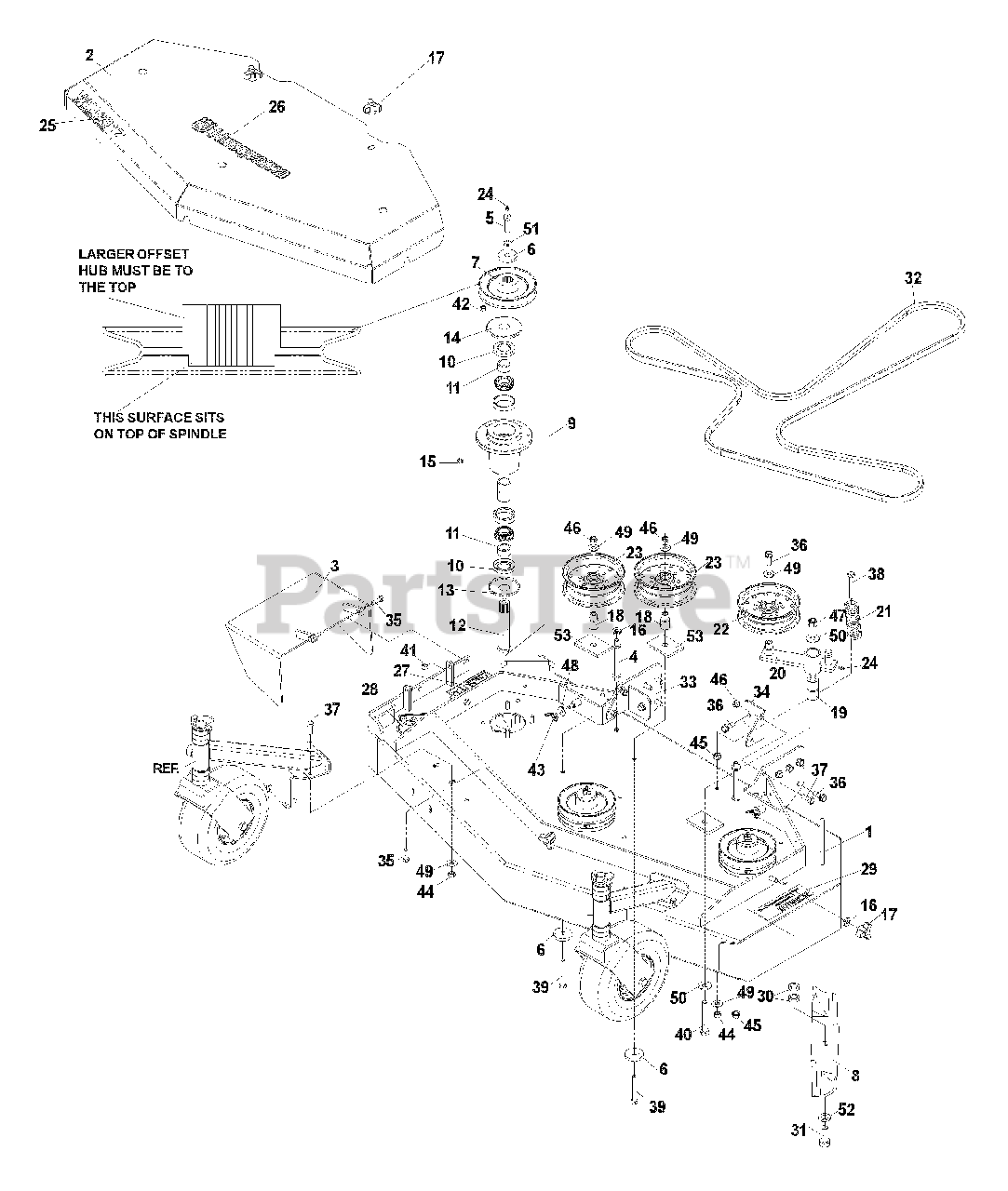

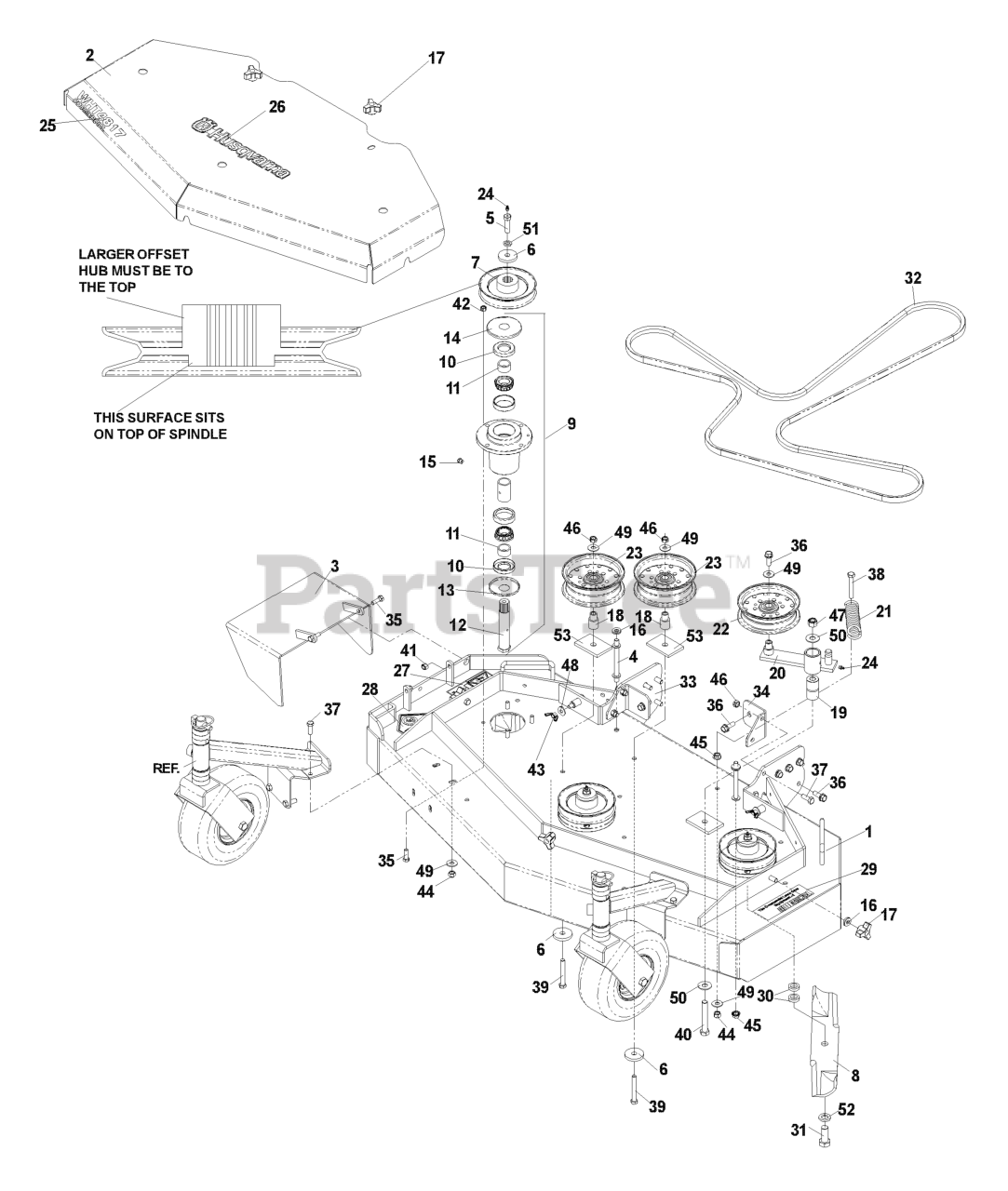

Deck Assembly 48" Parts Diagram

  • Title

1

Husqvarna 539110575

48" DECK W/DECALS

$849.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539109081

SHIELD, BELT, 48"

$

$

Not available

3

Husqvarna 539104546

DEFLECTOR CHUTE

$169.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539109049

SPACER, SHIELD

$

$

Not available

5

Husqvarna 539108766

HCS, 7/16-20 X 1 1/2, GR5
(Superseded to 539112120)

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

7

Husqvarna 539107277

PULLEY
(Superseded to 539112124)

$44.99

$

In Stock, Qty 7

0

8

Husqvarna 539100340

BLADE, 16 1/4"

$15.99

$

In Stock, Qty 12

0

9

Husqvarna 539108773

SPINDLE ASSEMBLY, COMPLETE
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

10

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 15

0

11

Husqvarna 539108758

TOP & BOTTOM SPACERS

$

$

Not available

12

Husqvarna 539108760

SPINDLE
(Superseded to 539112122)

$

$

Not available

13

Husqvarna 539108449

DUST CUP, BOTTOM

$4.99

$

In Stock, Qty 17

0

14

Husqvarna 539108450

DUST CUP, TOP

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 539977326

GREASE POPET

$13.99

$

In Stock, only 1 left!

0

16

Husqvarna 539102056

WASHER, 3/8, SEALING

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102070

KNOB, 3-PRONG

$7.49

$

In Stock, Qty 13

0

18

Husqvarna 539103295

BUSHING, IDLER

$9.99

$

In Stock, Qty 17

0

19

Husqvarna 539103427

BUSHING, PIVOT

$7.49

$

In Stock, only 3 left!

0

20

Husqvarna 539103230

IDLER ARM

$

$

Not available

21

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 19

0

22

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

23

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 7

0

24

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 539110511

DECAL, WHT 4817

$

$

Not available

26

Husqvarna 539200732

DECAL, HUSQVARNA

$

$

Not available

27

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

28

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 539105071

DECAL, NASCAR

$

$

Not available

30

Husqvarna 539976436

SPACER, BLADE

$3.99

$

In Stock, Qty 19

0

31

Husqvarna 539109578

HCS, 5/8-18 X 1 1/2, GR5

$4.99

$

In Stock, Qty 7

0

32

Husqvarna 539109244

BELT, DECK

$103.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539109053

DECK SLIDE, RIGHT

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539109051

DECK SLIDE, LEFT

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990209

HCS, 5/16-18 X 1, GR5

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 539990582

HCS, 3/8-16 X 1, GR5

$

$

Not available

37

Husqvarna 539990563

HCS, 3/8-16 X 1, GR5

$1.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539990637

HCS, 3/8-16 X 2 1/2, GR5

$1.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539102612

HCS, 3/8-16 X 2 3/4, GR5

$4.99

$

In Stock, Qty 6

0

40

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4, GR5

$4.99

$

In Stock, Qty 10

0

41

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990184

NUT, 5/16C, CENTER LOCK

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539100276

NUT, 5/16C, WINGNUT

$

$

Not available

44

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990613

NUT, 3/8C

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990546

NUT, 3/8C, CENTER LOCK

$

$

Not available

47

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

49

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

52

Husqvarna 539990333

LOCKWASHER, 5/8

$1.49

$

In Stock, Qty 6

0

53

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0
