XT173-0031 - Kohler Courage XT-7 Series Engine, Made for Husqvarna, 8.0 ft-lbs, 173cc Fuel System Parts Diagram

Courage XT-7 Series Engine, Made for Husqvarna, 8.0 ft-lbs, 173cc

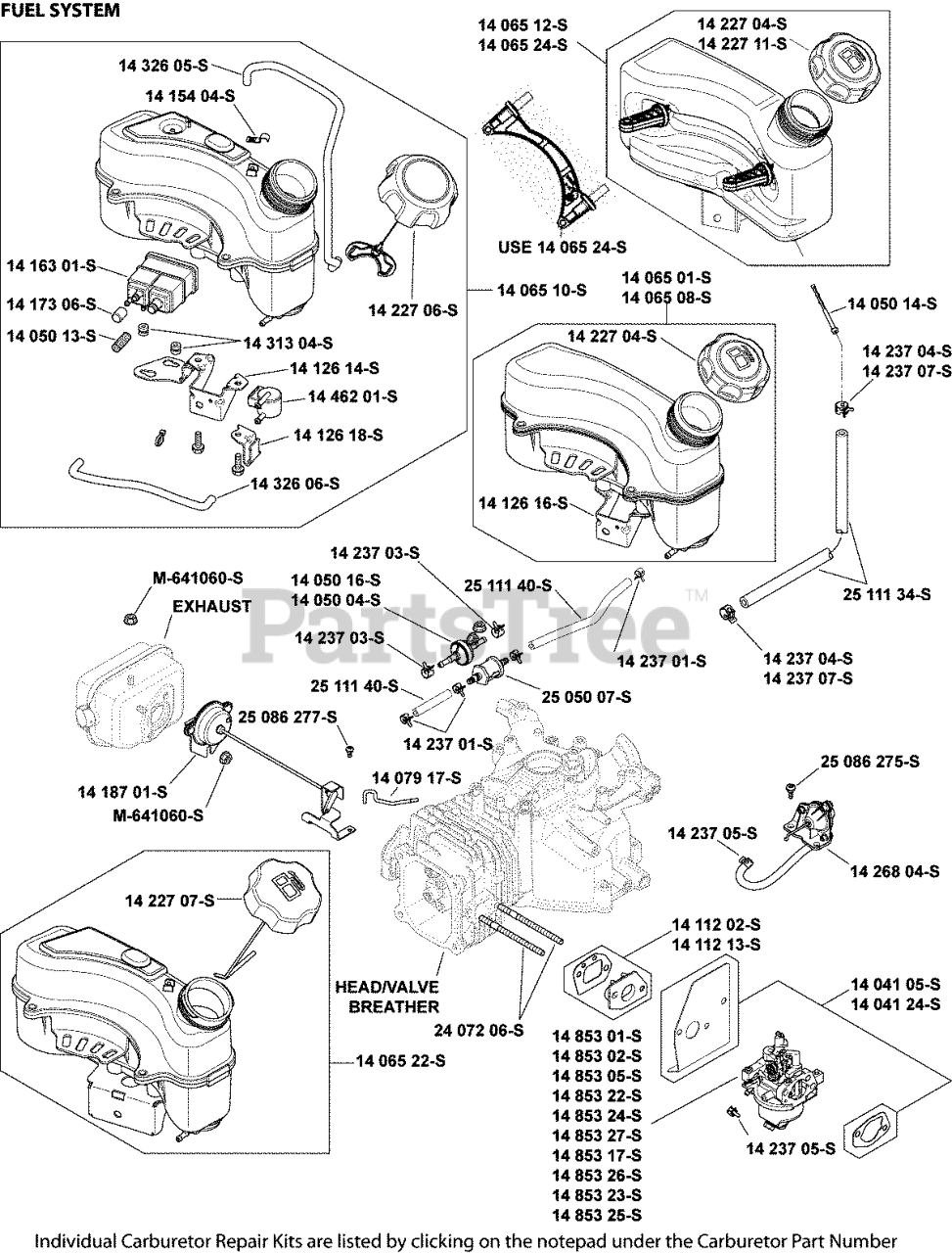

Fuel System Parts Diagram

  • Title

1404105-S

Kohler 14 041 05-S

GASKET, CARBURETOR - USE 14 041 24-S
(Superseded to 14 041 31-S)

Note: (includes Carburetor Heat Shield Gasket, Air Cleaner Base Gasket)

$20.99

$

In Stock, Qty 15

0

1405014-S

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$9.49

$

In Stock, Qty 20+

0

1406512-S

Kohler 14 065 12-S

TANK, FUEL - USE 14 065 24-S
(Superseded to 14 065 24-S)

$65.99

$

Usually ships in 2-5 days

0

1411202-S

Kohler 14 112 02-S

KIT, SPACER W/GASKET

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1422704-S

Kohler 14 227 04-S

CAP, FUEL ASSEMBLY-USE 14 227 11-S
(Superseded to 14 227 11-S)

$13.99

$

In Stock, Qty 14

0

1423704-S

Kohler 14 237 04-S

CLAMP, HOSE

$3.49

$

In Stock, Qty 7

0

1485305-S

Kohler 14 853 05-S

KIT, CARB (PRIMER) W/GASKETS - DISCONTINUED

$

$

Not available

2407206-S

Kohler 24 072 06-S

STUD, M6X1.0X93MM

$13.99

$

Usually ships in 2-5 days

0

2511134-S

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 20+

0

FUEL TANK ADAPTER

Note: 14 029 01 FUELTANK ADAPTER NOT SERVICED - REPLACE WITH FUEL TANK KIT 14 065 24-S

$

$

Not available
