XT173-0202 - Kohler Courage XT-7 Series Engine, Basic Version, 8.0 ft-lbs, 173cc 02 CrankCase Parts Diagram

Courage XT-7 Series Engine, Basic Version, 8.0 ft-lbs, 173cc

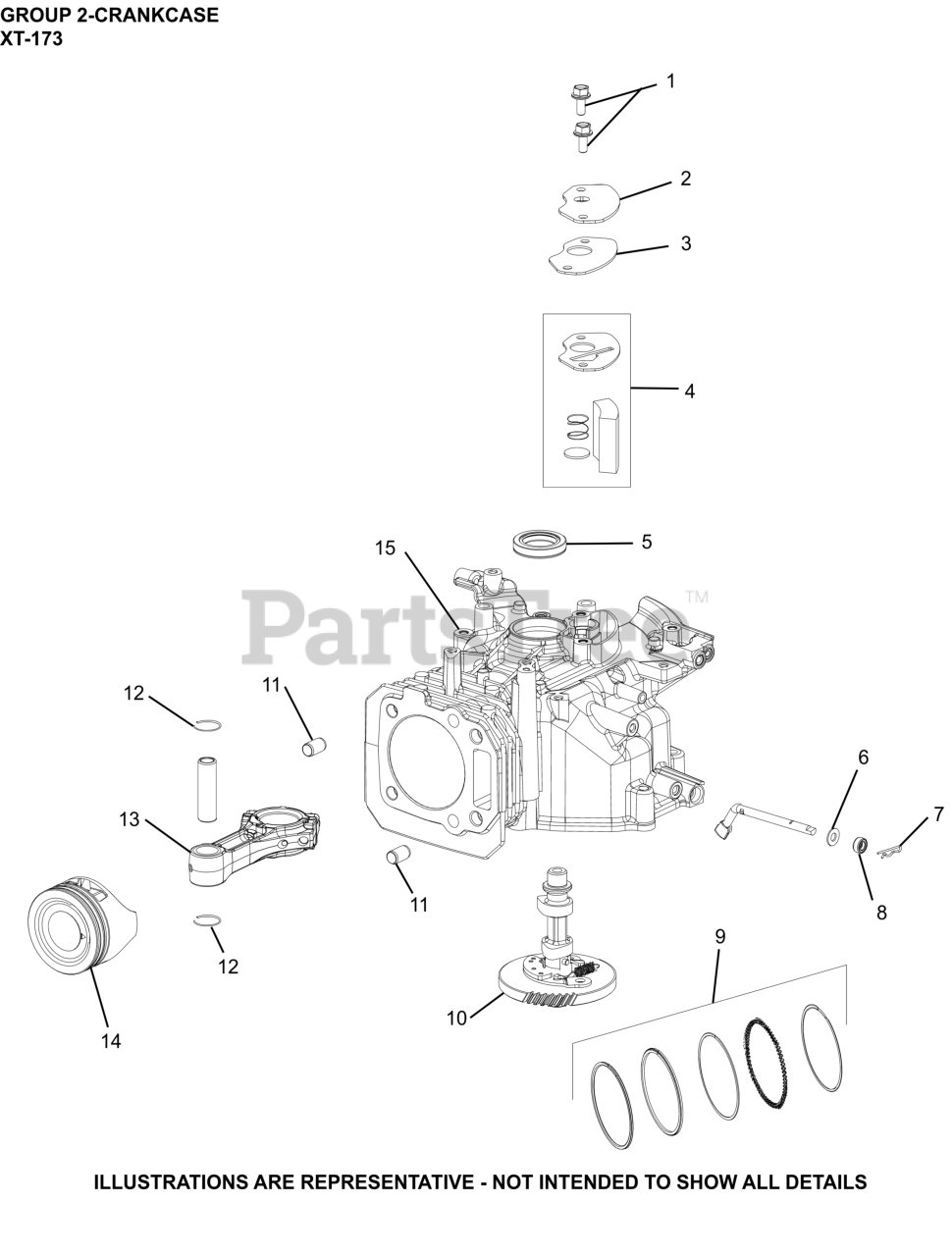

02 CrankCase Parts Diagram

  • Title

1

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

2

Kohler 14 096 22-S

COVER, BREATHER - (#14096125S)
(Superseded to 14 096 125-S)

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 14 050 01-S

KIT, BREATHER FILTER

$14.99

$

In Stock, Qty 5

0

5

Kohler 14 032 02-S

SEAL, CCASE/FLYWHEEL

$11.99

$

In Stock, only 2 left!

0

6

Kohler 14 468 07-S

WASHER, FLAT (DIA 13MM O.D.)-(#1446830S)
(Superseded to 14 468 30-S)

$2.99

$

In Stock, only 1 left!

0

7

Kohler 14 154 01-S

CLIP, GOVERNOR SHAFT

$2.99

$

In Stock, only 1 left!

0

8

Kohler 14 032 04-S

SEAL, OIL

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 14 010 12-S

CAMSHAFT ASSEMBLY-(#1401013S)
(Superseded to 14 010 13-S)

$61.99

$

Usually ships in 2-5 days

0

12

Kohler 14 018 03-S

RETAINER, PISTON PIN

$4.49

$

Usually ships in 2-5 days

0

13

Kohler 14 067 01-S

CONNECTING ROD

$63.99

$

Usually ships in 2-5 days

0

15

Kohler 14 561 09-S

CRANKCASE- (#DSC)

$

$

Not available

NI

Kohler 14 108 02-S

RING SET

$40.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 144 02-S

SHAFT, GOVERNOR CROSS

$14.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 380 04-S

PIN, PISTON

$4.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 380 05-S

PIN, DOWEL (8MM)-(#DSC)

$

$

Not available

NI

Kohler 14 874 03-S

KIT, PISTON

$89.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 086 150-S

SCREW, HEX FLANGE (M7)

$2.99

$

Usually ships in 2-5 days

0
