XT650-3025 - Kohler XT Series Engine, Basic Version, 6.5 ft-lbs, 149cc 08 Fuel System Parts Diagram

XT Series Engine, Basic Version, 6.5 ft-lbs, 149cc

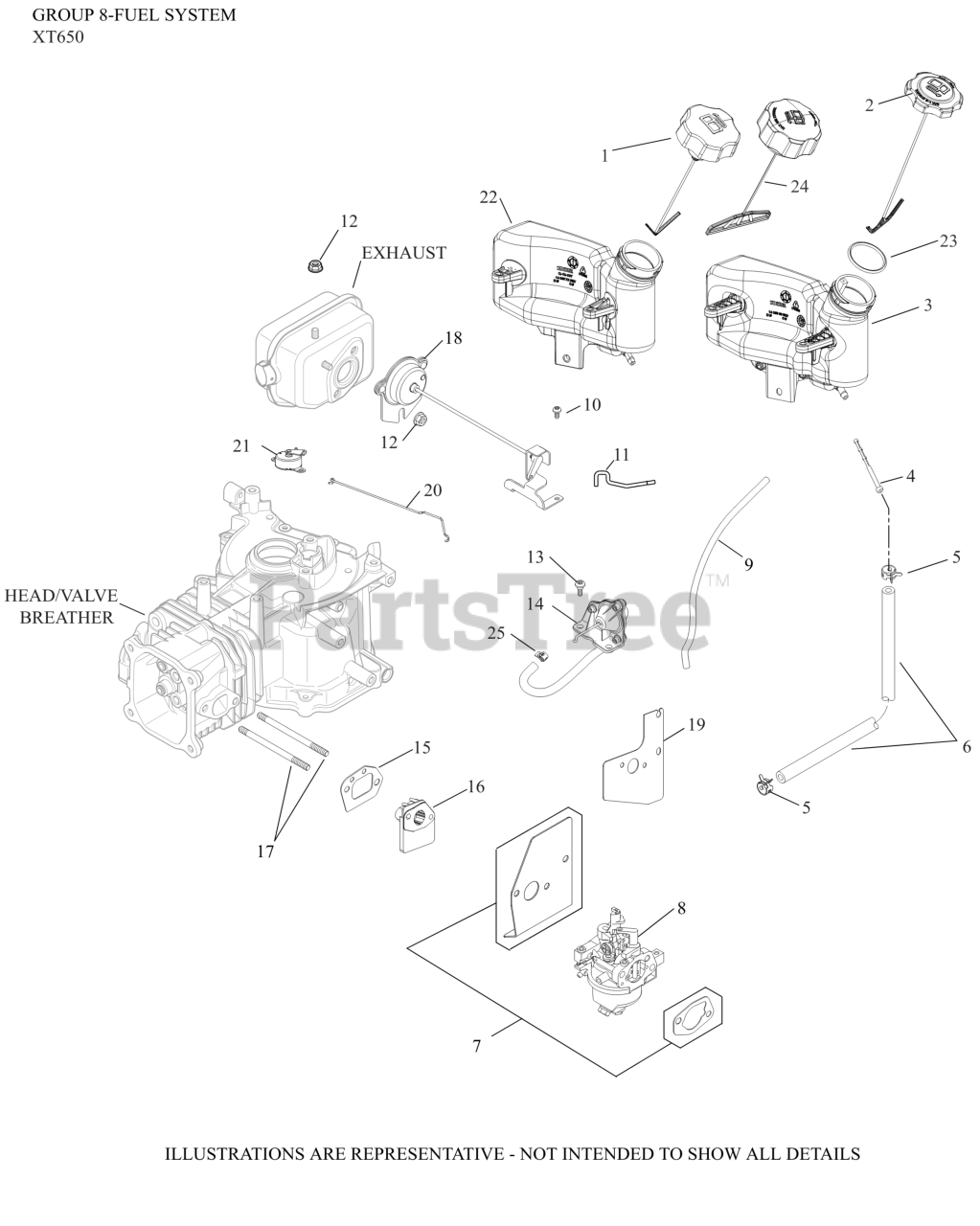

08 Fuel System Parts Diagram

  • Title

2

Kohler 14 227 20-S

CAP ASSEMBLY, FUEL

$10.99

$

In Stock, only 3 left!

0

3

Kohler 14 065 63-S

TANK, FUEL

$61.99

$

In Stock, Qty 11

0

4

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$8.49

$

In Stock, Qty 20+

0

5

Kohler 14 237 07-S

CLAMP, HOSE (NON-CALIF)(#1423710S)
(Superseded to 14 237 10-S)

$2.99

$

In Stock, only 2 left!

0

6

Kohler 25 111 69-S

HOSE, FUEL LOW-PERMEATION (CKY)

$11.99

$

In Stock, Qty 14

0

7

Kohler 14 041 31-S

KIT, CARBURETOR HEAT SHIELD GASKET

$17.99

$

In Stock, Qty 13

0

8

Kohler 14 853 68-S

KIT,CARB (HUAYI) 12MM A. C

$37.99

$

In Stock, Qty 20+

0

9

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, Qty 5

0

15

Kohler 14 041 16-S

GASKET, SPACER - USE 14 041 24-S
(Superseded to 14 041 31-S)

$17.99

$

In Stock, Qty 13

0

16

Kohler 14 112 27-S

SPACER, CARBURETOR

$6.99

$

In Stock, only 3 left!

0

17

Kohler 14 072 23-S

STUD,M6X1.0X100.2MM

$6.49

$

In Stock, Qty 12

0

20

Kohler 14 079 32-S

LINKAGE, AUTO CHOKE

$5.99

$

In Stock, Qty 15

0

21

Kohler 14 187 20-S

ARM ASSY,AUTO CHOKE-USE 14 187 22-S
(Superseded to 14 187 22-S)

$36.99

$

In Stock, Qty 11

0

23

Kohler 14 032 10-S

SEAL, FUEL CAP

$

$

Not available

NI

Kohler 14 755 30-S

KIT, HIGH ALTITUDE (4,000-8000 FT)

$12.99

$

Usually ships in 2-5 days

0
