XT775-3035 - Kohler XT Series Engine, Made for Viking, 7.75 ft-lbs, 173cc Cylinder Head/Breather Group XT775-3035 XT775 Parts Diagram

XT Series Engine, Made for Viking, 7.75 ft-lbs, 173cc

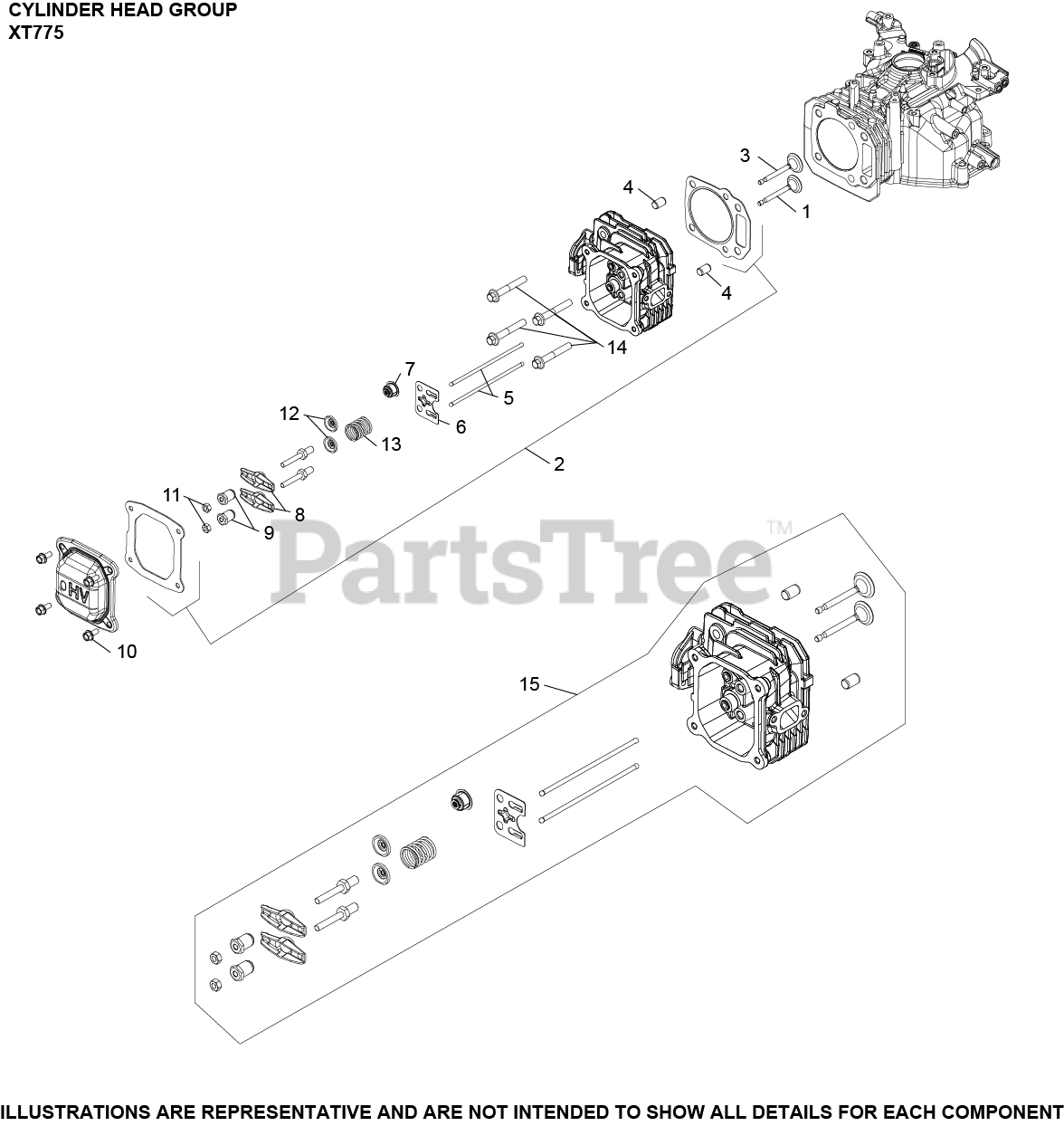

Cylinder Head/Breather Group XT775-3035 XT775 Parts Diagram

  • Title

1

Kohler 14 016 01-S

VALVE, EXHAUST

$26.99

$

Usually ships in 2-5 days

0

2

Kohler 14 841 34-S

KIT, HEAD GASKET

$24.99

$

In Stock, only 1 left!

0

3

Kohler 14 017 01-S

VALVE, INTAKE

$22.99

$

In Stock, only 1 left!

0

4

Kohler 14 380 13-S

DOWEL, CYLINDER HEAD

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 14 411 01-S

ROD, PUSH
(Superseded to 17 411 08-S)

$6.99

$

In Stock, only 4 left!

0

6

Kohler 14 146 01-S

PLATE, PUSHROD GUIDE

$6.99

$

In Stock, only 2 left!

0

7

Kohler 14 032 08-S

SEAL, VALVE STEM

$3.99

$

In Stock, only 2 left!

0

8

Kohler 14 186 02-S

ARM, ROCKER

$8.99

$

In Stock, only 2 left!

0

9

Kohler 14 599 01-S

PIVOT, ROCKER ARM

$2.99

$

In Stock, only 2 left!

0

10

Kohler 25 086 433-S

SCREW, HEX FLANGE (M6) (CKY)

$

$

Not available

11

Kohler 14 100 01-S

NUT, HEX JAM

$2.99

$

In Stock, only 2 left!

0

12

Kohler 14 018 02-S

RETAINER, VALVE SPRING

$6.99

$

In Stock, only 2 left!

0

13

Kohler 14 089 02-S

SPRING, VALVE

$5.99

$

In Stock, only 2 left!

0

14

Kohler 25 086 140-S

SCREW, HEX FLANGE M8

$2.99

$

In Stock, only 1 left!

0

15

Kohler 14 755 02-S

KIT, VALVE TRAIN
(Superseded to 14 755 46-S)

$89.99

$

In Stock, only 1 left!

0

1431810-S

Kohler 14 318 10-S

HEAD, CYLINDER

Note: NOT ILLUSTRATED

$140.99

$

In Stock, only 1 left!

0

14096130-S

Kohler 14 096 130-S

COVER, VALVE

Note: NOT ILLUSTRATED

$14.99

$

Usually ships in 2-5 days

0
