YT 160 (954000582-A) - Husqvarna Yard Tractor (1993-01) 42" Mower Parts Diagram

Yard Tractor

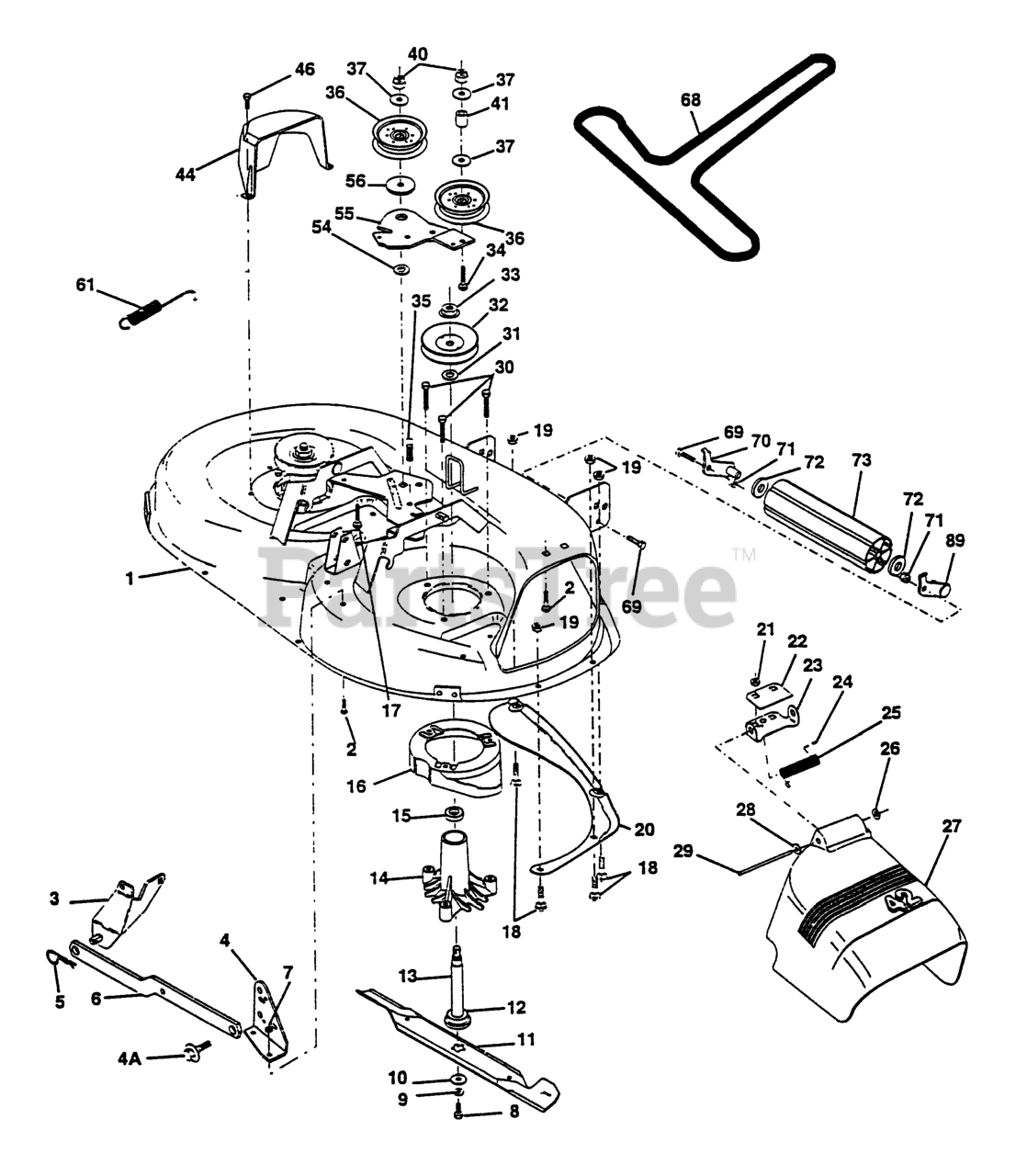

42" Mower Parts Diagram

  • Title

1

Husqvarna 532138024

Deck Asm MWR 42" weldment
(Superseded to 532145338)

$358.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18unc X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr Sway Bar 38/42

$12.99

$

In Stock, Qty 10

0

4

Husqvarna 532138440

Bracket Asm Deck 42"sway Bar

$6.49

$

Usually ships in 3-10 days

0

4A

Husqvarna 532132827

Bolt Shoulder

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532130832

Arm Suspension Rear
(Superseded to 532130833)

$8.99

$

In Stock, Qty 5

0

7

Husqvarna 873800500

Locknut-hex W/ins 5/16-18unc P

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

Bolt 3/8-24x1 25 Gr8 Patched

$3.99

$

In Stock, Qty 14

0

9

Husqvarna 810030600

Washer Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532129962

Washer Hard Blade Mower Vented
(Superseded to 532140296)

$6.49

$

In Stock, only 4 left!

0

11

Husqvarna 532138498

Blade Mower High Perf 42"
(Superseded to 532138971)

$14.99

$

In Stock, Qty 20+

0

12

Husqvarna 532129895

Bearing Ball #6204 (Mandrel)

$10.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$26.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

Housing Mandrel Vented(machd)

$31.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

Bearing Ball Mandrel

$10.99

$

In Stock, Qty 20+

0

16

Husqvarna 532136929

Stripper Mower Vented
(Superseded to 532140329)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110616

Bolt Rdhd Sqnk 3/8-16 X 2

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt Carr 5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 873800500

Locknut-hex W/Ins 5/16-18unc P

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532136888

Baffle Vortex 42
(Superseded to 532159770)

$

$

Not available

21

Husqvarna 873680500

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

Stiffener Bracket 42" deck
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532131267

Bracket Deflector Mower 42"
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

Cap Sleeve 80x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring Torsion Deflector 2 52

$5.99

$

In Stock, Qty 9

0

26

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532130968

Shield Deflector Mower 42" Blk

$34.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 X 5/8 X 16 Ga

$0.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod Hinge 42" 6 75 Wig
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 532078158

Bolt 5/16-18 X 1 25 T/t
(Superseded to 817580520)

$5.99

$

In Stock, only 3 left!

0

31

Husqvarna 532129963

Washer Spacer Mower Vented
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 532129861

Pulley Mandrel 42"
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

Nut 9/16top Lock Flng Cntr
(Superseded to 532139729)

$8.99

$

In Stock, only 1 left!

0

34

Husqvarna 872110622

Bolt Rdhd 3/8-16uncx2-3/4 Gr5

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532131494

Pulley Idler Flat 3 060
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

Washer 13/32 X 13/16 X 16Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532132823

Spacer Spring Stop Idler

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532134236

Guard Mandrel LH Black
(Superseded to 532140088)

$26.99

$

In Stock, Qty 12

0

46

Husqvarna 532137729

Screw Thdrol 1 /4-20x5/8

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532133943

Washer Hardened
(Superseded to 532178515)

$6.49

$

In Stock, Qty 20+

0

55

Husqvarna 532133844

Arm Idler 42" mower LT/YT
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Husqvarna 532122052

Spacer Retainer Pm Mower
(Superseded to 532165723)

$6.49

$

In Stock, Qty 11

0

61

Husqvarna 532131950

Spring Ext. Elect

$8.99

$

In Stock, Qty 8

0

68

Husqvarna 532130969

V-Belt Mower 42" 92 40

$31.99

$

In Stock, Qty 20+

0

69

Husqvarna 874760616

Bolt Fin Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532132274

Bracket Asm Noseroller LH
(Superseded to 532175746)

$7.49

$

In Stock, Qty 9

0

71

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

72

Husqvarna 819171416

Washer 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 13

0

73

Husqvarna 532132264

Roller Nose 38 & 42

$44.99

$

In Stock, Qty 20+

0

89

Husqvarna 532132273

Bracket Asm Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

Husqvarna 532138506

Deck Serv 42" Elec Vent
(Superseded to 532176207)

Note: (Standard Deck - Order Nose Roller components separately Key Nos. 69-73 and 89)

$789.99

$

Usually ships in 3-10 days

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Key Numbers 8-10, 12-15, 31 and 33)

$44.99

$

In Stock, Qty 20+

0
