YT 160 (954000582-A) - Husqvarna Yard Tractor (1993-01) Engine Parts Diagram

Yard Tractor

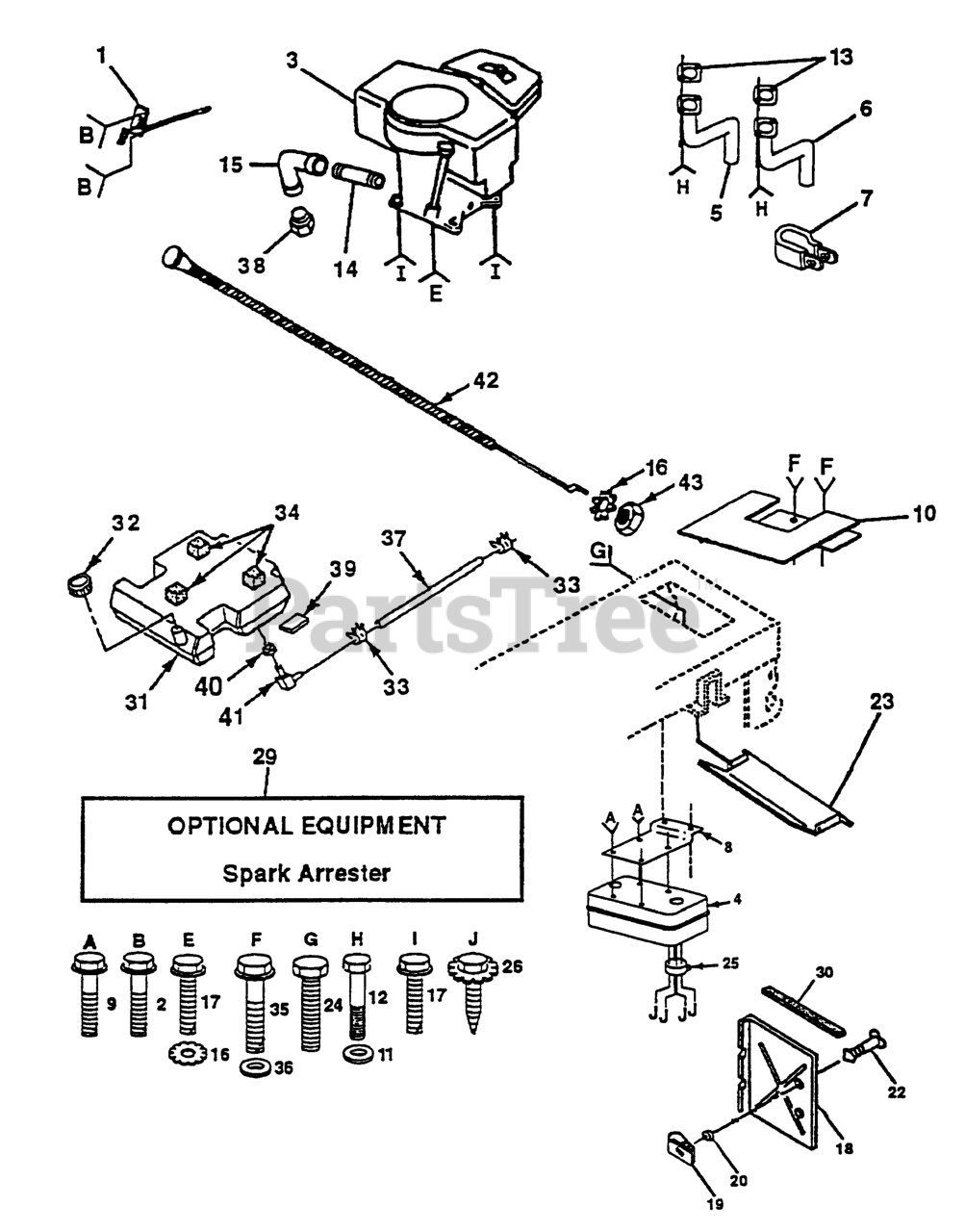

Engine Parts Diagram

  • Title

1

Husqvarna 532132748

CONTROL.THROT.RH.BLK.FLG.44.75

$

$

Not available

2

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

3

Engine B&S, Model No. 303777

$

$

Not available

4

Husqvarna 532122440

MUFFLER

$

$

Not available

5

Husqvarna 532122434

TUBE ASSY EXH LH

$

$

Not available

6

Husqvarna 532122435

TUBE ASSY EXH RH

$

$

Not available

7

Husqvarna 532138129

CLAMP

$

$

Not available

8

Husqvarna 532122439

BRACKET MUFFLER

$

$

Not available

9

Husqvarna 817190408

SCREW ST
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

10

Husqvarna 532128199

HEAT SHIELD
(Superseded to 532145552)

$

$

Not available

11

Washer Lock Hvy Hlcl 1/4

Note: (Order from Engine Manufacturer)

$

$

Not available

12

Bolt, Fin Hex 1/4-20 x 3/4

Note: (Order from Engine Manufacturer)

$

$

Not available

13

Muffler Gasket

Note: (Order from Engine Manufacturer)

$

$

Not available

14

Husqvarna 813280336

Nipple Pipe 3/8 Npt X 4-1/2"

$

$

Not available

15

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532133746

HEAT SHIELD
(Superseded to 532133747)

$

$

Not available

19

Husqvarna 532105839

RECEPTACLE LT

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532105838

RETAINER LT

$

$

Not available

22

Husqvarna 532123650

STUD 1/4 TURN

$

$

Not available

23

Husqvarna 532128953

HEAT SHIELD

$

$

Not available

24

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

26

Husqvarna 817030808

SCREW
(Superseded to 532161464)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

30

Husqvarna 532105037

FOAM-STRIP LT

$

$

Not available

31

Husqvarna 532127383

TANK, FUEL/SENSOR

$

$

Not available

32

Husqvarna 532123549

GAS CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 10

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532008543

FUEL LINE 54"
(Superseded to 587044854)

$22.99

$

In Stock, only 4 left!

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

39

Husqvarna 532109277

IDLER PAD
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532139277

STEM FUEL TANK

$7.99

$

In Stock, Qty 20+

0

42

Husqvarna 532132781

CHOKE CONTROL

$

$

Not available

43

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available
