YT 160 (954000582-A) - Husqvarna Yard Tractor (1993-01) Seat Assembly Parts Diagram

Yard Tractor

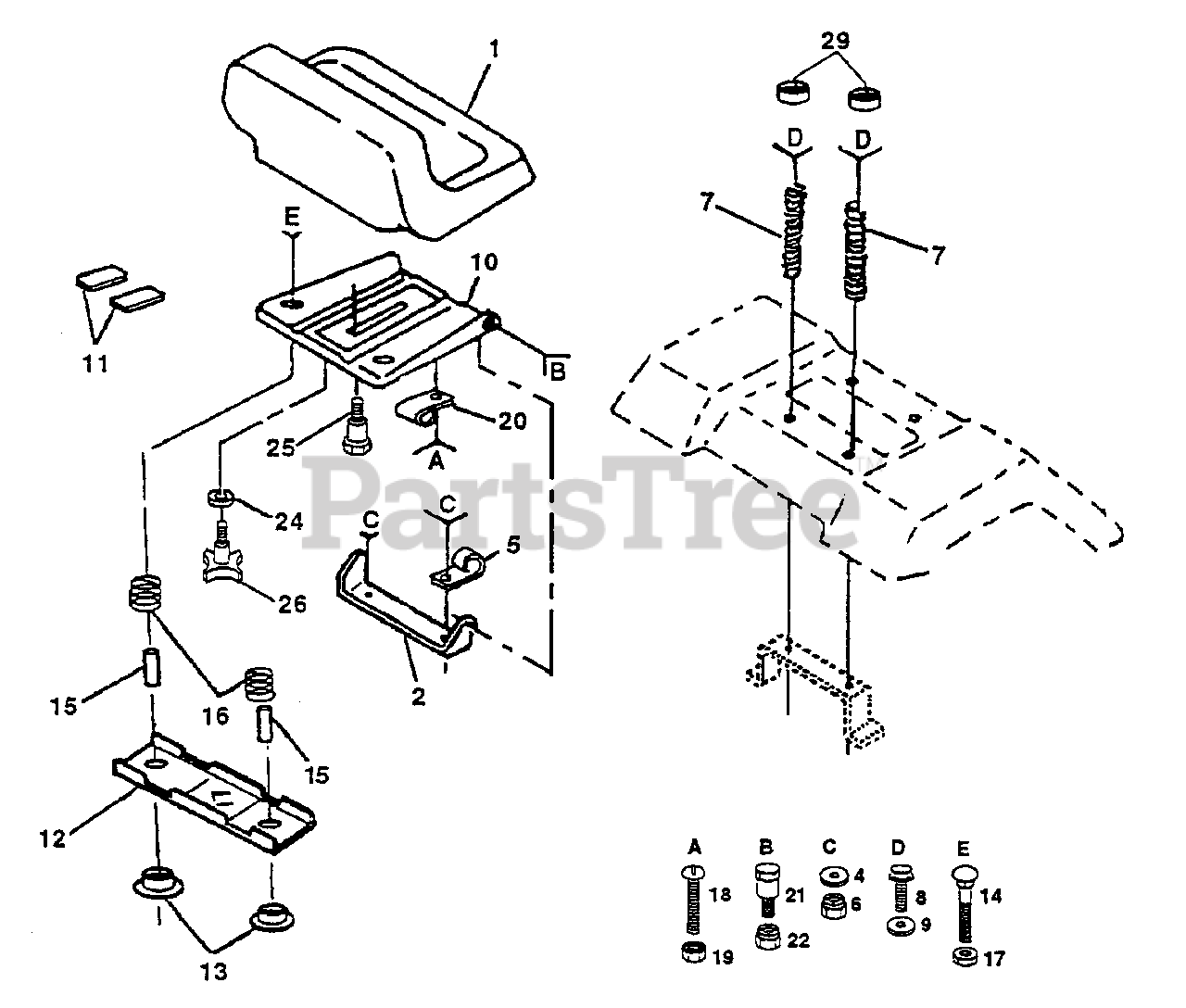

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532124186

Seat V-550 Gry/blk Std
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532126656

Bracket Pivot Seat 8 720

$

$

Not available

4

Husqvarna 819131210

Washer 13/32 X 3/4 X 10 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 532124996

Clip Line Fuel 13/32 Mtg Hole
(Superseded to 532002751)

$

$

Not available

6

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn 2 250 Blk ZI
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

8

Husqvarna 817490508

Screw Hwsh Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819131614

Washer 13/32 X 1 X 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532131451

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532121251

Strip Foam Gray Or Black

$

$

Not available

12

Husqvarna 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050411

Bolt Rdhd Sht Nk 1/4-20x1-3/8

$

$

Not available

15

Husqvarna 532121249

Spacer Split 28x 88 Yel Zinc

$6.49

$

In Stock, Qty 5

0

16

Husqvarna 532123740

Spring Cprsn 1 310 Blk Pnt

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut Lock 1/4 Lge Rg Gr 5 Zinc
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 874641008

Screw SLTD Pan Hd #10-32 X 1/2

$2.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873951000

Nut Keps #10-32 Unt

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124967

Clip Insulated 11/32 Mtg Hole

$

$

Not available

21

Husqvarna 532105529

Bolt Shoulder 5/16-18 Unc Blkz
(Superseded to 532139888)

$6.49

$

In Stock, Qty 9

0

22

Husqvarna 873680500

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

Washer 17/32 X 1-3/16 X 12 Ga

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 532127018

Bolt Shoulder 5/16-18 X 62

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532120068

Knob Seat 1/2-13unc Blk
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

29

Husqvarna 532124238

Cap Spring Seat

$

$

Not available
