YTH 180 (954820141-A) - Husqvarna Yard Tractor (1998-12) ELECTRICAL Parts Diagram

Yard Tractor

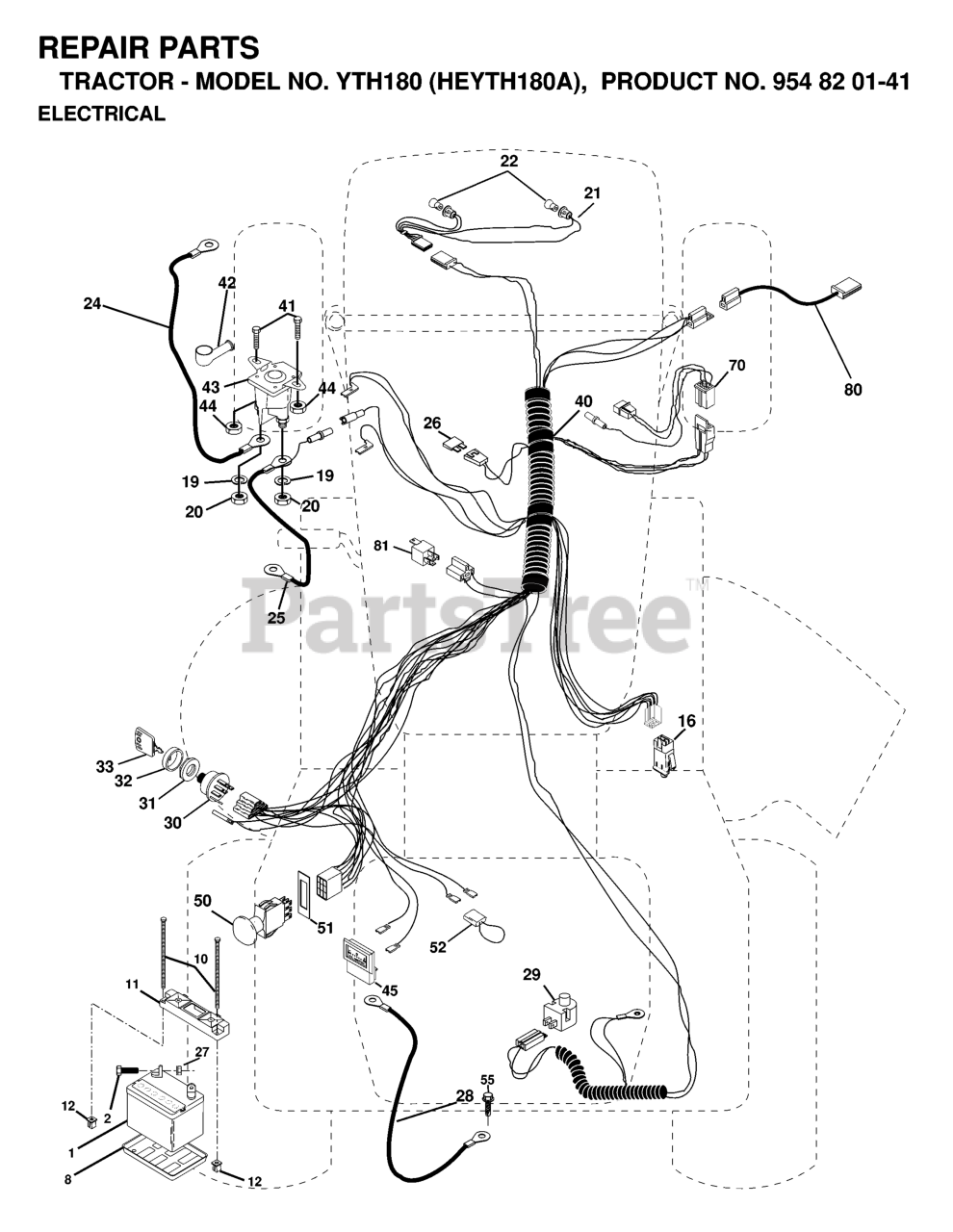

ELECTRICAL Parts Diagram

  • Title

31

Husqvarna 532124211

NUT IGNITION

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532154959

SWITCH PTO 3 PDT
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

70

Husqvarna 532143346

HARNESS

$

$

Not available

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$18.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532122822

AMMETER

$18.99

$

In Stock, only 1 left!

0

30

Husqvarna 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 3 left!

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532146148

CABLE BATTERY 6 GA 22" W/16W

$18.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532140405

FRAME RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

40

Husqvarna 532160720

HARNESS.IGNITION

$

$

Not available

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

81

Husqvarna 532109748

RELAY.ASSY.T

$34.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

33

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

44

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

In Stock, only 1 left!

0

80

Husqvarna 532146685

HARNESS, CLUTCH

$26.99

$

In Stock, only 3 left!

0

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0
