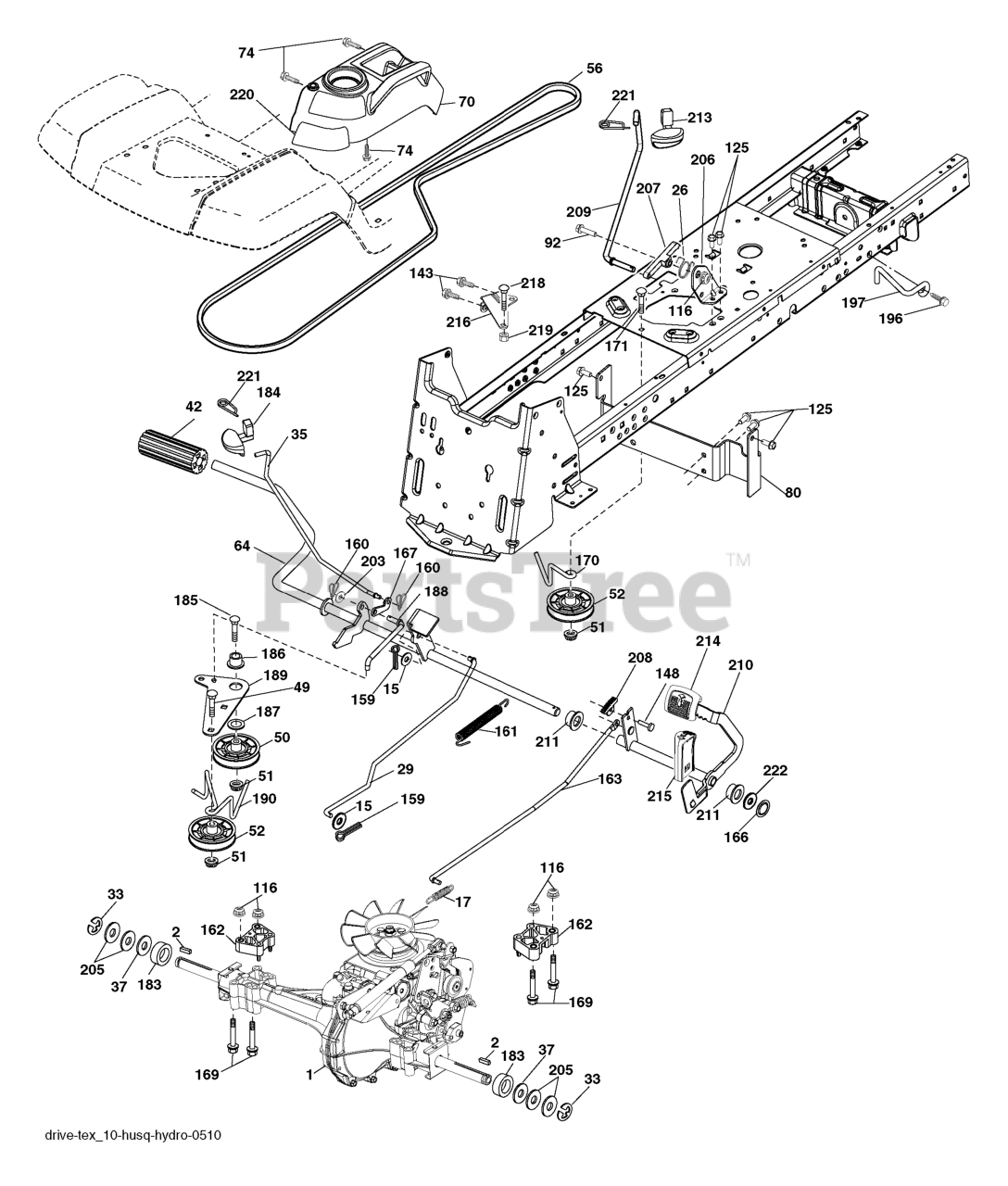

YTH 2448 T (960430008-00) - Husqvarna 48" Yard Tractor (2006-03) Drive Parts Diagram

48" Yard Tractor

Drive Parts Diagram

  • Title

1

Transaxle, Hydro 344-0510

Note: (Order Parts from Transaxle Manufacturer)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, Qty 7

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532199467

ROD.BRAKE.0610.PEDAL.CONTROL

$62.99

$

Usually ships in 3-10 days

0

33

Husqvarna 812000001

E-RING LT

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 532199591

ROD.BRAKE.PARKING.GT.H
(Superseded to 583864502)

$14.99

$

In Stock, only 4 left!

0

37

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 1 left!

0

49

Husqvarna 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$21.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$23.99

$

In Stock, Qty 20+

0

56

Husqvarna 532140218

V-BELT.

$83.99

$

In Stock, Qty 18

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$59.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532400530

RP CONSOLE.ASM.PCH.W/TB
(Superseded to 532439661)

$107.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.99

$

In Stock, Qty 14

0

80

Husqvarna 532400507

BRKT.STRP.TRQ.LT.HYD.C

$

$

Not available

92

Husqvarna 874760520

BOLT
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

148

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

Husqvarna 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 6

0

161

Husqvarna 532195403

SPRING.RETURN.CLUTCH.2006
(Superseded to 532105709)

$14.99

$

In Stock, Qty 20+

0

162

Husqvarna 532195785

SPACER.TRANSAXLE.18&22
(Superseded to 580457401)

$17.99

$

In Stock, only 1 left!

0

163

Husqvarna 532199000

ROD.PEDAL.CONTROL.0510

$

$

Not available

166

Husqvarna 532197290

NUT.PUSH.625.2006
(Superseded to 532429164)

$4.99

$

In Stock, Qty 20+

0

167

Husqvarna 532196211

LATCH.BRAKE.SPRING
(Superseded to 531152901)

$3.99

$

In Stock, Qty 13

0

169

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$5.99

$

In Stock, only 4 left!

0

170

Husqvarna 532194322

KEEPER.V-IDLER.CENTER.

$6.99

$

In Stock, Qty 10

0

171

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 13

0

184

Husqvarna 532403118

HANDLE.PARKG.BRK.HUSQ X667
(Superseded to 532196439)

$14.99

$

In Stock, Qty 17

0

185

Husqvarna 872110620

BOLT
(Superseded to 596435101)

$3.99

$

In Stock, only 1 left!

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.99

$

In Stock, Qty 20+

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, only 2 left!

0

188

Husqvarna 532194323

RP.LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 11

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.
(Superseded to 531169001)

$8.49

$

Usually ships in 3-10 days

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$6.99

$

In Stock, Qty 19

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

197

Husqvarna 532199769

BRKT.ANIT-ROTATION.CLUTCH

$8.49

$

In Stock, Qty 9

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

206

Husqvarna 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$5.99

$

Usually ships in 3-10 days

0

207

Husqvarna 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031402)

$8.49

$

Usually ships in 3-10 days

0

208

Husqvarna 532197869

GEAR.SECTOR.CONTROL.CR
(Superseded to 596564101)

$5.99

$

In Stock, only 2 left!

0

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.
(Superseded to 596869801)

$29.99

$

In Stock, only 2 left!

0

210

Husqvarna 532197860

ROCKER.ASM.PEDAL.CONTR

$65.99

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 1 left!

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$11.99

$

In Stock, Qty 6

0

214

Husqvarna 532401722

PEDAL.FORWARD.TEX.GT.4
(Superseded to 532421263)

$7.99

$

In Stock, Qty 8

0

215

Husqvarna 532401723

PEDAL.REVERSE.TEX.GT.4

$17.99

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$8.49

$

In Stock, only 1 left!

0

218

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

219

Husqvarna 532195780

SPACER.FENDER

$

$

Not available

220

Husqvarna 532198908

REFLECTOR.RH.TEX GT

$21.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$4.99

$

In Stock, Qty 15

0

222

Husqvarna 819212012

Washer Flat

$

$

Currently unavailable
