Z-200 (53BA1A6M190) - White Outdoor 48" Zero-Turn Mower (1999) 48 inch Mulching Kit Parts Diagram

48" Zero-Turn Mower

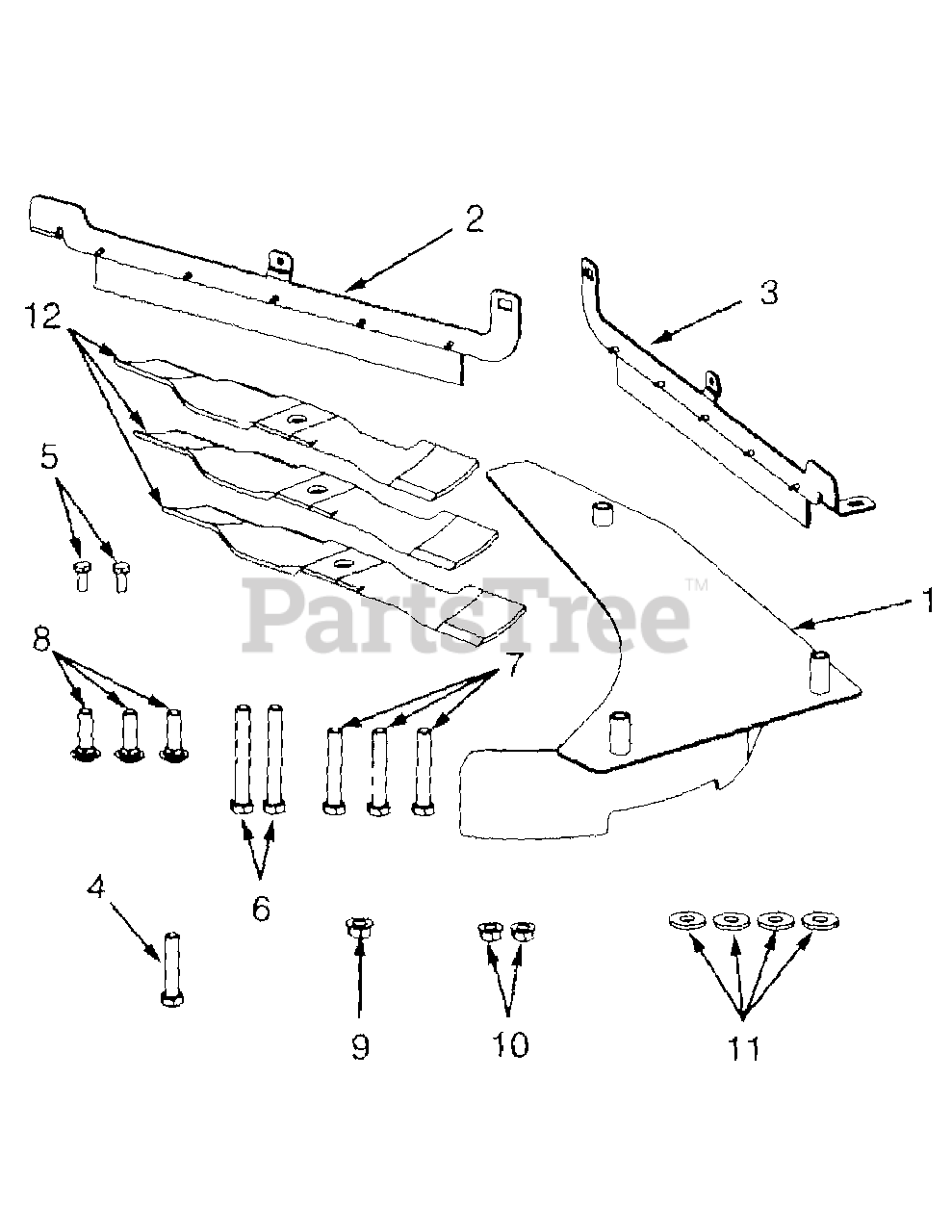

48 inch Mulching Kit Parts Diagram

  • Title

1

White Outdoor 603-0395

Baffle Ass'y, 48" Mulching
(Superseded to 603-0395-0637)

Variations

603-0395-0498

White Outdoor 603-0395-0498

BAFFLE ASSY - OLD CUB YELLOW (0498)

$

$

Not available

603-0395-0637

White Outdoor 603-0395-0637

BAFFLE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 603-0439

Bracket Ass'y, Rubber Flap/Mtg LN

Variations

603-0439-0498

White Outdoor 603-0439-0498

BRACKET ASSY-W/FLAP - OLD CUB YELLOW (0498)

$198.99

$

Usually ships in 3-6 days

0

603-0439-0637

White Outdoor 603-0439-0637

BRACKET ASSY-W/FLAP - POWDER BLACK (0637)

$198.99

$

Usually ships in 3-6 days

0

$198.99

$

Usually ships in 3-6 days

0

3

White Outdoor 603-0440

Bracket Ass'y, Rubber Flap/Mtg RH

Variations

603-0440-0637

White Outdoor 603-0440-0637

BRACKET ASSY-W/FLAP - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-3011

Screw, Hex Cap, 3/8-16 x 2.25 GR

$7.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-3037

Screw, Hex Cap, 3/8-16 x 1.75
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-3052

Washer, Flat, .406 X 1.0 X .105

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 742-3028

Blade, Mulching, 16.5 Lg
(Superseded to 759-3856)

$

$

Not available
