Z-200 (53BA1A6M190) - White Outdoor 48" Zero-Turn Mower (1999) Seat Assembly Parts Diagram

48" Zero-Turn Mower

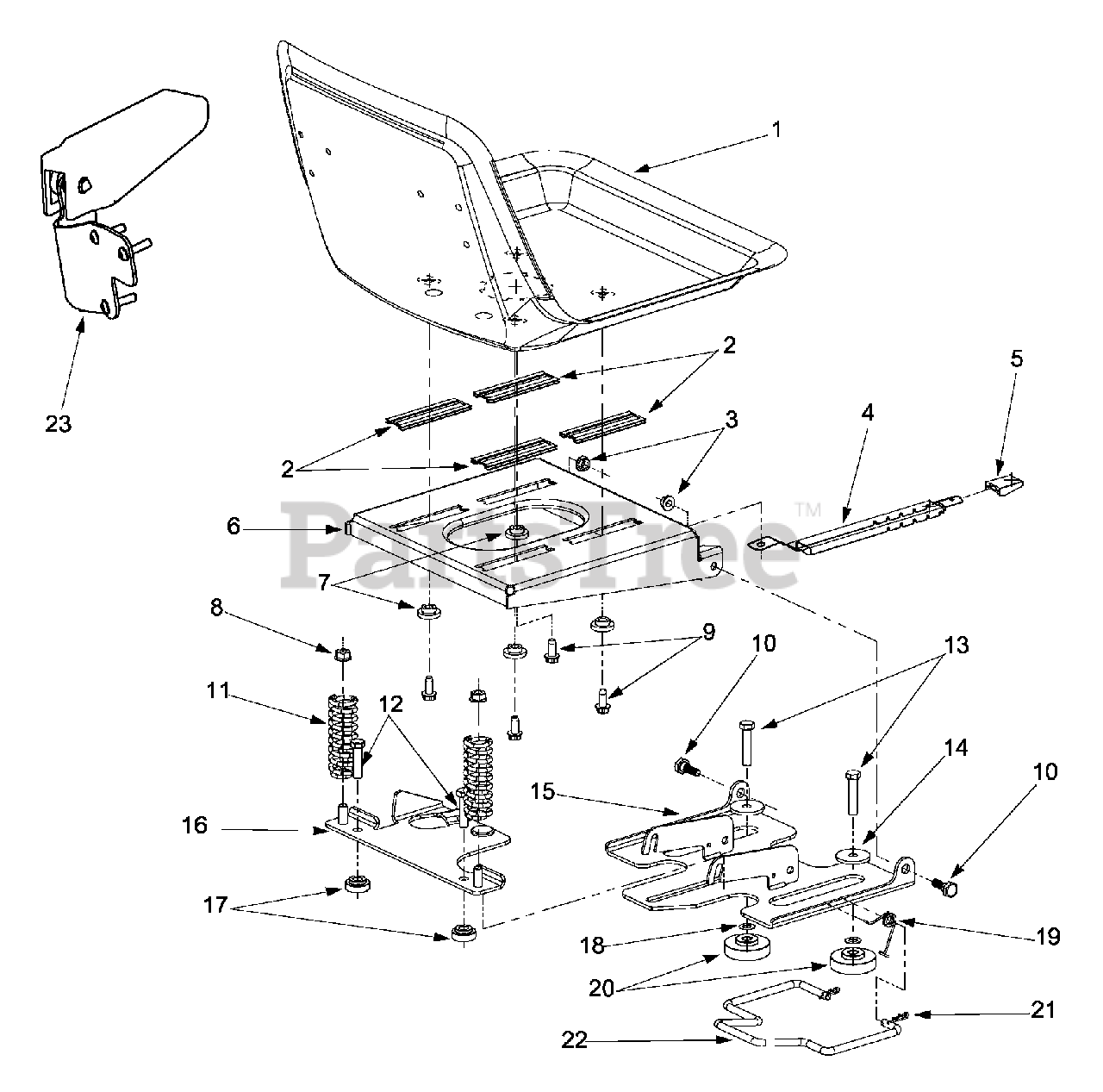

Seat Assembly Parts Diagram

  • Title

1

White Outdoor 757-0375

Seat Assembly
(Superseded to 957-0375B)

$

$

Not available

2

White Outdoor 731-3154

Seat Slide

$

$

Not available

3

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

4

White Outdoor 732-3098

Spring Index

$

$

Not available

5

White Outdoor 720-0190

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

6

White Outdoor 603-0294

Bracket Assembly

Variations

White Outdoor 603-0294-0637

BRACKET ASSY: SEATBASE - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$8.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-3005

Flange Lock Nut 3/8-16

$6.49

$

Usually ships in 3-6 days

0

9

White Outdoor 710-1260A

Hex Washer Screw 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

10

White Outdoor 738-0296

Shoulder Screw

$3.99

$

In Stock, Qty 13

0

11

White Outdoor 732-3080

Compression Spring 1.28 OD x 3.5
(Superseded to 732-3080A)

$12.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-0520

Hex Cap Screw 3/8-16 x 1.5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0347

Hex Cap Screw 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 736-0227

Flatwasher

$5.99

$

In Stock, Qty 20+

0

15

White Outdoor 603-0470

Seat Bracket Assembly

Variations

White Outdoor 603-0470-0637

BRACKET-SEAT MOUNT - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 603-0318A

Seat Spring Plate Assembly

Variations

White Outdoor 603-0318A-0637

No Longer Available PLATE-SEAT SPRG MT - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 738-3156

Shoulder Spacer

$

$

Not available

18

White Outdoor 736-0314

Thrust Washer

$6.49

$

Usually ships in 3-6 days

0

19

White Outdoor 732-0827

Torsion Spring

$

$

Not available

20

White Outdoor 738-3166

Shoulder Spacer

$

$

Not available

21

White Outdoor 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 747-3342

Rod

$

$

Not available

23

White Outdoor 757-3009

Seat Arm (Set of Two)

Note: Optional

$

$

Not available
