Z2-7 - Husqvarna Z Grass Catcher (2003-04) Assembly 540200800 Parts Diagram

Z Grass Catcher

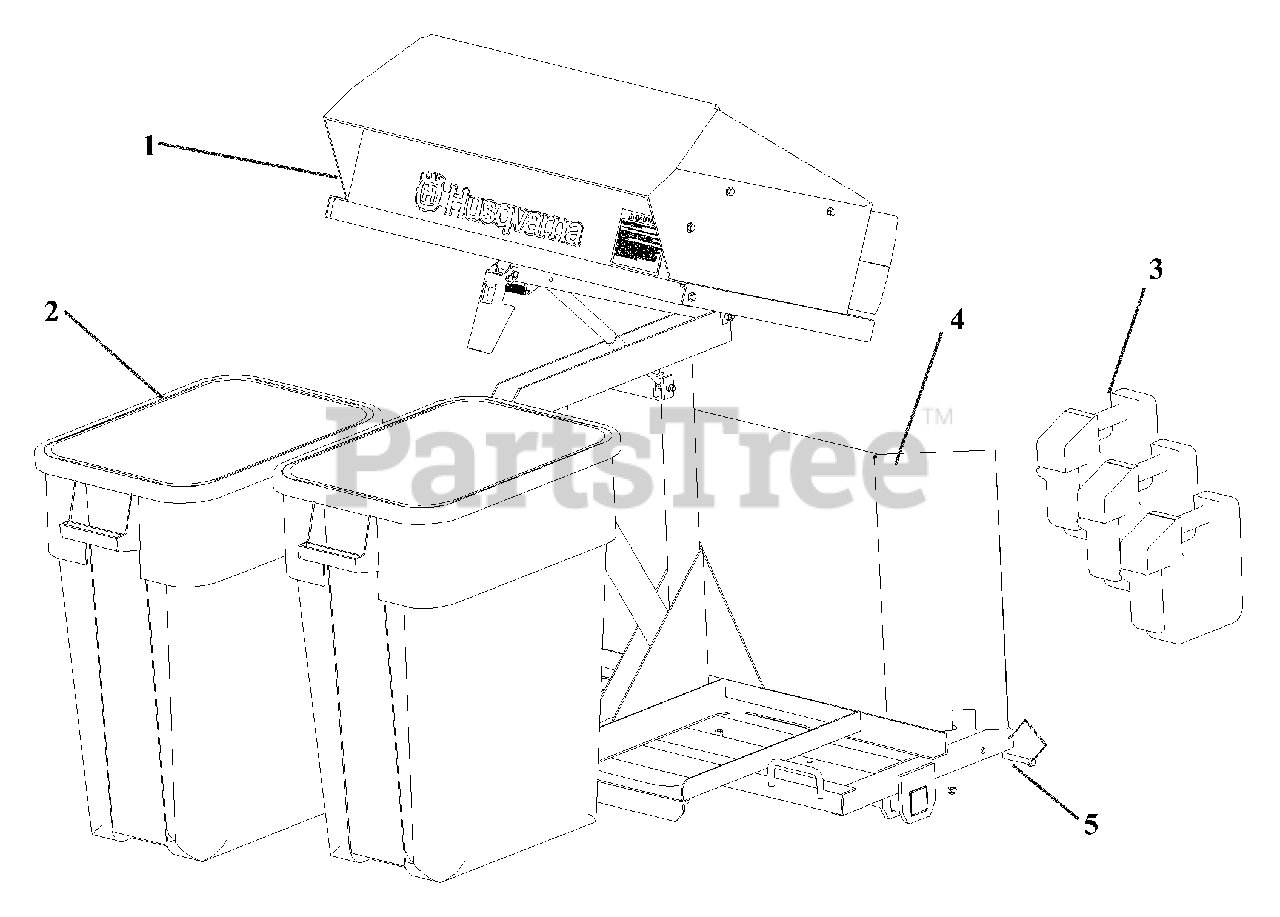

Assembly 540200800 Parts Diagram

  • Title

1

Husqvarna 540200853

Frame/Top Assembly

$

$

Not available

2

Husqvarna 540093817

Container, 30 Gal.

$

$

Not available

3

Husqvarna 540092531

Front Weight
(Superseded to 539092531)

$133.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540092767

Heat Shield

$

$

Not available

Husqvarna 540200854

Small Parts Kit

Note: Not shown; Including:

$

$

Currently unavailable

Husqvarna 540200855

Manual

Note: Not shown

$

$

Currently unavailable

5

Husqvarna 540099693

Pin, Wire Lock

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 540093961

Ear Plugs

Note: Not shown

$

$

Currently unavailable

Husqvarna 540099077

Bolt, Hex, 5/16"-18 x 1"

Note: Not shown

$

$

Currently unavailable

Husqvarna 540000413

Washer, Flat, 5/16"

Note: Not shown

$

$

Currently unavailable

Husqvarna 540099079

Nut, Hex, Nylon Lock, 5/16"-18
(Superseded to 539990717)

Note: Not shown

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 540200800

Assembly
(Superseded to 539200800)

$1025.99

$

Usually ships in 3-10 days

0
