ZT740-3060 - Kohler Confidant Engine, Made for Toro, 25hp, 747cc 02 CrankCase Parts Diagram

Confidant Engine, Made for Toro, 25hp, 747cc

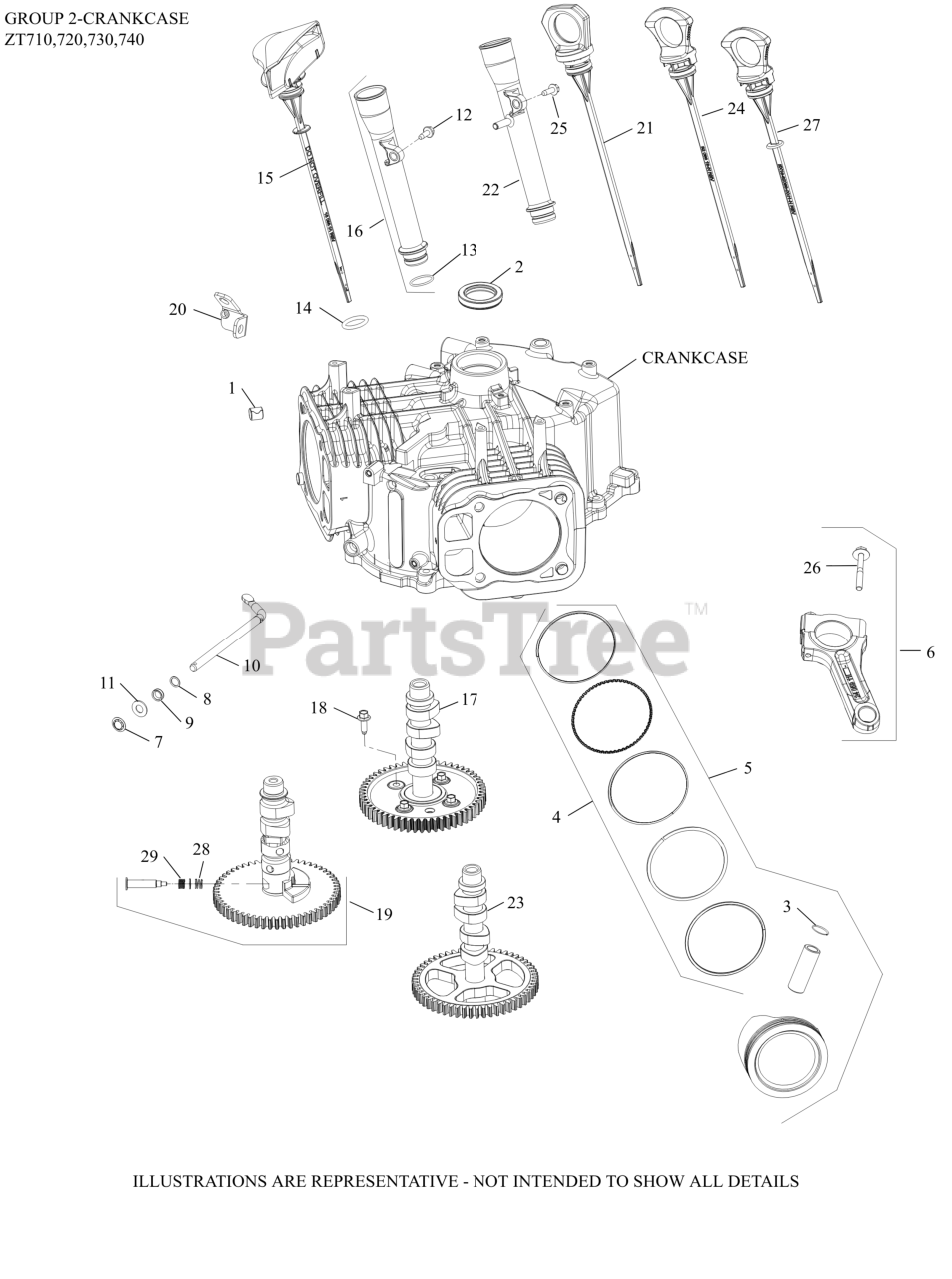

02 CrankCase Parts Diagram

  • Title

1

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 8

0

2

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

3

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.49

$

In Stock, only 2 left!

0

4

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

In Stock, only 2 left!

0

4

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm RING THICK

$25.99

$

In Stock, only 1 left!

0

4

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$25.99

$

Usually ships in 2-5 days

0

4

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$102.99

$

Usually ships in 2-5 days

0

5

Kohler 25 874 14-S

KIT,PSTN/RNG STYLE B(STD)

$174.99

$

In Stock, only 1 left!

0

5

Kohler 25 874 18-S

KIT,PSTN/RNG STYLE B(.08)

$206.99

$

Usually ships in 2-5 days

0

5

Kohler 25 874 19-S

KIT,PSTN/RNG STYLE B(.25)

$252.99

$

Usually ships in 2-5 days

0

5

Kohler 25 874 20-S

KIT,PSTN/RNG STYLE B(.50)

$249.99

$

Usually ships in 2-5 days

0

6

Kohler 25 067 04-S

ROD, ASSEMBLY CONNECTING

$59.99

$

In Stock, Qty 17

0

8

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 9

0

9

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 19

0

10

Kohler 32 755 22-S

KIT, CROSS SHAFT

$4.49

$

Usually ships in 2-5 days

0

11

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 9

0

13

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 7

0

14

Kohler 25 153 09-S

O-RING

$3.49

$

In Stock, Qty 5

0

16

Kohler 32 123 14-S

TUBE ASSEMBLY, OIL FILL

$6.99

$

In Stock, only 1 left!

0

20

Kohler 24 126 243-S

BRACKET, OIL FILL TUBE

$11.99

$

In Stock, only 1 left!

0

23

Kohler 32 010 07-S

CAMSHAFT ASSY

$83.99

$

In Stock, Qty 12

0

24

Kohler 32 038 14-S

DIPSTICK, ASSY

$9.49

$

In Stock, Qty 5

0

25

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

26

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 4 left!

0
