1334 - Simplicity Pacer Series 34" Walk-Behind Mower Transaxle, Mount & Drive Idler Group (7104tmig) Parts Diagram

Pacer Series 34" Walk-Behind Mower

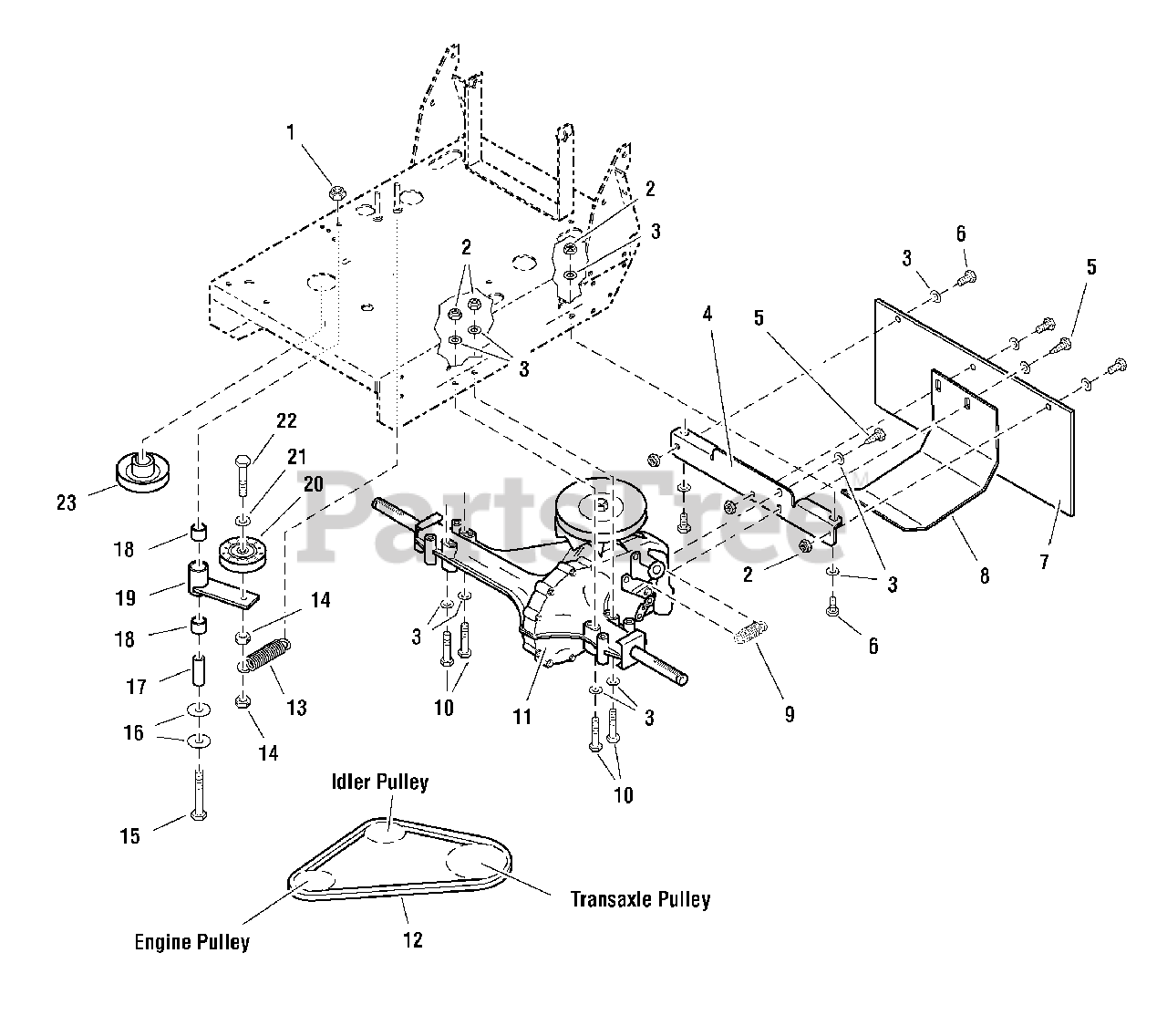

Transaxle, Mount & Drive Idler Group (7104tmig) Parts Diagram

  • Title

1

Simplicity 5025096SM

NUT, Hex Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 9

0

2

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5047582CSM

TRANSAXLE BRACE

$7.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025059X6SM

CAPSCREW, Hex Head, Self-Tapping, 5/16-18 x 3/4
(Superseded to 5025059X6FS)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 5047736SM

RUBBER FLAP

$54.99

$

Usually ships in 2-12 days

0

8

Simplicity 5048312CSM

SKID PLATE

$71.99

$

Usually ships in 2-12 days

0

9

Simplicity 5022967SM

HYDRO RETURN SPRING

$17.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X24SM

CAPSCREW, Hex Head, 5/16-18 x 3

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5022905SM

HYDROSTATIC TRANSAXLE
(Superseded to 5103121YP)

$1228.99

$

Usually ships in 2-12 days

0

12

Simplicity 5022968SM

BELT

$

$

Not available

13

Simplicity 5020807SM

SPRING, Extension

$8.99

$

In Stock, Qty 6

0

14

Simplicity 5025100SM

NUT, Hex, Side Lock, 3/8-16

$3.49

$

In Stock, Qty 11

0

15

Simplicity 5025013X24SM

CAPSCREW, Hex Head, 3/8-16 x 3

$4.49

$

In Stock, only 4 left!

0

16

Simplicity 5025165SM

WASHER, Fender, 3/8

$4.49

$

In Stock, Qty 14

0

17

Simplicity 5047716SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 5020876BSM

BUSHING, Brass

$11.99

$

In Stock, Qty 7

0

19

Simplicity 5047717CSM

TRANSAXLE IDLER ARM

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 5043627SM

IDLER PULLEY ASSEMBLY

$46.99

$

In Stock, only 1 left!

0

21

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 5025013X16SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 18

0

23

Simplicity 5047626SM

TRANSAXLE DRIVE PULLEY

$

$

Not available
