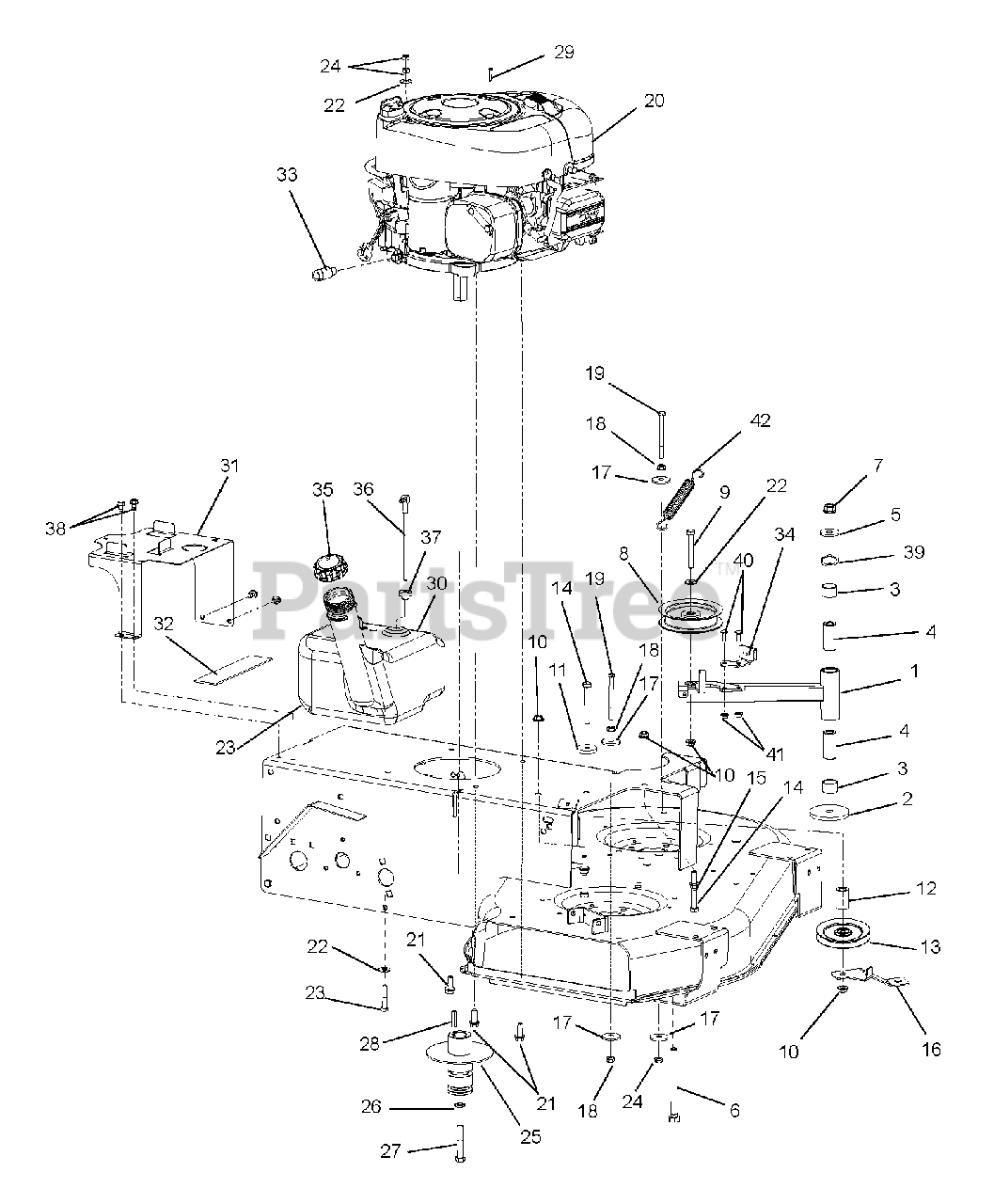

911372 (WAW 34) - Gravely 34" Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) > Parts Diagrams (12) > Engine, Clutch And Idler

  • Title
03938951

1

Weldment, PTO Idler Arm

Part# 03938951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $69.65

06400011

2

Washer, Flat .531 x 3.00 x .25

Part# 06400011

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

05435800

3

Bearing 1.00 x 1.12 x .75

Part# 05435800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

01581700

4

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

Part# 01581700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06436400

5

Washer, Flat Steel .511 x 1.44 x .125

Part# 06436400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05964100

6

Bolt, Hex .50-13 x 5.50

Part# 05964100

OEM Warranty Repair Part for Gravely

Not available

06543600

7

Nut, Locking Top Flange .50-13

Part# 06543600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07300039

8

Idler, Flat .38 x 4.00 x 1.06

Part# 07300039 (Superseded to 07350100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $44.66

05961400

9

Bolt, Hex .38-16 x 2.75

Part# 05961400 (Superseded to 05901611)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06542000

10

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400006

11

Washer, Flat Steel .406 x 1.50 x .245

Part# 06400006

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05501003

12

Spacer, .437 x 1.00 x 1.23

Part# 05501003

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

07300528

13

Idler, 4.00 x .38

Part# 07300528

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $39.07

05957800

14

Bolt, Hex .38-16 x 3.00

Part# 05957800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06534900

15

Nut, Flange .375-16

Part# 06534900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

01286751

16

Bracket, Idler Brace

Part# 01286751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.47

06442400

17

Washer, Flat Steel .406 x 1.375 x .135

Part# 06442400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06530400

18

Nut, Spin-Lock Flange .312-18

Part# 06530400

OEM Warranty Repair Part for Gravely

Not available

05948000

19

Bolt, Hex .31-18 x 3.50

Part# 05948000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08200620

20

Engine, Briggs & Stratton, 14.5Hp

Part# 08200620

OEM Warranty Repair Part for Gravely

Not available

07414100

21

Screw, Hex Washer Head Tapping .38-16 x 1.00 (Torque = 374 – 562 lbf-in (42.26 – 63.5 Nm))

Part# 07414100

Note: (Torque = 374 – 562 lbf-in (42.26 – 63.5 Nm))

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06435700

22

Washer, Flat Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05957400

23

Bolt, Hex .31-18 x 1.75

Part# 05957400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06529800

24

Nut, Locking Center .31-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07332500

25

Pulley, Deck Drive

Part# 07332500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $97.10

06309300

26

Washer, Locking .44 x .109

Part# 06309300

OEM Warranty Repair Part for Gravely

Not available

05900036

27

Bolt, Hex .44-20 x 2.50 (Torque = 394 – 590 lbf-in (44.52 – 66.66 Nm))

Part# 05900036

Note: (Torque = 394 – 590 lbf-in (44.52 – 66.66 Nm))

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06603400

28

Key, Square .25 x 1.25 x .25

Part# 06603400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06100206

29

Screw, 8-16 x .87 Pan Head 3-Lobe (Use to attach 03276500 Engine Guard – Not Shown)

Part# 06100206

Note: (Use to attach 03276500 Engine Guard – Not Shown)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03965100

30

Tank, Fuel

Part# 03965100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

03985851

31

Bracket, Gas Tank Mount

Part# 03985851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $37.57

03988500

32

Pad, Gas Tank

Part# 03988500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03943600

33

Drain, Oil

Part# 03943600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

04457700

34

Brake Pad Assembly

Part# 04457700 (Superseded to 51115700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

01538400

35

Fuel Cap

Part# 01538400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

03798300

36

Assembly, Pickup, Fuel 6.5L

Part# 03798300 (Superseded to 04333600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

07511400

37

Bushing, Flange .375 x 1.062 x .625

Part# 07511400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

07411500

38

Screw, Tapping .31-18 x .50 Hex Washer Head

Part# 07411500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

09250700

39

Washer, Wave 1.09 x 1.37 x .016

Part# 09250700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06219900

40

Bolt, Round Head Square Neck .25-20 x .75 Grade 5

Part# 06219900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543500

41

Nut, Locking-Top-Flange .25-20

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

08334900

42

Spring, Engine, Transmission

Part# 08334900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

21602900

43

Spark Plug (not shown)

Part# 21602900

Note: (not shown)

OEM Warranty Repair Part for Gravely

Not available

21603000

44

Spring, Governor (not shown)

Part# 21603000

Note: (not shown)

OEM Warranty Repair Part for Gravely

Not available

21603100

45

Muffler Cage (not shown)

Part# 21603100

Note: (not shown)

OEM Warranty Repair Part for Gravely

Not available
