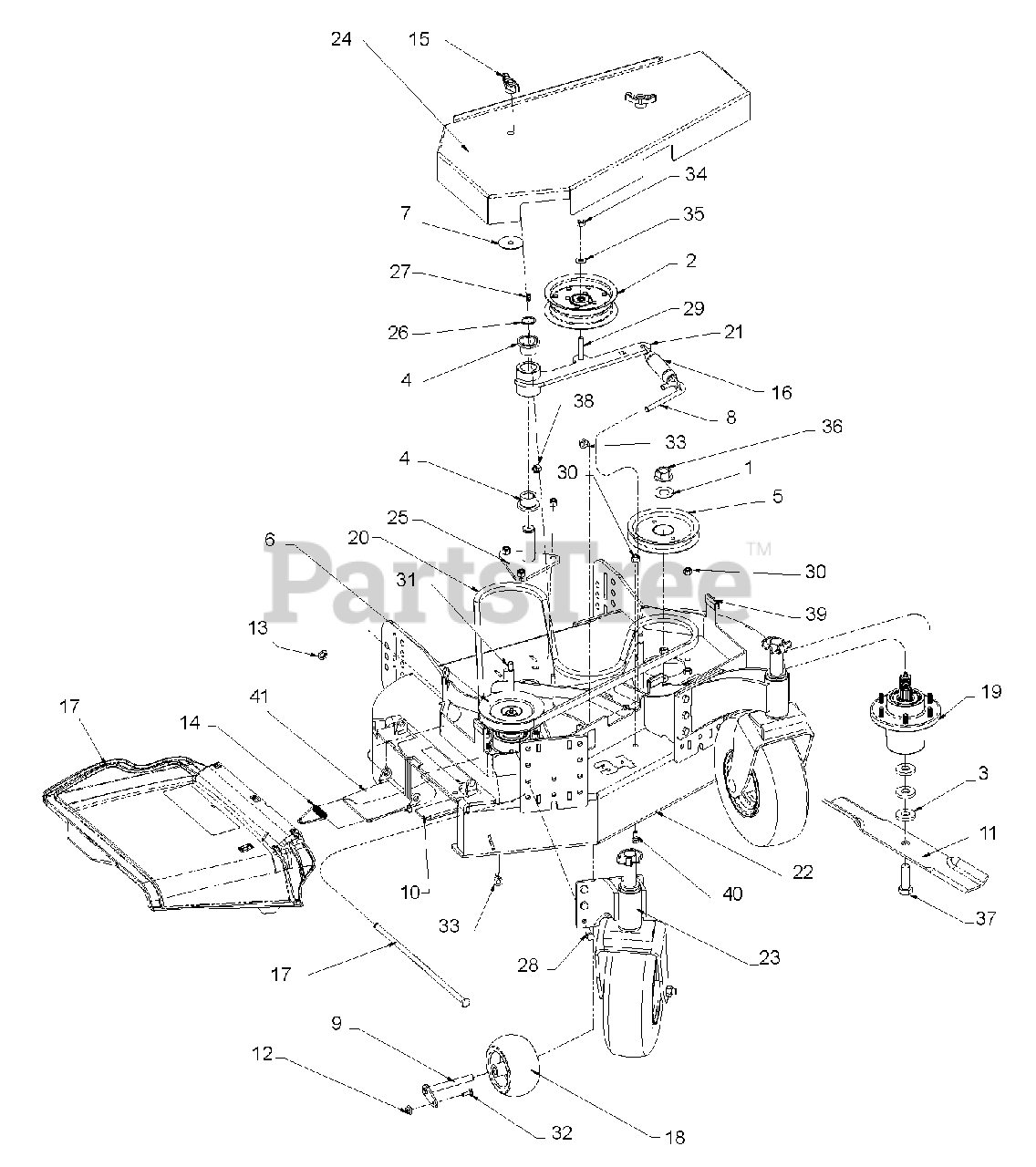

994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Deck Assembly Parts Diagram

Surfer Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title

1

Gravely 03399703

Washer, .75 x 1.3125 x .120

$3.99

$

In Stock, Qty 11

0

2

Gravely D18032

Pulley, Flat 5.0 x .38 w/Bearing
(Superseded to 07346700)

$79.99

$

In Stock, only 3 left!

0

3

Gravely D18055

Washer, Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

4

Gravely D18076

Bearing, Flg 1.00 x 1.25 x 1.00

$5.99

$

In Stock, only 3 left!

0

5

Gravely 03399702

Pulley, Spline Spindle Offset

$75.99

$

Usually ships in 4-12 days

0

6

Gravely 03828700

Pulley, V-belt 5.27 x .990 w/Spl

$

$

Not available

7

Gravely D24019

Washer, .402 x 2.00 x .055 Fend Y

$

$

Not available

8

Gravely D23058

J-bolt, 3/8-16 x 4.00 Y

$5.99

$

Usually ships in 4-12 days

0

9

Gravely GDA10103

Pivot, Retainer Weld

$55.99

$

In Stock, Qty 7

0

10

Gravely GDU10230

Blade, 16.50 Lo-Lift

$27.99

$

In Stock, Qty 19

0

11

Gravely GDU10231

Blade, 18"

$27.99

$

In Stock, Qty 20+

0

12

Gravely H122207

Nut-1/4" Flange

$

$

Not available

13

Gravely H141123

Retainer

$

$

Not available

14

Gravely 03393800

Spring, Chute Guard

$5.99

$

Usually ships in 4-12 days

0

15

Gravely M119352

Knob, Locking

$3.99

$

In Stock, Qty 6

0

16

Gravely N242189

Spring, Tension

$10.99

$

Usually ships in 4-12 days

0

17

Gravely TCA16387

Discharge Chute, 48" Deck

$35.99

$

In Stock, only 3 left!

0

18

Gravely TCU18744

Wheel, Gage

$14.99

$

In Stock, only 4 left!

0

19

Gravely 00200260

Assembly, Spindle Housing
(Superseded to 00200262)

$250.99

$

In Stock, only 1 left!

0

20

Gravely 00201010

Belt, HB 80.3 El AMD OHR

$70.99

$

In Stock, only 2 left!

0

21

Gravely 00201145

Weldment, Idler Arm

$60.99

$

Usually ships in 4-12 days

0

22

Gravely 03729404

Weldment, 34" Deck w/Decals

$

$

Not available

23

Gravely N/A

Assembly, Front Wheel Caster (see page 16 for parts)

Note: (see page 16 for parts)

$

$

Currently unavailable

24

Gravely 00201357

Shield, Deck 34 w/Decals

$

$

Not available

25

Gravely 00201178

Weldment, Idler Pivot

$

$

Not available

26

Gravely 00424390

Snap Ring, 1.00 x .042 Ext
(Superseded to 05700160)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 00959995

Grease Zerk, 1/4-28 Straight .69 LG

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 00960046

Bolt, Hex .38-16x1.0
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00960051

Bolt, 3/8-16 x 2.25 Hex 5 Y
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 00960502

Nut, Hex .38-16 Grade 5 Y

$

$

Not available

31

Gravely 00963019

Bolt, .38-16 x 1 Grade 5 Round Head Square Neck

$

$

Not available

32

Gravely 00963095

Bolt, 1/4-20 x .750 Round Head Square Neck 5 Y
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 00964016

Nut, Flange .375-16
(Superseded to 06534900)

$1.49

$

In Stock, Qty 18

0

34

Gravely 00964022

Nut, .38-16 Low Crown Locking Acorn

$

$

Not available

35

Gravely 00964501

Washer, .406 x .813 x .065 Flat Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 00964024

Nut, 3/4-16 Flange Grade 8 Y
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

37

Gravely 00967348

Bolt, 5/8-11 x 2.00 Hex 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

38

Gravely 00968087

Nut, Locking-Nylon .38-16

$

$

Not available

39

Gravely 00999538

Trim 1/4

$5.99

$

Usually ships in 4-12 days

0

40

Gravely 00963033

Bolt, 5/16-18 x .750 Hex 5 Y

$

$

Not available

41

Gravely 00200095

Bracket, Chute Support

$25.99

$

Usually ships in 4-12 days

0
