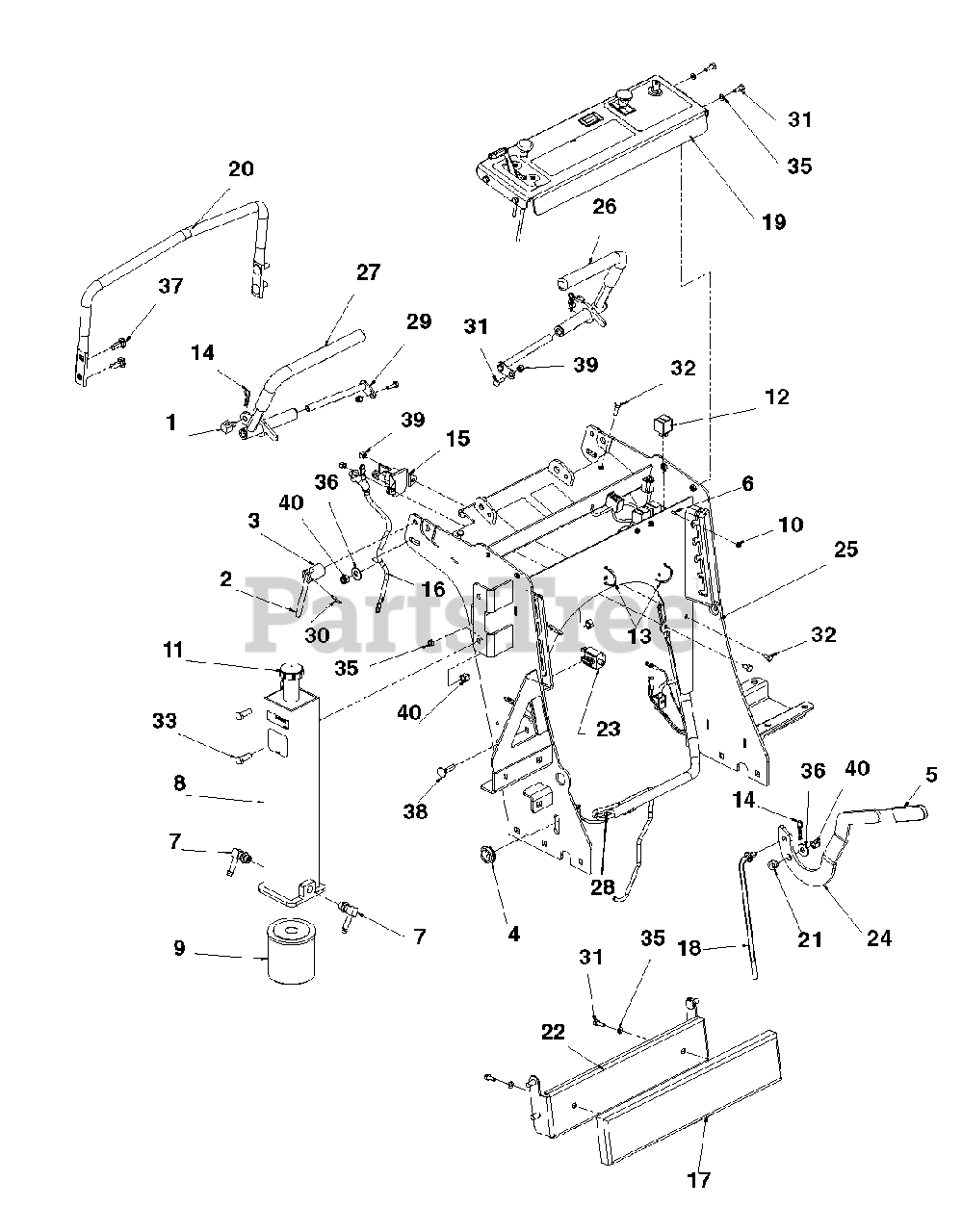

994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Fuel, Hydraulic and Handle Assembly Parts Diagram

Surfer Walk-Behind Mower

Fuel, Hydraulic and Handle Assembly Parts Diagram

  • Title

1

Gravely D13028

Swivel Adjuster

$83.99

$

Usually ships in 4-12 days

0

2

Gravely D13309

Lever, Lock Y

$

$

Not available

3

Gravely D13308

Base, Lock Lever Y

$

$

Not available

4

Gravely 03384007

Grommet, Rubber .88ID x 1.38OD x .14

$3.49

$

Usually ships in 4-12 days

0

5

Gravely D18079

Grip, PVC .250 x 1.00 x 3.63

$3.99

$

Usually ships in 4-12 days

0

6

Gravely D24020

Screw, 8-32 x .50 Y

$

$

Not available

7

Gravely D24028

Fitting, 90 9/16 MOR x 3/8 HOSE

$9.99

$

Usually ships in 4-12 days

0

8

Gravely TCA15373

Weldment, Reservior Hydraulic

$

$

Not available

9

Gravely GDA10137

Filter, Oil

$28.99

$

In Stock, only 4 left!

0

10

Gravely M63431

Nut, 8-32 Elastic Stop

$

$

Not available

11

Gravely TCA15122

Cap, Filler Oil

$27.99

$

Usually ships in 4-12 days

0

12

Gravely 00102770

Relay, Iso Mini Elec.

$21.99

$

In Stock, only 1 left!

0

13

Gravely 00111910

Cable Tie, .15 x 8.50

$

$

Not available

14

Gravely 00121080

Pin, Hair .091 x 1.63
(Superseded to 06700219)

$2.99

$

In Stock, Qty 11

0

15

Gravely 03551000

Solenoid, 12 V Starter

$34.99

$

In Stock, Qty 5

0

16

Gravely 00180842

Cable, 12" Starter

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 00200606

Pad, Thigh

$

$

Not available

18

Gravely 00200615

Link, Brake

$28.99

$

Usually ships in 4-12 days

0

19

Gravely 03731503

Assembly, Control Panel w/Decals (switches sold seperately)

Note: (switches sold seperately)

$

$

Not available

20

Gravely 03730751

Handle, Support

$112.99

$

Usually ships in 4-12 days

0

21

Gravely 00200671

Bushing, Brake Pivot Y

$

$

Not available

22

Gravely 00200690

Weldment, Thigh Pad Bracket

$64.99

$

Usually ships in 4-12 days

0

23

Gravely 00200705

Switch, NO-NO-NC Grey Plunger

$17.99

$

In Stock, only 1 left!

0

24

Gravely 00201022

Brake Lever, Offset

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 03728840

Weldment, Console 34 w/Decals

$

$

Not available

26

Gravely 03731000

RH Control Lever w/Grip

$162.99

$

In Stock, only 1 left!

0

27

Gravely 03730900

LH Control Lever w/Grip

$

$

Not available

28

Gravely AA201197

Harness, Wiring

$185.99

$

Usually ships in 4-12 days

0

29

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 34H60

Pin, Spring 5/32 x 1

$

$

Not available

31

Gravely 00960001

Bolt, Hex .25-20 x .75 Grade 5

$

$

Not available

32

Gravely 00960002

Bolt, .25-20 x 1.00 Hex 5 Y
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

33

Gravely 00960046

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

34

Gravely AA960500

Nut, .25-20 Standard Hex Grade 5 Y

$

$

Not available

35

Gravely AA960600

Washer, .250 Med Spring Lock

$

$

Not available

36

Gravely 00960702

Washer, .375 Reg Flat
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

37

Gravely 00963020

Bolt, Round Head Square Neck .38-16 x 1.00 G 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

38

Gravely 00963053

Bolt, Round Head Square Neck .38-16 x 1.25 G 5

$

$

Not available

39

Gravely 00964040

Nut, Locking-Nylon .250-20

$

$

Not available

40

Gravely 00968087

Nut, Locking-Nylon .38-16

$

$

Not available
