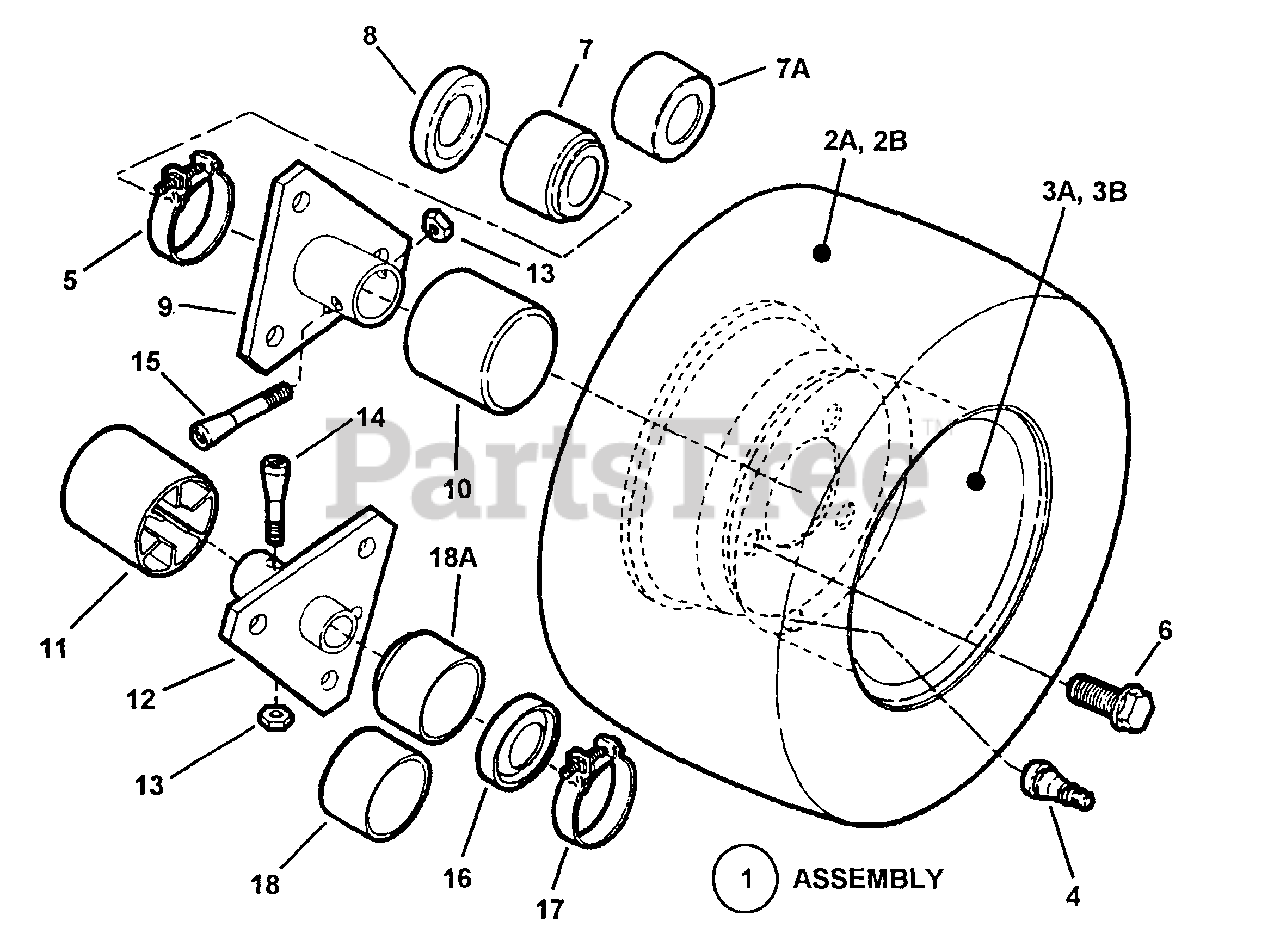

E 281320BE (84589) - Snapper 28" Rear-Engine Riding Mower, 13hp Wheels - Rear Parts Diagram

28" Rear-Engine Riding Mower, 13hp

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7058952

ASSEMBLY, Rear Tire & Rim (NLA use 7058951)
(Superseded to 7058951YP)

Note: (Includes 2A, 3A & 4)(28" Models)

$186.99

$

Usually ships in 2-12 days

0

1

Snapper 7058951

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058951YP)

Note: (Includes Items 2B, 3B & 4); (33" Models)

$186.99

$

Usually ships in 2-12 days

0

2A

Snapper 7073585

TIRE, Wide, 16-6.50 x 8, Carlisle

Note: (28" Models)

$

$

Not available

2B

Snapper 7073584

TIRE, 16-6.50 x 8 Kenda
(Superseded to 7073584YP)

Note: (33" Models)

$170.99

$

Usually ships in 2-12 days

0

3A

Snapper 7073589

RIM, (8 x 5.375)

Note: (28" Models)

$

$

Not available

3B

Snapper 7012163

RIM, Extra Wide,
(Superseded to 7012163YP)

Note: Was 17147 (For 16/7.50 x 8 Tire) (33" Models)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

5

Snapper 7012332

CLAMP, Boot, 2"
(Superseded to 7012332YP)

Note: (28" Models)

$6.99

$

In Stock, Qty 11

0

5

Snapper 7014542

CLAMP, Right Hand (3.0" ID)

Note: (33" Models)

$

$

Not available

6

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug
(Superseded to 703431)

$4.99

$

In Stock, Qty 13

0

7

Snapper 7014541

CAP, Seal .93" ID x 2.625" OD
(Superseded to 7014541YP)

Note: (33" Models)

$

$

Not available

7A

Snapper 7031732

CAP, Seal 1.0" ID x 1.67" OD
(Superseded to 7031732YP)

Note: (28" Models)

$6.49

$

In Stock, Qty 20+

0

8

Snapper 7011817

SEAL, Oil 1.22" ID x 1.875" OD (Right Hand)
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 5

0

9

Snapper 7040433

HUB, Wheel RH, 3 Hole 1" ID
(Superseded to 7040433YP)

$37.99

$

Usually ships in 2-12 days

0

10

Snapper 7023895

CAP, Hub (Right Hand)
(Superseded to 7023895YP)

$6.99

$

In Stock, only 1 left!

0

11

Snapper 7023522

CAP, Hub (Left Hand)
(Superseded to 7023522YP)

$6.49

$

In Stock, Qty 9

0

12

Snapper 7040434

HUB, Wheel LH, 3 Hole 3/4" ID
(Superseded to 7040434YP)

$37.99

$

In Stock, Qty 7

0

13

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 19

0

16

Snapper 7014662

SEAL, OIL .750" ID x 1.832" OD (Left Hand)
(Superseded to 7014662YP)

$9.49

$

In Stock, Qty 20+

0

17

Snapper 7012332

CLAMP, Boot, 2"
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 11

0

18

Snapper 7014658

CAP, Seal 3/4" (Left Hand)
(Superseded to 7014658YP)

Note: Was 19607 (Left Hand Bushing Models)

$7.99

$

In Stock, Qty 20+

0

18A

Snapper 7014658

CAP, Seal .750" ID x 1.875" OD (Left Hand)
(Superseded to 7014658YP)

Note: Was 35918 (Left Hand Ball Bearing Models)

$7.99

$

In Stock, Qty 20+

0
