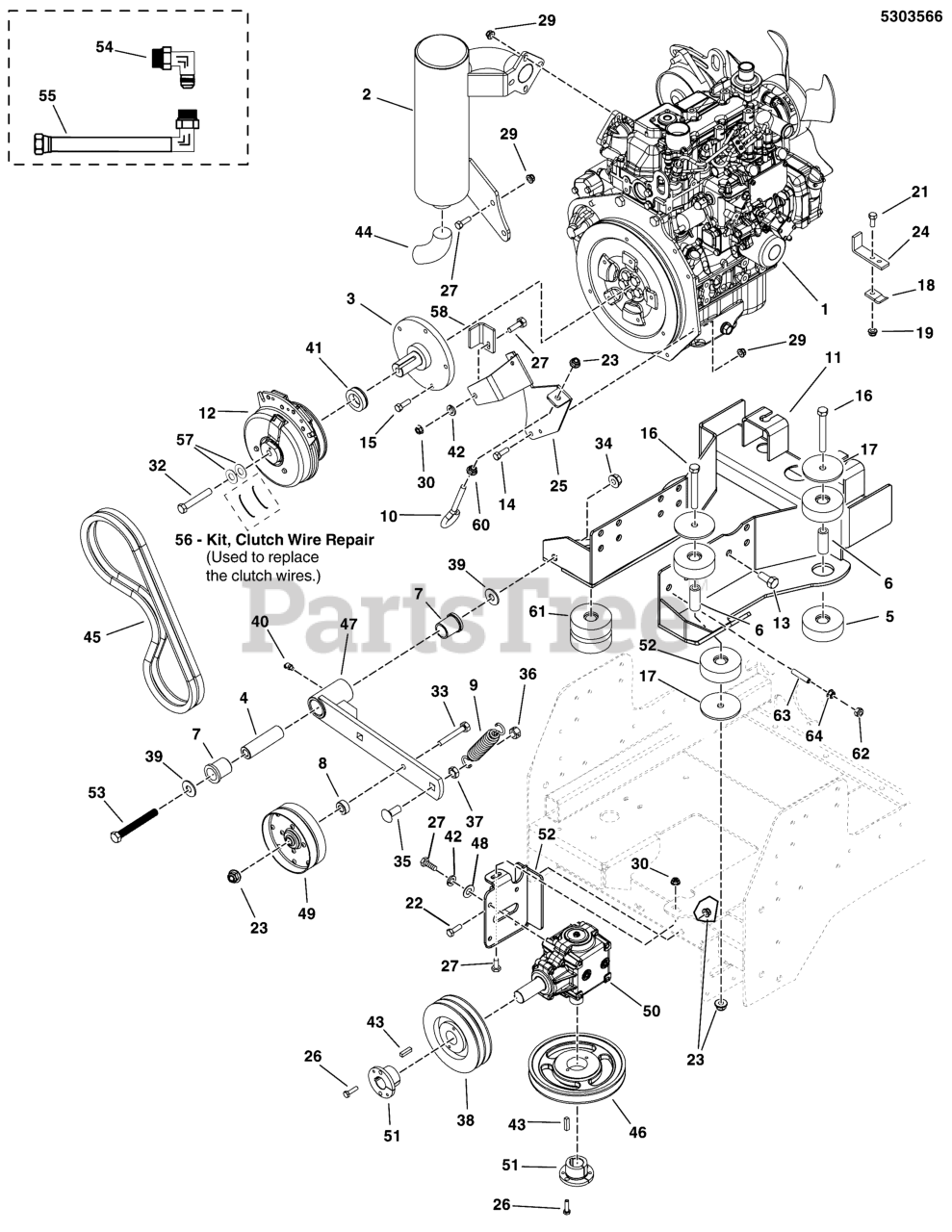

S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Engine & PTO Group (S/N: 2016601890 & Above) Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

Engine & PTO Group (S/N: 2016601890 & Above) Parts Diagram

  • Title

1

ENGINE, YANMAR

$

$

Not available

2

Snapper Pro 5102293

MUFFLER, YANMAR

$314.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101495

SHAFT, STUB, YANMAR, FLYWHEEL PLATE
(Superseded to 5101495FS)

$502.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$25.99

$

In Stock, only 3 left!

0

5

Snapper Pro 5104084

ISO MOUNT, 215 LBS, YELLOW
(Superseded to 5104084FS)

$60.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5047380

SPACER, .38 X .62 X 1.62
(Superseded to 5047380FS)

$8.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 3 left!

0

9

Snapper Pro 5102959

SPRING-EXT 1.03OD X 6.935LG X .120WR BLK
(Superseded to 5102959YP)

$43.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5102118

EYE BOLT, 3/8-16 X 6.88, 3THRD, 1EYE
(Superseded to 5102118FS)

$15.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5411641D

WELD, ENGINE MOUNT, IS2500 - RED

$

$

Currently unavailable

12

Snapper Pro 5101790

CLUTCH, WARNER ELECTRIC, IS2500Z
(Superseded to 5101790FS)

$628.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025359

BOLT, M10-1.5 X 16MM GD8.8
(Superseded to 5025359FS)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025237X25

BOLT, M8-1.25 X 25MM GD8.8
(Superseded to 5025237X25YP)

$3.99

$

In Stock, only 2 left!

0

16

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$4.49

$

In Stock, Qty 5

0

17

Snapper Pro 5047381

WASHER, .39 X 2.50 X .125
(Superseded to 5047381FS)

$11.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5022901

CLAMP, CONDUIT
(Superseded to 5022901FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

Note: (NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 1960702

BOLT, Carriage, 3/8-16 X 1

$

$

Not available

23

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

24

Snapper Pro 5406134D

BRACKET, THROTTLE CABLE - RED

$

$

Currently unavailable

25

Snapper Pro 5407999D

ANCHOR, CLUTCH - RED

$

$

Currently unavailable

26

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 16

0

27

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

28

Snapper Pro 5101008

SAFETY WALK, 4.50 X 3.50
(Superseded to 5101008SM)

$7.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0

32

Snapper Pro 5102865

BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ
(Superseded to 5102865YP)

$5.49

$

In Stock, Qty 11

0

33

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$4.49

$

In Stock, Qty 5

0

34

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 6

0

35

Snapper Pro 5025324X10

BOLT, CARRIAGE 1/2-13 X 1-1/4 GD.5
(Superseded to 5025324X10YP)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 5

0

37

Snapper Pro 5025301

NUT, 1/2-13 HEX JAM
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

38

Snapper Pro 5102412

PULLEY, 5.75 OD X 2 GROOVE, SPECIAL
(Superseded to 5102412FS)

$103.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$4.49

$

In Stock, only 1 left!

0

40

Snapper Pro 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$20.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

43

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$4.49

$

In Stock, Qty 6

0

44

Snapper Pro 5102030

TAIL PIPE, 1-1/2", 90 DEGREE (SV)

$

$

Currently unavailable

45

Snapper Pro 5102038

BELT, A-SEC, 40.084" EL, MATCHED SET
(Superseded to 5102038FS)

$54.99

$

In Stock, only 2 left!

0

46

Snapper Pro 5103311

PULLEY, 7.75"OD, B SEC, DEEP GROOVE, CI
(Superseded to 5103311FS)

Note: (61" Mower Decks)

$125.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 5407057A

WELD, IDLER ARM - BLK
(Superseded to 5407057AFS)

$76.99

$

Usually ships in 2-12 days

0

48

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

49

Snapper Pro 5102276

PULLEY, IDLER, DOUBLE FLGED, 4IN
(Superseded to 5102276FS)

$52.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5022378

GEARBOX, RIGHT ANGLE, 1:1
(Superseded to 5022378FS)

$1043.99

$

Usually ships in 2-12 days

0

51

Snapper Pro 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$27.99

$

In Stock, only 3 left!

0

52

Snapper Pro 5102731

ISO MOUNT, 490 LBS, GREEN
(Superseded to 5102731FS)

$63.99

$

In Stock, only 1 left!

0

53

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5, GD5
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 20+

0

54

Snapper Pro 5102570

FITTING, #8JIC - M16X1.5, ELBOW
(Superseded to 5102570FS)

$19.99

$

Usually ships in 2-12 days

0

55

Snapper Pro 5102559

HOSE, OIL DRAIN
(Superseded to 5102559FS)

$55.99

$

Usually ships in 2-12 days

0

56

Snapper Pro 5600575

KIT, CLUTCH WIRE REPAIR

Note: (Used to replace clutch wires.)

$66.99

$

Usually ships in 2-12 days

0

57

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, Qty 8

0

58

Snapper Pro 5407737A

BRACKET, CLUTCH ANCHOR, IS2500 - BLK
(Superseded to 5407737AFS)

$15.99

$

Usually ships in 2-12 days

0

59

Snapper Pro 5407634D

WELD, GEAR BOX - RED

$

$

Currently unavailable

60

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 5104090

ISO MOUNT, 360 LBS, RED
(Superseded to 5104090FS)

$63.99

$

Usually ships in 2-12 days

0

62

Snapper Pro 5025428

HEX NUT, M10-1.5 NYLON INSERT
(Superseded to 5025428FS)

$2.99

$

Usually ships in 2-12 days

0

63

Snapper Pro 5025598

SOCKET SET SCREW, M10-1.5 X 50, SS, CAP PT
(Superseded to 5025598FS)

$7.99

$

Usually ships in 2-12 days

0

64

Snapper Pro 5025599

HEX NUT, FLG, M10-1.5 SER CZ, NO SEALER
(Superseded to 5025599FS)

$2.99

$

Usually ships in 2-12 days

0
