S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Motion Control Group - Upper Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

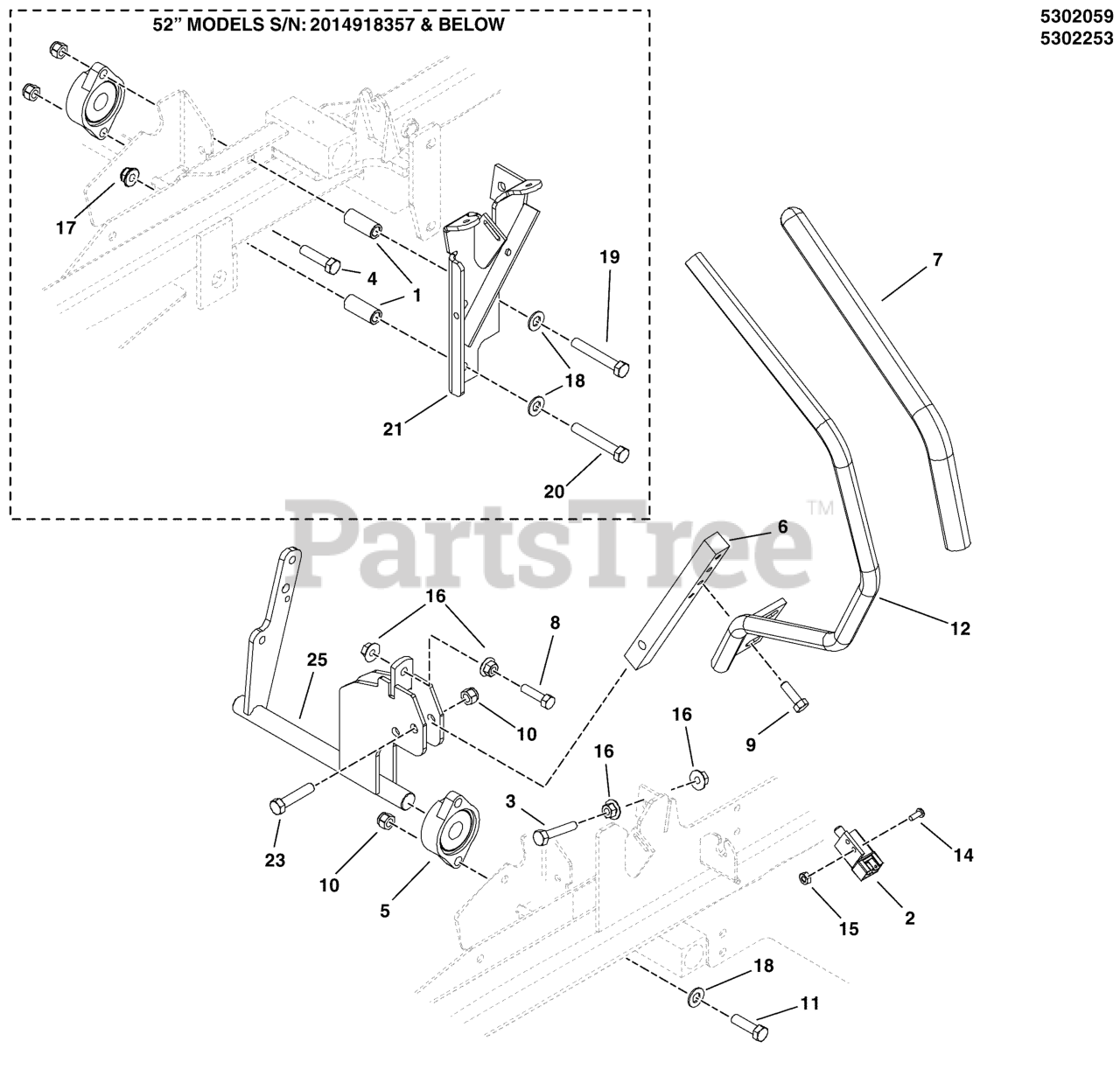

Motion Control Group - Upper Parts Diagram

  • Title

1

Snapper Pro 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

Note: (52" Models - S/N: 2014918357 & Below)

$6.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5021451

SWITCH, PLUNGER, N.O.
(Superseded to 5021451SM)

$11.99

$

In Stock, only 4 left!

0

3

Snapper Pro 5025055X12

BOLT- 5/16-18 X 1-1/2 GD5 TFL
(Superseded to 5025055X12SM)

$4.49

$

In Stock, only 2 left!

0

4

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: (52" Models - S/N: 2014918357 & Below)

$3.99

$

In Stock, only 3 left!

0

5

Snapper Pro 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$57.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

7

Snapper Pro 5022068

GRIP, FOAM, 3/4 ID, 16 LONG
(Superseded to 5022068SM)

$12.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

9

Snapper Pro 1960541

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 1960541SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 12

0

11

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

12

Snapper Pro 5405821A

WELD, HANDLE, MOTION CONTROL, LH - BLK
(Superseded to 5405821AFS)

$89.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5405822A

WELD, HANDLE, MOTION CONTROL, RH - BLK
(Superseded to 5405822AFS)

$84.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

15

Snapper Pro 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 7

0

17

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

18

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

Note: (52" Models - S/N: 2014918357 & Below)

$4.49

$

In Stock, Qty 5

0

20

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

Note: (52" Models - S/N: 2014918357 & Below)

$2.99

$

In Stock, only 3 left!

0

21

Snapper Pro 5405025D

WELD, NEUTRAL LOCK - LH - RED

Note: (52" Models - S/N: 2014918357 & Below)

$

$

Currently unavailable

22

Snapper Pro 5405026D

WELD, NEUTRAL LOCK - RH - RED

Note: (52" Models - S/N: 2014918357 & Below)

$

$

Currently unavailable

23

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 18

0

24

Snapper Pro 5404895A

WELD, CONTROL SHAFT - RH - BLK
(Superseded to 5404895AFS)

$120.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5404896A

WELD, CONTROL SHAFT - LH - BLK
(Superseded to 5404896AFS)

$138.99

$

Usually ships in 2-12 days

0
