ZT 2148 K - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler Mower Housing, Cover, Spindle & Blade Group (7034cpbg) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

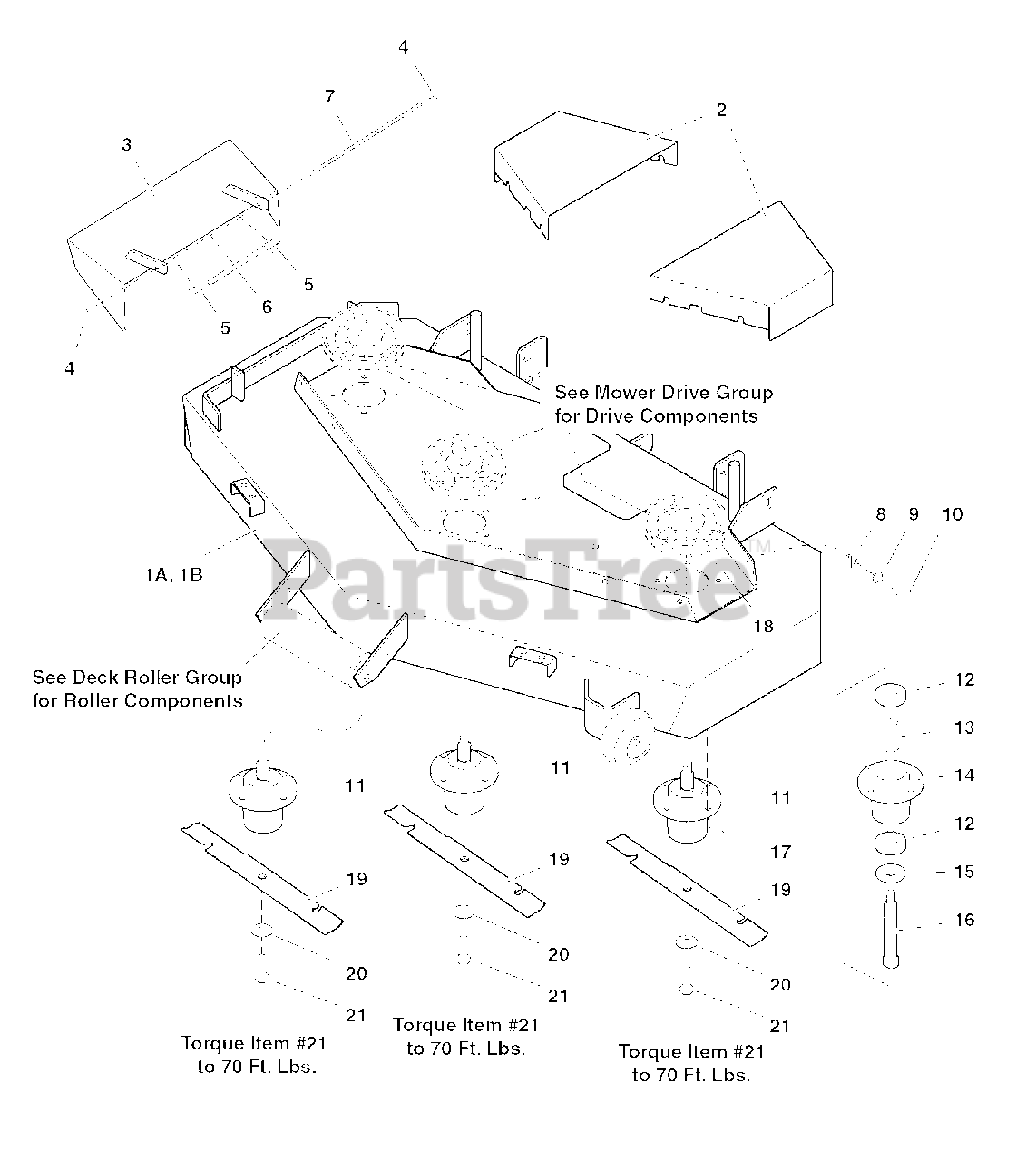

Mower Housing, Cover, Spindle & Blade Group (7034cpbg) Parts Diagram

  • Title

1

Simplicity 1846896

48" MOWER DECK
(Superseded to 5046896E)

$

$

Not available

*

Simplicity 1846897

52" MOWER DECK
(Superseded to 5046897E)

$

$

Not available

2

Simplicity 1847129

MOWER DECK GUARD
(Superseded to 5047129E)

$

$

Not available

3

Simplicity 1846445

DISCHARGE CHUTE
(Superseded to 5046445E)

$

$

Not available

4

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

5

Simplicity 1723938SM

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

6

Simplicity 5045637SM

SPRING SPACER

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 5042555009

ROD

$

$

Not available

8

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 5

0

9

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 3 left!

0

11

Simplicity 5061095SM

SPINDLE ASSEMBLY, Complete (includes Ref 10-14)

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

12

Simplicity 5061095SM

BEARING, Roller

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

13

Simplicity 5061095SM

SPACER, Bearing

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

14

Simplicity 5061095SM

SPINDLE HOUSING

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

15

Simplicity 5061095SM

TRASH SHIELD

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

16

Simplicity 5061095SM

SPINDLE SHAFT

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

17

Simplicity 5025011X9SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/8

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, only 2 left!

0

19

Simplicity 5020843ASM

MOWER BLADE (48" Deck)

$24.99

$

In Stock, only 2 left!

0

*

Simplicity 5021227ASM

MOWER BLADE (52" Deck)

$25.99

$

In Stock, Qty 10

0

20

Simplicity 5025159SM

WASHER, USS, 5/8
(Superseded to 5025477SM)

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025320X14SM

CAPSCREW, Hex Hd, 5/8-11 x 1-3/4-
(Superseded to 770136)

$4.49

$

In Stock, only 4 left!

0
