ZT 2148 K - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler Seat & Seat Mount Group (7034ssmg) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

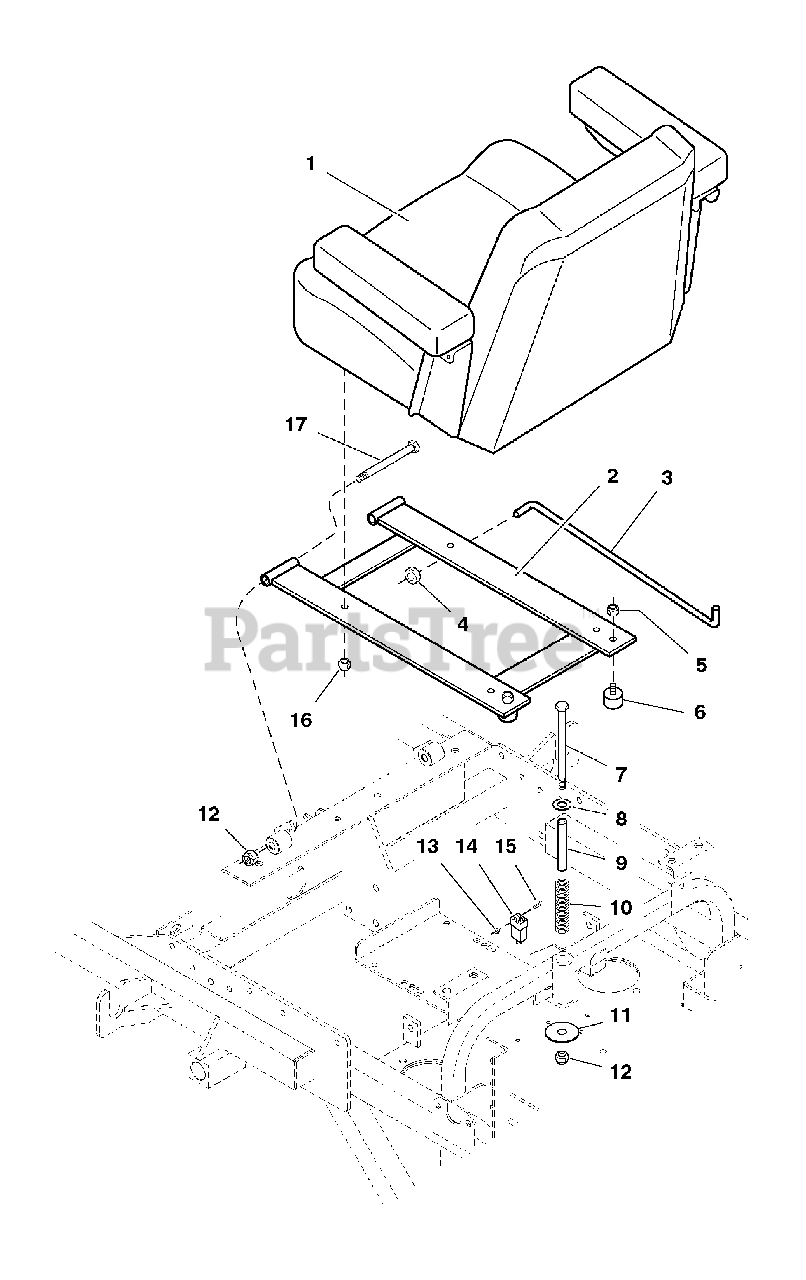

Seat & Seat Mount Group (7034ssmg) Parts Diagram

  • Title

1

Simplicity 5022363SM

SEAT, Brown (complete)

$

$

Not available

*

Simplicity 5022363X1SM

CUSHION, Seat, Brown

$

$

Not available

*

Simplicity 5022197X2SM

CUSHION, Back, Brown

$205.99

$

Usually ships in 2-12 days

0

*

Simplicity 5022440

ARM REST, Black
(Superseded to 5022185)

$72.99

$

Usually ships in 2-12 days

0

2

Simplicity 1847744

SEAT MOUNT

$

$

Not available

3

Simplicity 5046470SM

SEAT STOP ROD

$33.99

$

Usually ships in 2-12 days

0

4

Simplicity 5020047SM

COLLAR, 5/16 Set

$7.99

$

In Stock, only 3 left!

0

5

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, only 4 left!

0

6

Simplicity 5022673SM

RUBBER BUMPER

$20.99

$

In Stock, only 1 left!

0

7

Simplicity 5025013X48SM

CAPSCREW, Hex Hd, 3/8-16 x 6

$5.99

$

In Stock, Qty 8

0

8

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 5046586SM

SPACER, Seat Spring

$12.99

$

In Stock, Qty 9

0

10

Simplicity 5022798SM

SPRING, Compression

$21.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025326SM

WASHER, 3/8 x 2

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 12

0

13

Simplicity 5025029SM

NUT, Hex, #10-24
(Superseded to 592578)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$18.99

$

In Stock, only 4 left!

0

15

Simplicity 5025270SM

SCREW, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 5025013X32SM

CAPSCREW, Hex Hd, 3/8-16 x 4

$4.49

$

In Stock, Qty 9

0
