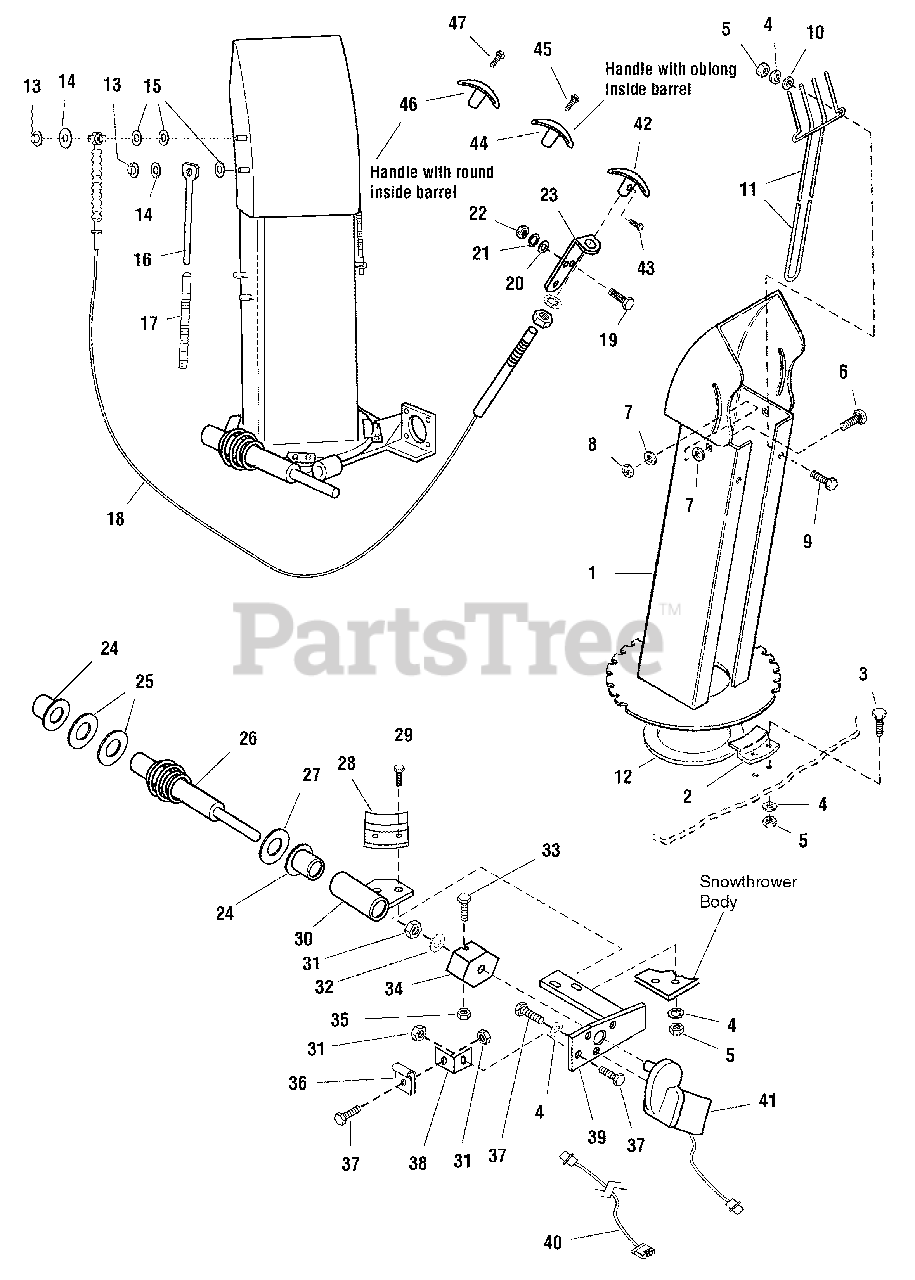

1692942 - Simplicity 47" Snow Thrower Attachment Spout Group Parts Diagram

47" Snow Thrower Attachment

Spout Group Parts Diagram

  • Title

1

Simplicity 1720280SM

CHUTE ASSEMBLY (w/ Deflector)

$598.99

$

Usually ships in 2-12 days

0

2

Snapper 1709642SM

RETAINER, Chute

$

$

Not available

3

Simplicity 1921958SM

CAPSCREW, Hex Head, 1/4-20 x 1/2
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

4

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 14

0

6

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1919438SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1709644SM

GUARD, Chute

$50.99

$

Usually ships in 2-12 days

0

12

Simplicity 1709645SM

GASKET, Chute

$26.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960126SM

NUT, Push, 1/4
(Superseded to 704066)

$5.49

$

In Stock, Qty 10

0

14

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1702219SM

SPACER

$8.99

$

In Stock, only 2 left!

0

16

Simplicity 1611945SM

ROD, Spring, 5/16

$14.99

$

In Stock, only 1 left!

0

17

Simplicity 1611939SM

SPRING, Compression

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1717482SM

CABLE ASSEMBLY

$172.99

$

Usually ships in 2-12 days

0

19

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1960151SM

WASHER, 1/4
(Superseded to 703136)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 14

0

23

Simplicity 1726411ASM

BRACKET, Cable Mounting

$

$

Not available

24

Simplicity 1709648SM

BUSHING, Turn Collar

$

$

Not available

25

Simplicity 1960528SM

WASHER, 3/4

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 1709647SM

WORM GEAR ASSEMBLY

$87.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960010SM

WASHER, 3/4

$15.99

$

Usually ships in 2-12 days

0

28

Snapper 1709642SM

RETAINER, Chute

$

$

Not available

29

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1709649SM

BRACKET, Support

$59.99

$

Usually ships in 2-12 days

0

31

Simplicity 1923358SM

NUT, Hex Lock,1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

32

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1960579SM

SCREW, Truss Head, Phillips, 1/4-20 x 1-5/8

$

$

Not available

34

Simplicity 1715886SM

ADAPTER, Motor

$11.99

$

Usually ships in 2-12 days

0

35

Simplicity 1933896SM

NUT, Hex Nylon Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

36

Simplicity 1708008SM

CLAMP, Cable, 1/4

$4.49

$

Usually ships in 2-12 days

0

37

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

38

Simplicity 1668500A

BRACKET
(Superseded to 1668500SM)

$20.99

$

Usually ships in 2-12 days

0

39

Simplicity 1717086SM

SUPPORT ASSEMBLY

$

$

Not available

40

Simplicity 1717483SM

WIRE HARNESS

$53.99

$

Usually ships in 2-12 days

0

41

Simplicity 1715885SM

MOTOR, Electric
(Superseded to 709509)

$465.99

$

In Stock, only 1 left!

0

42

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

43

Simplicity 1930547SM

SCREW, Set, Hex #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

44

Simplicity 1719138SM

HANDLE "T"

Note: (Handle with oblong inside barrel)

$21.99

$

Usually ships in 2-12 days

0

45

Simplicity 1960600SM

SCREW, #8c x 3/4

$4.99

$

Usually ships in 2-12 days

0

46

Simplicity 1706201SM

HANDLE "T"

Note: (Handle with round inside barrel)

$

$

Not available

47

Simplicity 1960399SM

SCREW, Round Head

$3.49

$

Usually ships in 2-12 days

0
