927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Deck Lift Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

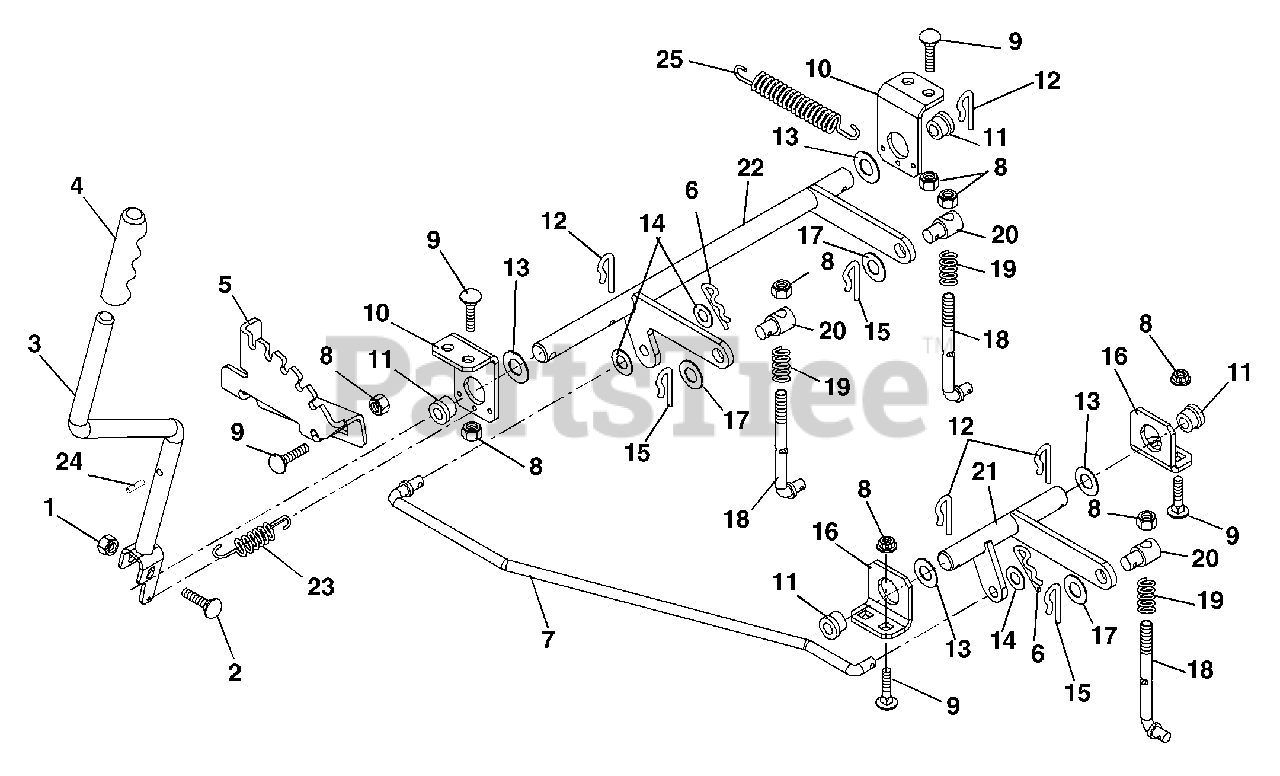

Deck Lift Parts Diagram

  • Title

1

Gravely 06544400

Nut-Locking-Top-Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 19

0

2

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

3

Gravely 02762451

Weldment-Lift Handle
(Superseded to 51511000)

$

$

Not available

4

Gravely 07527500

Grip

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 02762300

Detent Plate

$

$

Not available

6

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 02762900

Lift Link
(Superseded to 02776300)

$

$

Not available

8

Gravely 06544500

Nut-Locking-Top-Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06227000

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 02762800

Bracket, Lift

$

$

Not available

11

Gravely 05503900

Bushing-Flange .75 x 1.00 x .625 x 1.25

$12.99

$

In Stock, Qty 9

0

12

Gravely 06714500

Pin, Spring Clip

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

14

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, only 2 left!

0

16

Gravely 02762700

Bracket, Deck Pivot

$

$

Not available

17

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 02759900

Rod, Link

$

$

Not available

19

Gravely 039611

Spring-Compression .063 x .53 x 1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 9

0

20

Gravely 01582300

Trunnion

$45.99

$

Usually ships in 4-12 days

0

21

Gravely 02762500

Weldment, Front Lift

$

$

Not available

22

Gravely 02762600

Weldment, Lift

$

$

Not available

23

Gravely 08333900

Spring, Extension

$

$

Not available

24

Gravely 05800900

Pin-Roll .125 x 1.00

$0.99

$

In Stock, Qty 18

0

25

Gravely 08311000

Spring-Tension .08 x .687 x 5.16

$14.99

$

In Stock, Qty 6

0
