SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Fuel Tank & Mount Group Parts Diagram

32" Walk-Behind Mower, 13hp

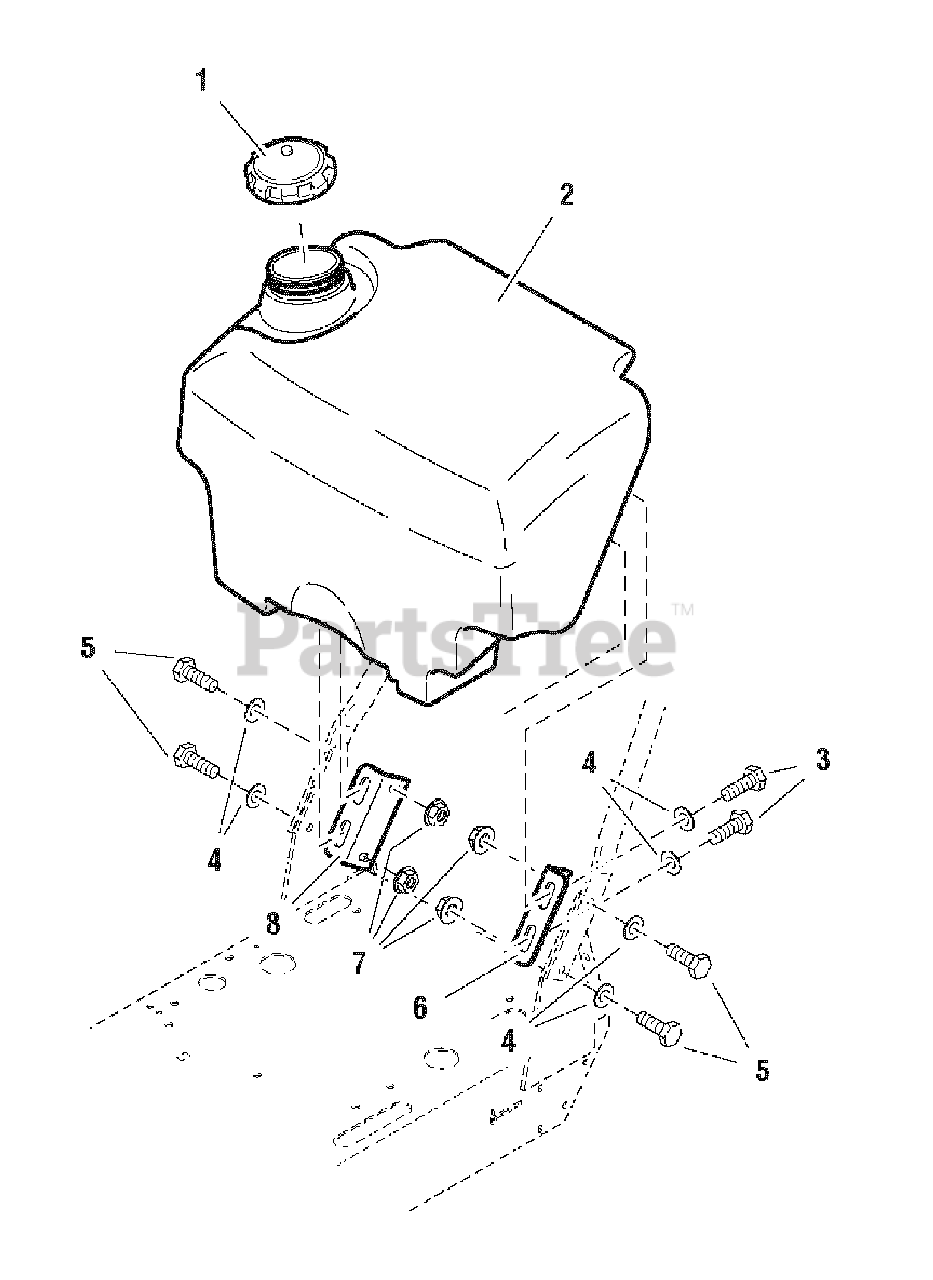

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Snapper 5022158

FUEL TANK CAP
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 5

0

2

Snapper 5048149

FUEL TANK
(Superseded to 5048149SM)

$242.99

$

Usually ships in 2-12 days

0

3

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

Note: Was 5025013-6

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 3025156

WASHER, 3/8
(Superseded to 703590)

Note: Was 5025156

$3.99

$

In Stock, Qty 16

0

5

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 1 left!

0

6

Snapper 5048342D

FUEL TANK MOUNT - LH
(Superseded to 5048342DYP)

$40.99

$

Usually ships in 2-12 days

0

7

Snapper 5025128

NUT, Hex Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 5048343D

FUEL TANK MOUNT - RH
(Superseded to 5048343DYP)

$40.99

$

Usually ships in 2-12 days

0
