SFH 13320KW (5091002) - Snapper 32" Walk-Behind Mower, 13hp Transaxle Assembly - SERVICE PARTS Parts Diagram

32" Walk-Behind Mower, 13hp

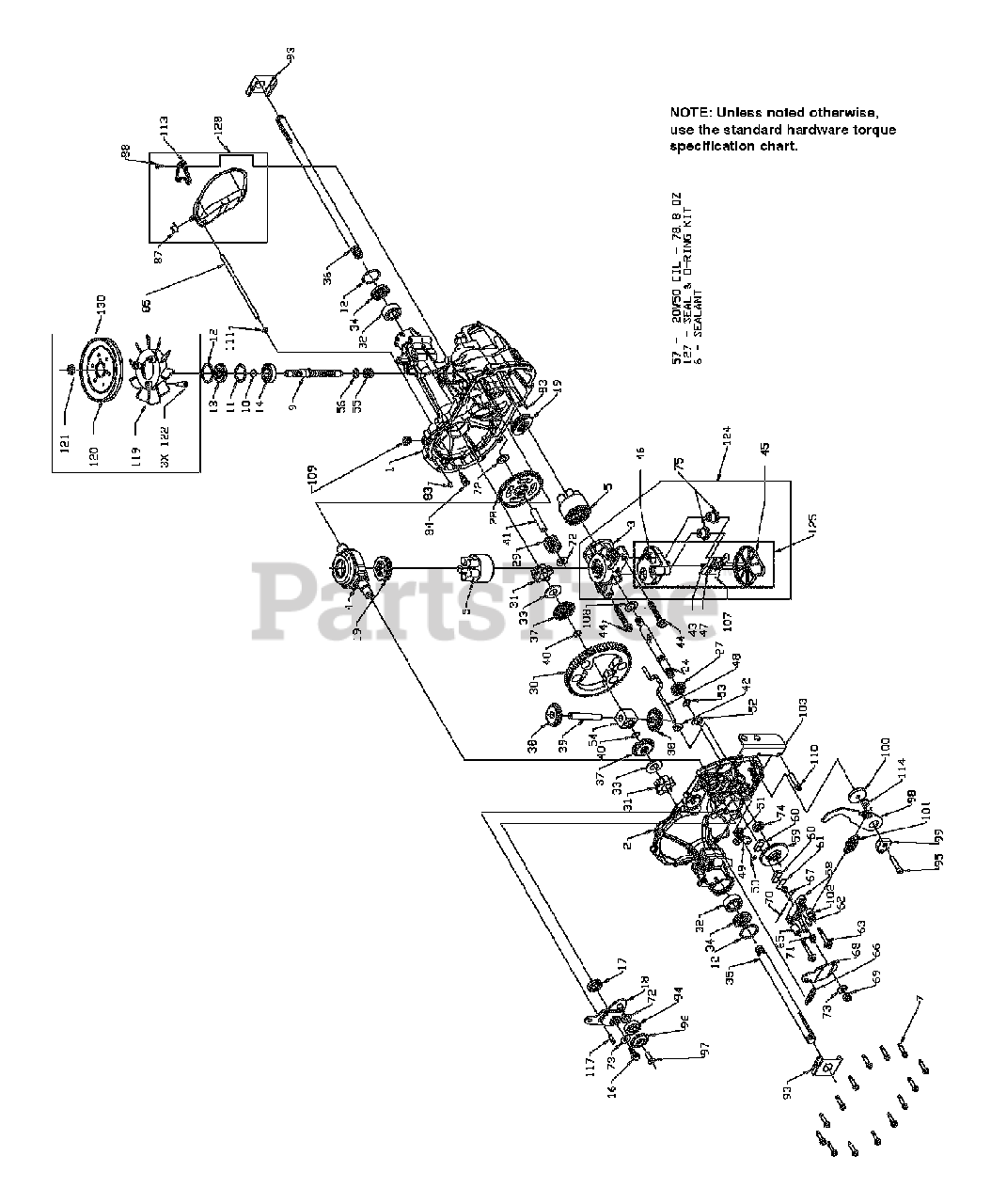

Transaxle Assembly - SERVICE PARTS Parts Diagram

  • Title

6

Snapper 5022905X1

SEALANT
(Superseded to 5022905X1SM)

$102.99

$

Usually ships in 2-12 days

0

9

Snapper 5022905X2

SHAFT, INPUT
(Superseded to 5022905X2SM)

$151.99

$

Usually ships in 2-12 days

0

10

Snapper 5022905X3

RING - RETAINING

$

$

Not available

11

Snapper 5022905X4

SPACER

$

$

Not available

12

Snapper 5022905X5

RING - RETAINING
(Superseded to 5101026X4)

$12.99

$

Usually ships in 2-12 days

0

14

Snapper 5022905X6

BALL BEARING

$

$

Not available

32

Snapper 5022905X7

OUTBOARD SLEEVE BEARING
(Superseded to 5022905X7SM)

$15.99

$

Usually ships in 2-12 days

0

35

Snapper 5022905X8

AXLE SHAFT - RH
(Superseded to 5022905X8SM)

$93.99

$

Usually ships in 2-12 days

0

36

Snapper 5022905X9

AXLE SHAFT - LH
(Superseded to 5022905X9SM)

$106.99

$

Usually ships in 2-12 days

0

55

Snapper 5022905X10

SPRING - HELICAL COMPRESSION
(Superseded to 5022905X10SM)

$4.49

$

Usually ships in 2-12 days

0

56

Snapper 5022905X11

WASHER
(Superseded to 5022905X11SM)

$3.99

$

Usually ships in 2-12 days

0

57

Snapper 5022905X12

20W-50 OIL

$

$

Currently unavailable

101

Snapper 5022967

HYDRO RETURN SPRING
(Superseded to 5022967SM)

$17.99

$

Usually ships in 2-12 days

0

119

Snapper 5022905X13

FAN, 6, 10 BLADE
(Superseded to 5022905X13SM)

$25.99

$

Usually ships in 2-12 days

0

128

Snapper 5022905X14

EXPANSION TANK KIT
(Superseded to 5022905X14SM)

$41.99

$

Usually ships in 2-12 days

0

130

Snapper 5022905X15

FAN/PULLEY KIT (includes Ref. 119)
(Superseded to 5022905X15SM)

$122.99

$

Usually ships in 2-12 days

0
