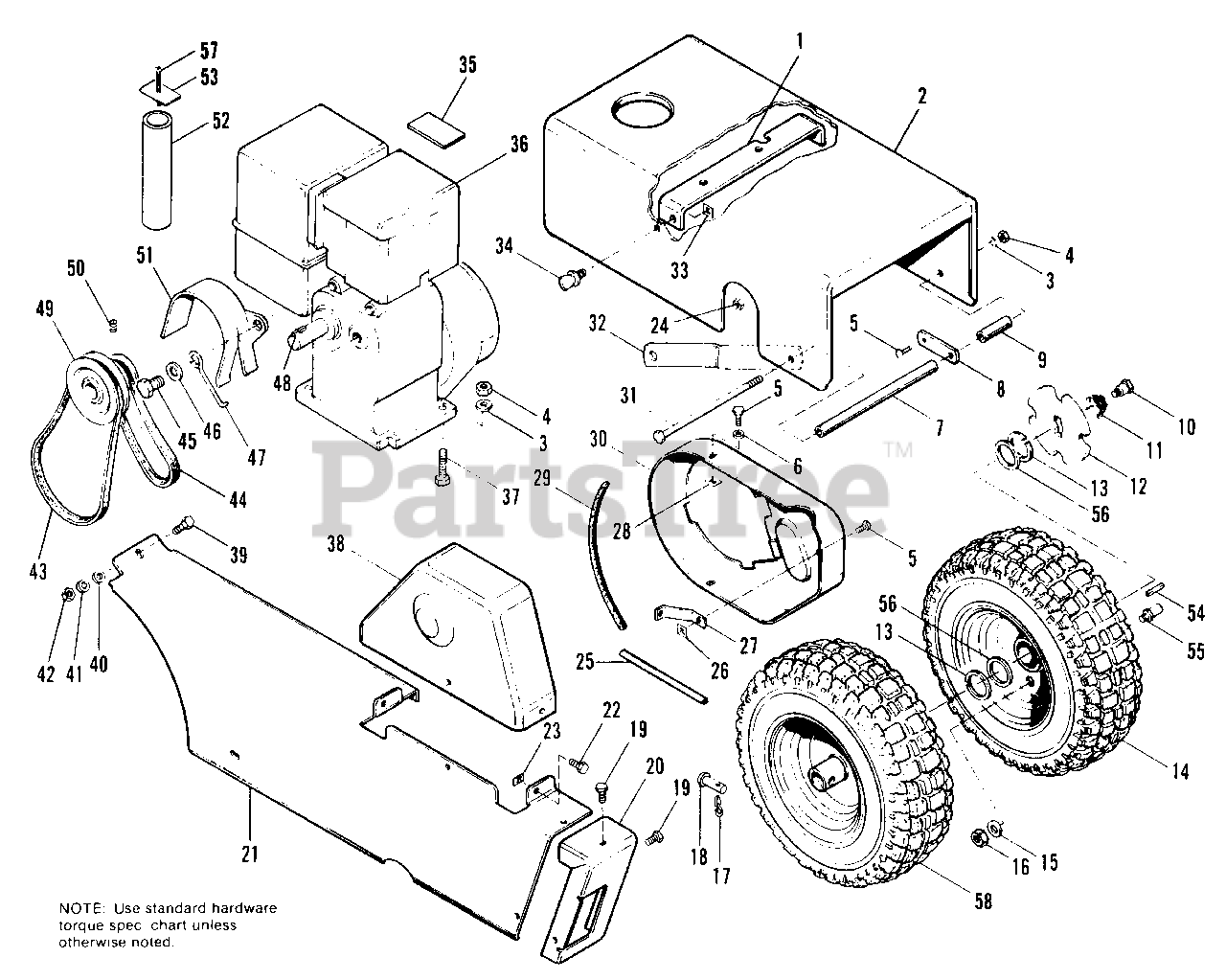

1008 (990796) - Simplicity Sno-Away 28" Snow Thrower, 8hp Engine & Drive Group Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

Engine & Drive Group Parts Diagram

  • Title

1

Simplicity 171285

SUPPORT, Hood

$

$

Not available

1

Simplicity 106519

SUPPORT, Hood (990656 Only)

$

$

Not available

2

Simplicity 171298

HOOD ASSY.

$

$

Not available

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2822122

SCREW, Self Tapping, #10 x 1/2

$

$

Not available

6

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

7

Simplicity 106576

SPACER, Hood, L.H.

$

$

Not available

8

Simplicity 106525

BRACE

$

$

Not available

9

Simplicity 106577

SPACER, Hood, R.H.

$

$

Not available

10

Simplicity 2161166

BOLT, Shoulder

$

$

Not available

11

Simplicity 2161176SM

SPRING

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 1612-59

PLATE

$

$

Not available

13

Simplicity 927744

RING, Retaining

$

$

Not available

13

Simplicity 161260

RING, Retaining (990656 & 990869 Only)

$

$

Not available

14

Simplicity 170781

WHEEL & TIRE ASSY., R.H.

$

$

Not available

14

Simplicity 1656879

WHEEL & TIRE ASSY. (990656 Only)

$

$

Not available

14

Simplicity 161151

WHEEL & TIRE ASSY. (990869 Only)

$

$

Not available

15

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Simplicity 1918196SM

PIN, Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

18

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

19

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

20

Simplicity 161258

SUPPORT, Belt Cover

$

$

Not available

21

Simplicity 170755

COVER, Lower Belt

$

$

Not available

22

Simplicity 2819339

SCREW, Self Tapping, 1/4-20 x 5/8

$

$

Not available

23

Simplicity 9287-03

NUT, Speed

$

$

Not available

24

Simplicity 932851

LOCKNUT, Conduit, 3/4

$

$

Not available

25

Simplicity 173012

SEAL, Cover

$

$

Not available

26

Simplicity 928700

NUT, Speed

$

$

Not available

27

Simplicity 106586

BRACKET, Cover

$

$

Not available

28

Simplicity 928702

NUT, Speed

$

$

Not available

29

Simplicity 106602

SEAL, Cover

$

$

Not available

30

Simplicity 106585

COVER

$

$

Not available

31

Simplicity 106578

BOLT, Hood

$

$

Not available

32

Simplicity 171294

BRACE, Hood

$

$

Not available

33

Simplicity 2828701

NUT, Retainer, 5/16-18

$

$

Not available

34

Simplicity 2828693

SCREW, Thumb, 5/16-18 x 3/4

$

$

Not available

35

Simplicity 106582

GASKET, Felt

$

$

Not available

36

ENGINE, 5, 6 & 7 HP, Briggs & Stratton, Model 92905, Type 1108-01

$

$

Not available

37

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

38

Simplicity 170756

COVER, Top Belt

$

$

Not available

39

Simplicity 2821958

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$

$

Not available

40

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

41

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

42

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

43

Simplicity 2108300

V-BELT (Auger Drive)

$

$

Not available

44

Simplicity 2170771SM

V-BELT (Transmission Drive)

$23.99

$

Usually ships in 2-12 days

0

45

Simplicity 2821370

CAPSCREW, Hex Hd., 1/2-20 x 1

$

$

Not available

46

Simplicity 2809589

LOCKWASHER, Int., 1/2

$

$

Not available

47

Simplicity 161271

GUIDE, Rod

$

$

Not available

48

Simplicity 2159129

KEY

$

$

Not available

49

Simplicity 173941

PULLEY, Engine

$

$

Not available

50

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

51

Simplicity 171063

STOP, Belt

$

$

Not available

52

Simplicity 171441

TUBE

$

$

Not available

53

Simplicity 171684

CLAMP, Tube

$

$

Not available

54

Simplicity 2805850SM

KEY (990643 & 990796 Only)

$2.49

$

Usually ships in 2-12 days

0

55

Simplicity 1612-04

STUD (990643 & 990796 Only)

$

$

Not available

56

Simplicity 2118252SM

WASHER, Special (990656, 990869 & 990870 Only)

$4.49

$

In Stock, Qty 10

0

57

Simplicity 930529

SCREW, Machine, #10-32 x 3

$

$

Not available

58

Simplicity 170778

WHEEL & TIRE ASSY., L.H.

$

$

Not available
