1030 (133B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 10.5 HP Oil Fill Group and Air Cleaner Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

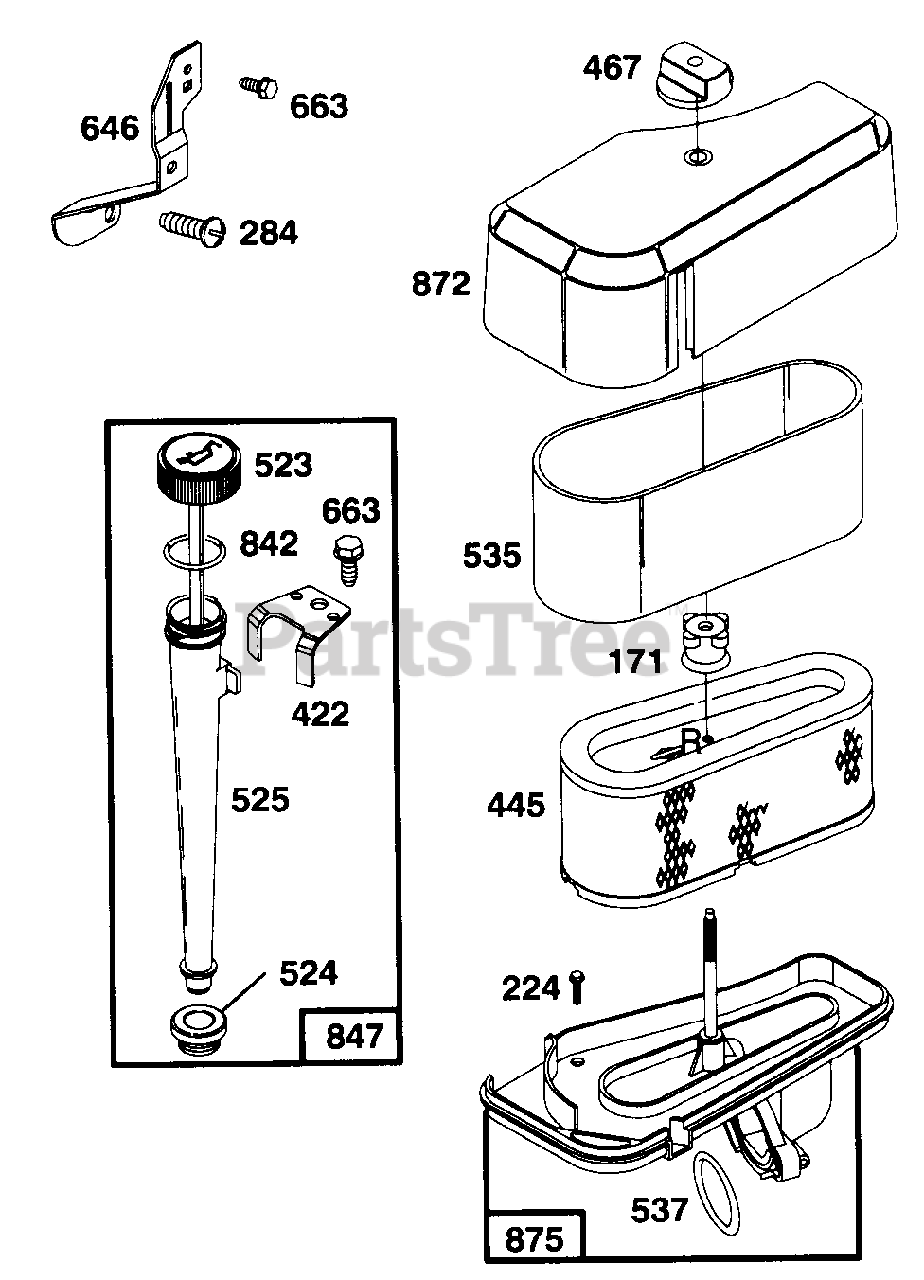

B&S 10.5 HP Oil Fill Group and Air Cleaner Ass'y Parts Diagram

  • Title

171

Cub Cadet BS-281051

Nut--Air Cleaner Mtg.
(Superseded to BS-691668)

$5.49

$

In Stock, only 4 left!

0

224

Cub Cadet BS-94513

Screw--Air Cleaner Sem
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

284

Cub Cadet BS-94326

Screw--Pan Head

$

$

Currently unavailable

422

Cub Cadet BS-223394

Clamp--Oil Filler Tube
(Superseded to BS-690593)

$11.99

$

In Stock, only 4 left!

0

445

Cub Cadet BS-493910

Cartridge--Air Cleaner
(Superseded to BS-691667)

$26.99

$

In Stock, Qty 15

0

467

Cub Cadet BS-493903

Knob--Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-495229

Cap and Dipstick--Oil Filler

$

$

Not available

524

Cub Cadet BS-68838

Seal--Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280134

Tube--Oil Filler

$28.99

$

In Stock, only 1 left!

0

535

Cub Cadet BS-272477

Element--Air Cleaner
(Superseded to BS-272477S)

$4.49

$

In Stock, Qty 20+

0

537

Cub Cadet BS-281106

O-Ring--Air Cleaner
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

646

Cub Cadet BS-224546

Brace--Air Cleaner

$

$

Not available

663

Cub Cadet BS-94620

Screw--Hex Hd.
(Superseded to BS-691693)

$3.99

$

In Stock, only 1 left!

0

842

Cub Cadet BS-270920

Seal--Oil Filler Cap
(Superseded to BS-691870)

$4.49

$

In Stock, only 2 left!

0

847

Cub Cadet BS-392067

Fill Group--Oil

$47.99

$

Usually ships in 2-12 days

0

872

Cub Cadet BS-281105

Cover--Air Cleaner
(Superseded to BS-691324)

$55.99

$

In Stock, only 1 left!

0

875

Cub Cadet BS-494827

Body--Air Cleaner

$

$

Not available

Cub Cadet BS-493263

Gasket Set

$

$

Not available
