1691526 - Simplicity Wide Body Cart Collector Wide Body Cart Collector - Tube & Hitch Group Parts Diagram

Wide Body Cart Collector

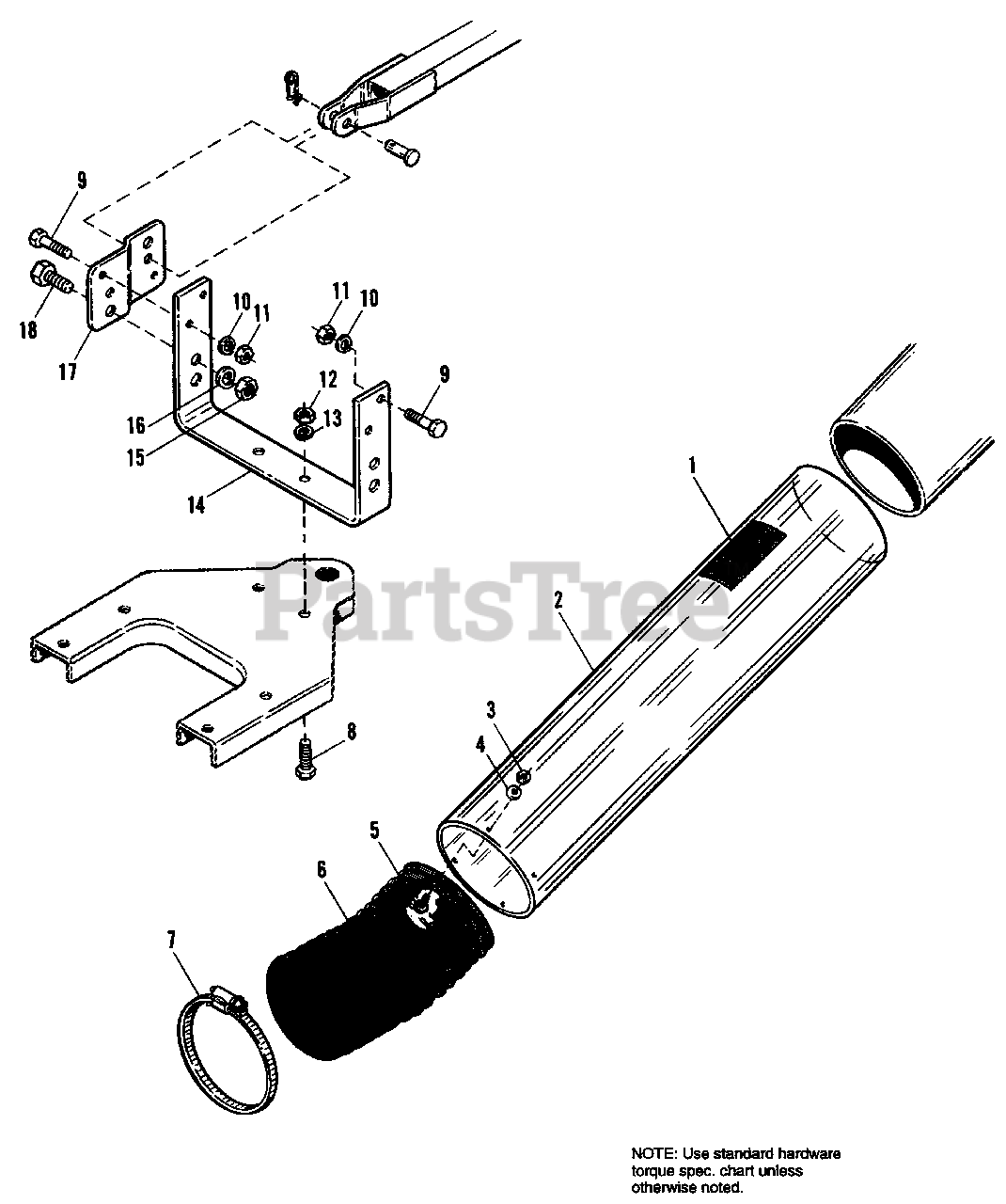

Wide Body Cart Collector - Tube & Hitch Group Parts Diagram

  • Title

1

Simplicity 1675766SM

DECAL, Cleaning Inst.

$

$

Not available

2

Simplicity 1700773SM

TUBE ASSY.
(Superseded to 1700774YP)

Note: (Incl. Ref. No. 1)

$231.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930627SM

NUT, Hex, Full, Lock, #10-32

$2.99

$

Usually ships in 2-12 days

0

4

Simplicity 1910531SM

WASHER, Plain, #10

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1930531SM

SCREW, Phillips, Truss Hd., #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1679895SM

HOSE

$164.99

$

Usually ships in 2-12 days

0

7

Simplicity 1679896SM

CLAMP, 6"

$11.99

$

In Stock, only 1 left!

0

8

Simplicity 1921176SM

CAPSCREW, Hex, 1/2-13 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1921212SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 1918213SM

NUT, Hex, Full, 7/16

$4.99

$

In Stock, only 2 left!

0

12

Simplicity 1916951SM

NUT, Hex, Full, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

13

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1675645SM

BRACKET, Hitch

Note: (Frame)

$

$

Not available

15

Simplicity 1915726SM

NUT, Hex, Full, 5/8
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

16

Simplicity 1917373SM

LOCKWASHER, 5/8

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1700674SM

BRACKET, Hitch

Note: (Cart)

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923151SM

CAPSCREW, Hex Hd., 5/8-11 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0
