1696425-00 - Simplicity 42" Snow Thrower Attachment Body & Rotor Group (991302) Parts Diagram

42" Snow Thrower Attachment

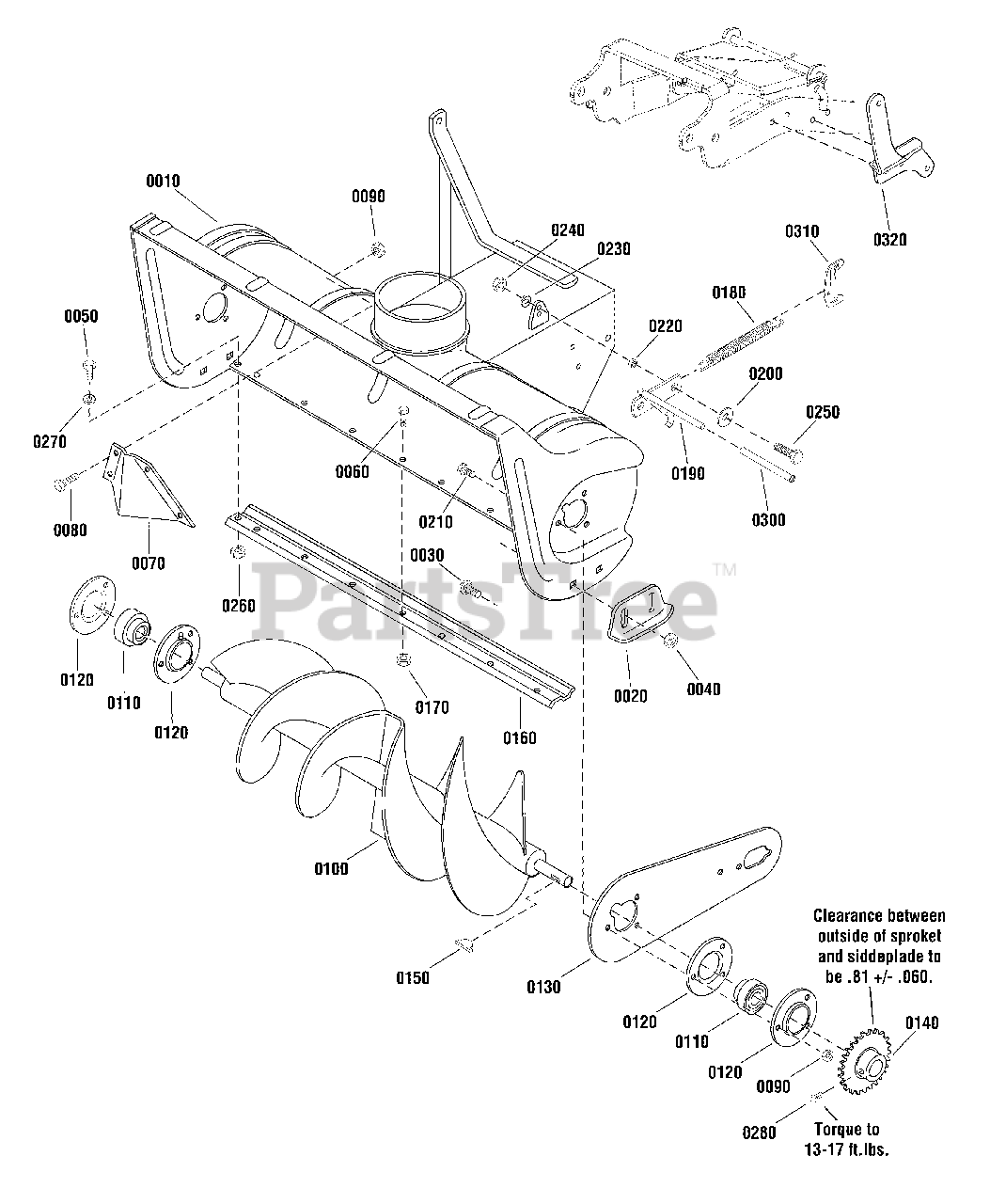

Body & Rotor Group (991302) Parts Diagram

  • Title

0010

Simplicity 1734372AYP

BODY & FRAME ASSEMBLY

$948.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1713424ASM

SKID & WEAR ASSEMBLY

$54.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703448

BOLT, Carriage 3/8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 19

0

0060

Simplicity 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0070

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703822

CAPSCREW, Hex Head, 5/16-18 x 5/8

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 703465

NUT, Hex, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 704067

NUT, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 1721840ASM

ROTOR ASSEMBLY

$817.99

$

In Stock, only 1 left!

0

0110

Simplicity 1709624SM

BEARING, W/Lock Collar

$60.99

$

In Stock, only 2 left!

0

0120

Simplicity 2172278ASM

BEARING, Flange

$11.99

$

In Stock, only 2 left!

0

0130

Simplicity 1676632ASM

PLATE, Side

$44.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1756390AYP

SPROCKET, 24 Teeth
(Superseded to 1756390YP)

$81.99

$

Usually ships in 2-12 days

0

0150

Simplicity 2151040SM

KEY, Hi Pro

$9.49

$

In Stock, only 2 left!

0

0160

Simplicity 2106746ASM

BLADE, Scraper, 42"

$158.99

$

In Stock, only 1 left!

0

0170

Simplicity 703954

NUT, Hex Centerlock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0180

Simplicity 1675232SM

SPRING, Extension

$20.99

$

In Stock, only 1 left!

0

0190

Simplicity 1723280ASM

LEVER, Spring Assist-Assembly

$36.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703591

WASHER, Flat

$5.49

$

In Stock, Qty 16

0

0210

Simplicity 703408

CAPSCREW, Hex Head, 5/16-18 x 7/8

$4.99

$

In Stock, Qty 20+

0

0220

Simplicity 1611705SM

SPACER, 3/8

$4.49

$

In Stock, only 2 left!

0

0230

Simplicity 703454

LOCKWASHER, Split, 3/8

$3.49

$

In Stock, Qty 11

0

0240

Simplicity 703577

NUT, Hex, 3/8-16

$4.49

$

In Stock, Qty 12

0

0250

Simplicity 703871

CAPSCREW, Hex Head, 3/8-16 x 1 1/4

$4.99

$

In Stock, only 2 left!

0

0260

Simplicity 703164

NUT, Hex, 5/16-18

$3.49

$

In Stock, Qty 10

0

0270

Simplicity 1919326SM

WASHER, Flat

$4.49

$

In Stock, Qty 18

0

0280

Simplicity 1928721SM

SCREW, Set, Square Head, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

0300

Simplicity 2176934SM

GRIP

$3.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1724641ASM

ANCHOR, Spring

$8.49

$

Usually ships in 2-12 days

0

0320

Simplicity 1757251AYP

Bracket, Spring Assist

$57.99

$

Usually ships in 2-12 days

0
