2622 (2690971-02) - Massey Ferguson 44" Lawn Tractor, 22hp Engine Group - 22 Gross HP Briggs & Stratton Parts Diagram

44" Lawn Tractor, 22hp

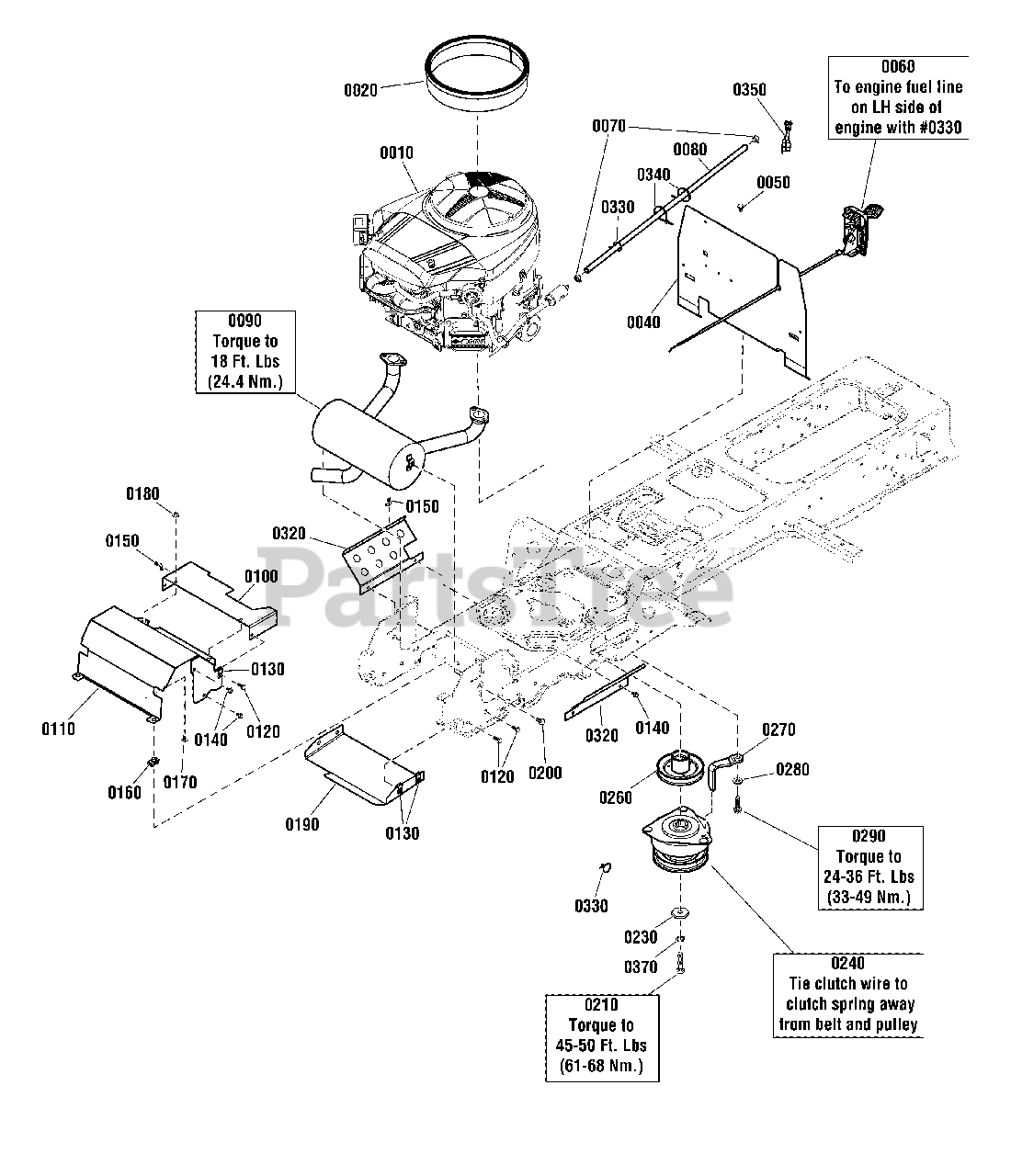

Engine Group - 22 Gross HP Briggs & Stratton Parts Diagram

  • Title

0010

Simplicity 40H777-5136-G5

* ENGINE, 22 Gross HP Briggs & Stratton, Twin

Note: (Engine Model: 40H777-5136-G5)

$

$

Not available

0020

Simplicity 1734166SM

EDGING, Engine

$21.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1755854AYP

FIREWALL, Engine

$92.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 1754915YP

THROTTLE

$59.99

$

In Stock, only 1 left!

0

0070

Simplicity 93053B

CLAMP, Hose

$

$

Not available

0080

Simplicity 199086X46YP

HOSE, Fuel

$16.99

$

In Stock, only 1 left!

0

0090

Simplicity 1721706SM

MUFFLER

$231.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1722390ASM

DUCT, Muffler

$12.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1722389ASM

DUCT, Muffler, Top

$80.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1960295SM

SCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1960368SM

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

0140

Simplicity 1927428SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

0150

Simplicity 703176

CLIP, Wire

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, Qty 6

0

0170

Simplicity 5025299X4SM

SCREW, Allen Head, 1/4-20 x 1/2

$4.99

$

In Stock, only 4 left!

0

0180

Simplicity 5025126SM

NUT, Hex Flange, Serrated, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 1722414ASM

SHIELD, Muffler Bottom

$20.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

0210

Simplicity 1960648SM

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5

$6.49

$

Usually ships in 2-12 days

0

0230

Simplicity 1708264SM

WASHER, Hex, 0.453

$8.99

$

In Stock, Qty 7

0

0240

Simplicity 1757359YP

CLUTCH, Electric

$290.99

$

In Stock, only 1 left!

0

0260

Simplicity 1739847YP

PULLEY, Engine

$42.99

$

In Stock, only 1 left!

0

0270

Simplicity 1737420AYP

GUIDE, Belt, Short, 2.27"

$12.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 704010

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2

$4.99

$

In Stock, only 2 left!

0

0320

Simplicity 1722392ASM

SHIELD, Side

$10.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0340

Simplicity 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0350

Simplicity 1737462YP

HARNESS, Jumper, 4"

$9.99

$

In Stock, only 1 left!

0

0370

Simplicity 1918199SM

WASHER, Lock, .453
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0
