2691240-00 - Simplicity Regent S 48" Lawn Tractor, 25hp Briggs & Stratton Frame & Front Axle Group Parts Diagram

Regent S 48" Lawn Tractor, 25hp Briggs & Stratton

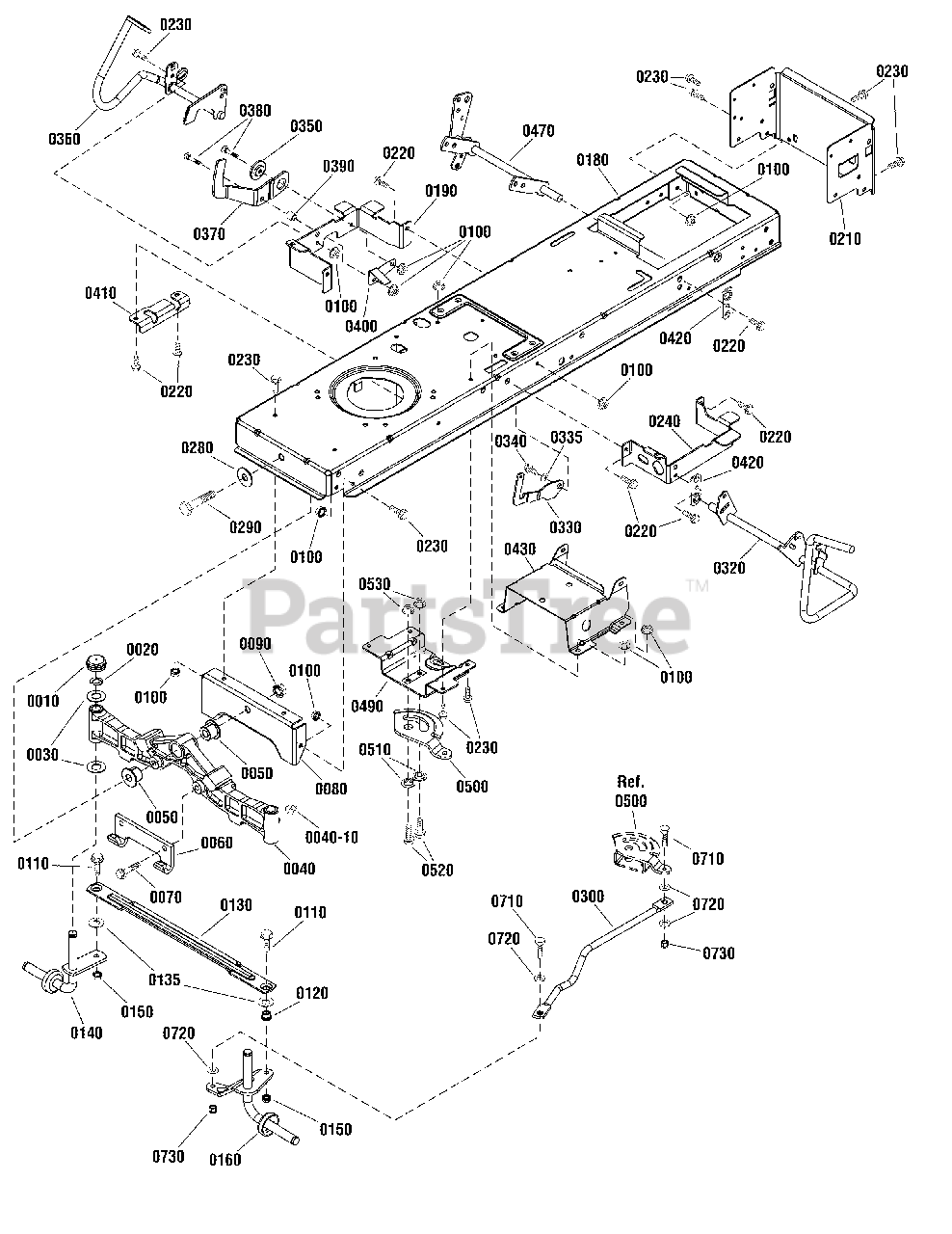

Frame & Front Axle Group Parts Diagram

  • Title

0010

Simplicity 1734135SM

CAP, Hub

$5.99

$

In Stock, Qty 11

0

0020

Simplicity 1611710SM

RING, Klipring Extension

$4.49

$

In Stock, Qty 16

0

0030

Simplicity 1960160SM

WASHER, 3/4

$4.99

$

In Stock, Qty 20+

0

0040

Simplicity 1728018SM

AXLE, Front
(Superseded to 1756386YP)

$185.99

$

In Stock, only 1 left!

0

0040-10

Simplicity 1704314SM

FITTING, Zerk
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0050

Simplicity 1730186SM

BUSHING, Axle Pivot

$6.99

$

In Stock, only 2 left!

0

0060

Simplicity 1721918ASM

HOOK, "J"

$31.99

$

In Stock, only 2 left!

0

0070

Simplicity 1960652SM

CAPSCREW, Hex Whizlock Flange, 7/16-14 x 1-1/2

$5.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1727902ASM

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

0090

Simplicity 2860646SM

NUT, Hex Flange Two-Way Lock, 5/8-11

$10.99

$

In Stock, Qty 8

0

0100

Simplicity 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Simplicity 1960032SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, .141 Thread G5

$5.49

$

In Stock, Qty 9

0

0120

Simplicity 1731912SM

BUSHING, Powdered Metal

$4.49

$

In Stock, Qty 7

0

0130

Simplicity 1751964BMYP

TIE ROD, 1/4" extrusion

$32.99

$

In Stock, only 1 left!

0

0135

Simplicity 1960703SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

0140

Simplicity 1727872ASM

SPINDLE & CUP ASSEMBLY, RH

$98.99

$

In Stock, Qty 6

0

0150

Simplicity 1930645SM

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Simplicity 1751922YP

WHEEL SPINDLE ASSEMBLY, LH

$109.99

$

Usually ships in 2-12 days

0

0180

*FRAME

$

$

Not available

0190

Simplicity 1727904ASM

SUPPORT, Front Footrest R.H.
(Superseded to 1759842BMYP)

$39.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1758690YP

SUPPORT, Rear Frame

$36.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0230

Simplicity 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0240

Simplicity 885536YP

SUPPORT, Front Footrest L.H.

$23.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1960035SM

WASHER, Flat, 5/8

$4.49

$

In Stock, Qty 13

0

0290

Simplicity 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3-1/4 G5

$8.49

$

Usually ships in 2-12 days

0

0300

Simplicity 1738051YP

LINK, Drag, with Bearing, 5/16

$60.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1736404AYP

PEDAL ASSEMBLY, Brake
(Superseded to 772383)

$98.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1735595ASM

LATCH, Brake Lock

$10.99

$

In Stock, only 1 left!

0

0335

Simplicity 7014296YP

WASHER, Shim

$4.49

$

In Stock, Qty 10

0

0340

Simplicity 1729576SM

BOLT, Shoulder, 5/16-18 x 1-1/8
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0350

Simplicity 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 4 left!

0

0360

Simplicity 1736714AYP

PEDAL ASSEMBLY, Forward

$89.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1727246SM

PEDAL, Reverse

$20.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1960223SM

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

Usually ships in 2-12 days

0

0390

Simplicity 1728024SM

SPACER, Foot Pedal

$4.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1728025BMYP

ACTUATOR, RMO Switch

$6.49

$

Usually ships in 2-12 days

0

0410

Simplicity 885491YP

BRACKET, Pedal Pivot

$

$

Not available

0420

Simplicity 1727911ASM

PLATE, Bearing

$12.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1727282ASM

SUPPORT, Battery
(Superseded to 1727282SM)

$30.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1727951ASM

LIFT SHAFT ASSEMBLY
(Superseded to 1737957YP)

$59.99

$

In Stock, Qty 5

0

0490

Simplicity 1727940SM

BRACKET, Sector Support

$

$

Not available

0500

Simplicity 1751110YP

GEAR, Steering, 3/8

$34.99

$

In Stock, Qty 13

0

0510

Simplicity 1728122SM

SPACER, Sector Gear

$5.49

$

In Stock, Qty 20+

0

0520

Simplicity 1934654SM

SCrew, Hex Flange, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 15

0

0530

Simplicity 1931211SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0710

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 703570)

$4.99

$

In Stock, Qty 9

0

0720

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0730

Simplicity 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+
