WV 190 S - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: E06542 - H07101) WV160S & WV190S Drive (Self-Propelled) (SN: F01509 - H07101) Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

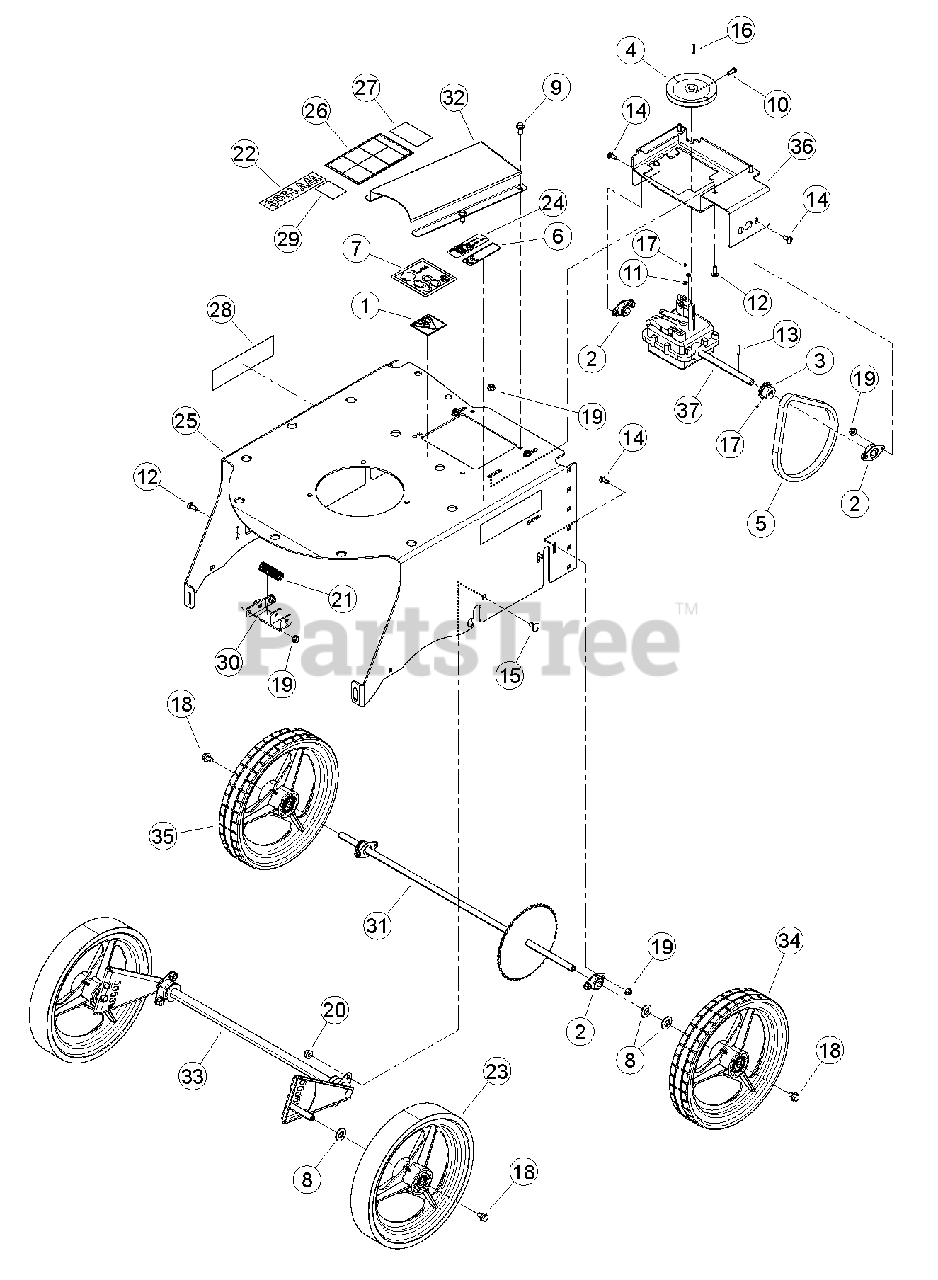

WV160S & WV190S Drive (Self-Propelled) (SN: F01509 - H07101) Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12574

BEARING, 1/2 FLANGE

$21.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13853-00

SPROCKET, BEARVAC 35B10

$54.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13854-00

PULLEY, 4 O.D. X 12MM BORE

$89.99

$

Usually ships in 3-7 days

0

5

Bear Cat 13871-00

CHAIN, #35 X 62 PITCH W/ CONN. LINK

$27.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14020-00

DECAL, 6HP SP BEARVAC INFORMATION (WV190S ONLY)

$17.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14182-00

DECAL, 98 DB (WV190S ONLY)

$12.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

9

15176

SCREW, 11/32-12 X 7/8 HWH T-AB

$

$

Not available

10

15180

SET SCREW, 1/4 X 5/8 SQ HD

$

$

Not available

11

Bear Cat 15209

WASHER, #8 SAE

$

$

Not available

12

15238

BOLT, 1/4 X 3/4 GR5 CRG ZP

$

$

Not available

13

15266

PIN, 1/8 X 7/8" SPRING

$

$

Not available

14

Bear Cat 15348

BOLT, 1/4 X 5/8 GR5 CRG NC ZP

$

$

Not available

15

15359

BOLT, 5/16 X 5/8 GR5 CRG ZP

$

$

Not available

16

Bear Cat 15598

KEY, 4MM SQ X 20 MM

$2.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15680-00

SCREW, #8-32 X 3/16 KNR CUP PT

$1.49

$

Usually ships in 3-7 days

0

18

Bear Cat 15854-00

BOLT, 5/16-18 X 1/2 G5 HH SR/FLN

$1.49

$

Usually ships in 3-7 days

0

19

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

20

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

21

17257

SPRING, LC-072J06S COMPRESSION

$

$

Not available

22

Bear Cat 18940-00

DECAL, MODEL WV190S

$11.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36680-00

DECAL, MODEL WV160S

$27.99

$

Usually ships in 3-7 days

0

23

Bear Cat 31337-00

ASSEMBLY, WHEEL BEARVAC PUSH

$129.99

$

Usually ships in 3-7 days

0

24

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (WV190S ONLY)

$9.99

$

Usually ships in 3-7 days

0

25

Bear Cat 70751-00

ASSEMBLY, SELF VAC HOUSING W/ DECALS

Note: (INCLUDES ITEMS 26-29)

$372.99

$

Usually ships in 3-7 days

0

26

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

27

Bear Cat 13890-00

DECAL, DANGER

$9.49

$

Usually ships in 3-7 days

0

28

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

29

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

30

Bear Cat 73623-12

WELDMENT, BEARVAC HEIGHT ADJ.

$

$

Not available

31

Bear Cat 73634-12

WELDMENT, SP LONG AXLE

$135.99

$

Usually ships in 3-7 days

0

32

Bear Cat 73642-12

GUARD, BEARVAC BELT

$65.99

$

Usually ships in 3-7 days

0

33

Bear Cat 75532-12

WELDMENT, AXLE PIVOT

$

$

Not available

34

Bear Cat 76691-00

WHEEL, BEARVAC SP LEFT

$223.99

$

Usually ships in 3-7 days

0

35

Bear Cat 76692-00

WHEEL, BEARVAC SP RIGHT

$223.99

$

Usually ships in 3-7 days

0

36

77746-12

WELDMENT, TRANSMISSION MOUNT

$

$

Not available

37

Bear Cat 77749-00

TRANSMISSION, 3 SP. BEARVAC

$301.99

$

Usually ships in 3-7 days

0
