Simplicity 1677131ASM Spindle And Lever Assembly, Rh Lancer Lh - image 1
1 / 2

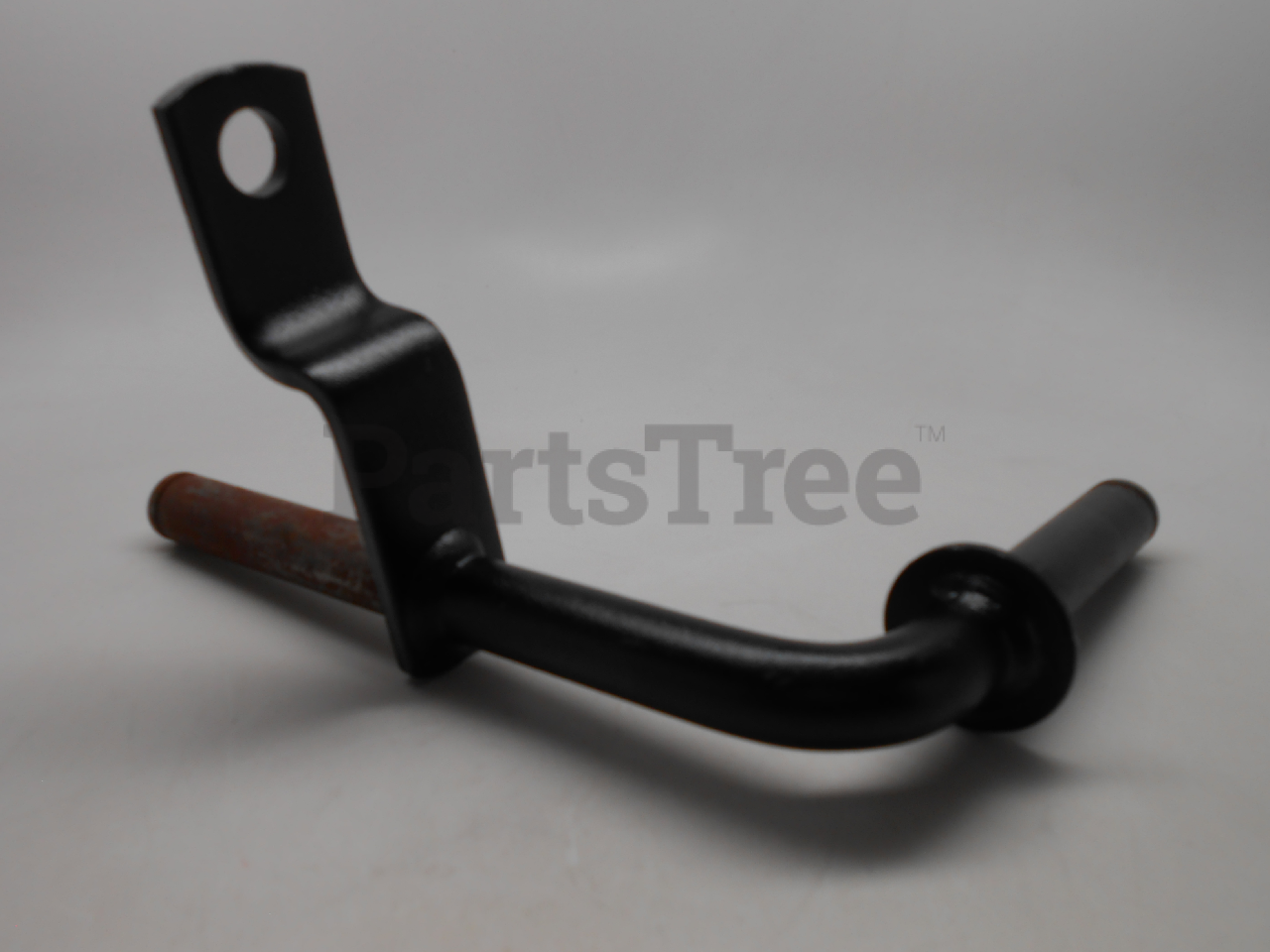

  • Simplicity 1677131ASM Spindle And Lever Assembly, Rh Lancer Lh - image 1

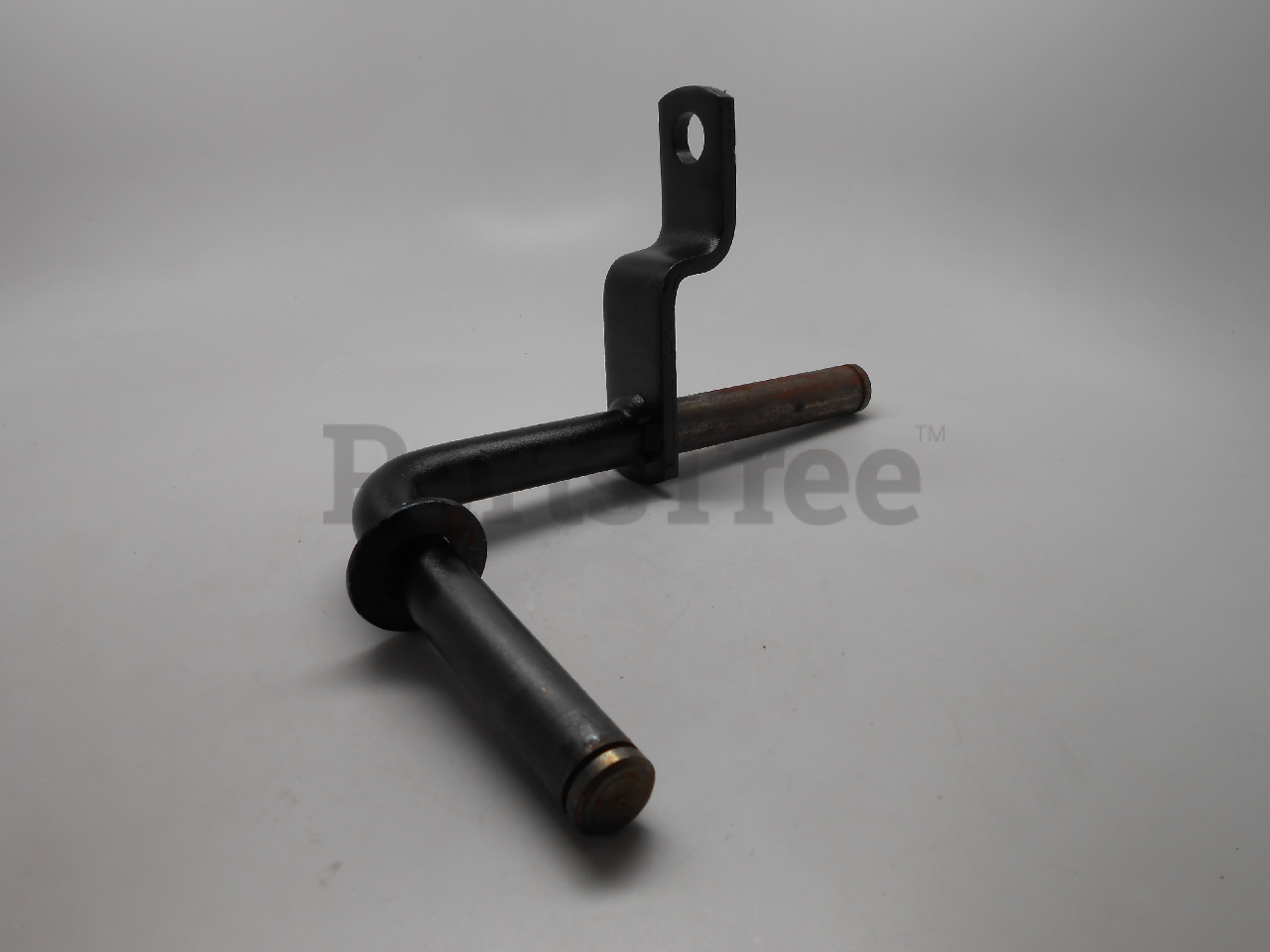

  • Simplicity 1677131ASM Spindle And Lever Assembly, Rh Lancer Lh - image 2

Simplicity 1677131ASM Spindle And Lever Assembly, Rh Lancer Lh

Unavailable
Does this fit my product?

Compatibility

This part will fit the following 8 machines. Confirm this part works with your model, and view the detailed model diagrams and repair help we have to offer.

Simplicity 4212 G (1691251) - Simplicity 36" Lawn Tractor, 12hp
SimplicitySimplicity 4212 G (1691251) - Simplicity 36" Lawn Tractor, 12hpFront Axle Group
Simplicity 6512.5 H (1691468) - Simplicity Garden Tractor, 12.5hp
SimplicitySimplicity 6512.5 H (1691468) - Simplicity Garden Tractor, 12.5hpFront Axle Group
AGCO 1816 H (1691769) - AGCO Garden Tractor, 16hp
AGCOAGCO 1816 H (1691769) - AGCO Garden Tractor, 16hpFront Axle Group
Simplicity 5216 H (1691060) - Simplicity 42" Lawn Tractor, 16hp
SimplicitySimplicity 5216 H (1691060) - Simplicity 42" Lawn Tractor, 16hpFront Axle Group
Simplicity 5212.5 G (1691429) - Simplicity Lawn Tractor, 12.5hp
SimplicitySimplicity 5212.5 G (1691429) - Simplicity Lawn Tractor, 12.5hpFront Axle Group

Description

The purpose of the Spindle is to control the safe rotation of the mower blade during operation. The spindle is often made of aluminum on residential mowers and steel on commercial mower decks. Much like a shear pin in other applications, the spindle is designed to break if the blade hits a hard object to protect the deck shell from damage. Screws are required for installation and are usually sold separately. Most use self-tapping screws to create the threads when screwed into the holes in the spindle.
